Removal Procedure

  1. Remove coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  2. Remove the washer solvent container.
  3. Disconnect the washer hose(s).
  4. Remove the washer pump(s) from the washer solvent container.

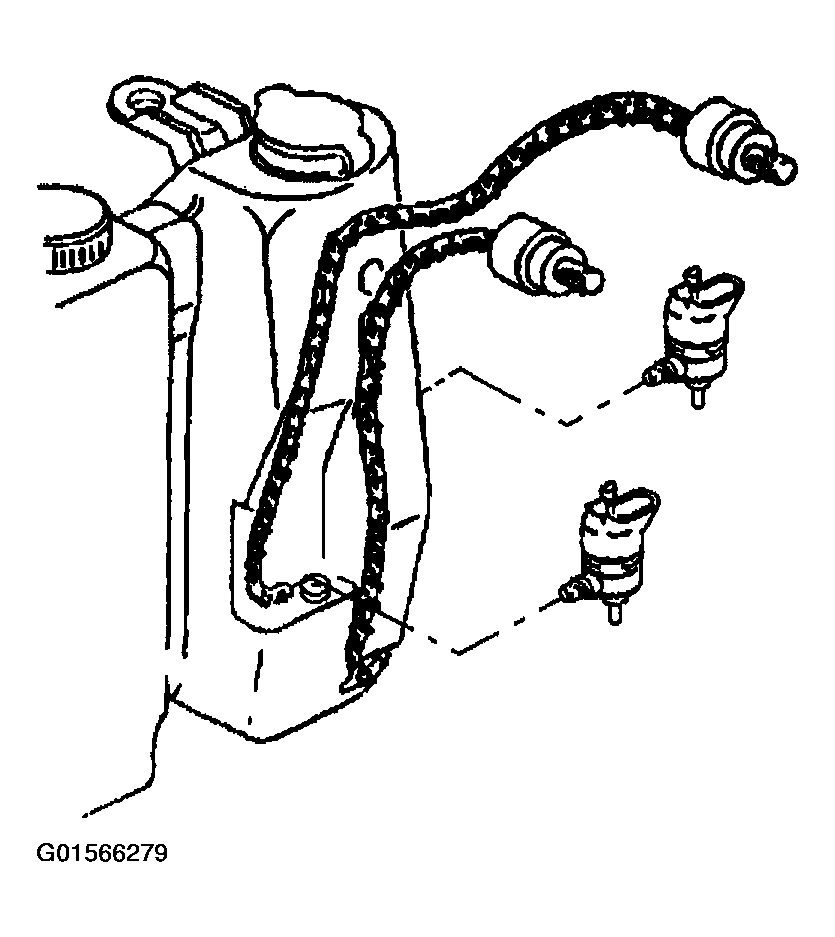

    Fig 1: Removing Washer Pump
    G01566279Courtesy of GENERAL MOTORS CORP.
