Installation Procedure

  1. Install the washer pump(s) in the washer solvent container.
  2. Connect the washer hose(s).
  3. Install the washer solvent container.
  4. Install the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.

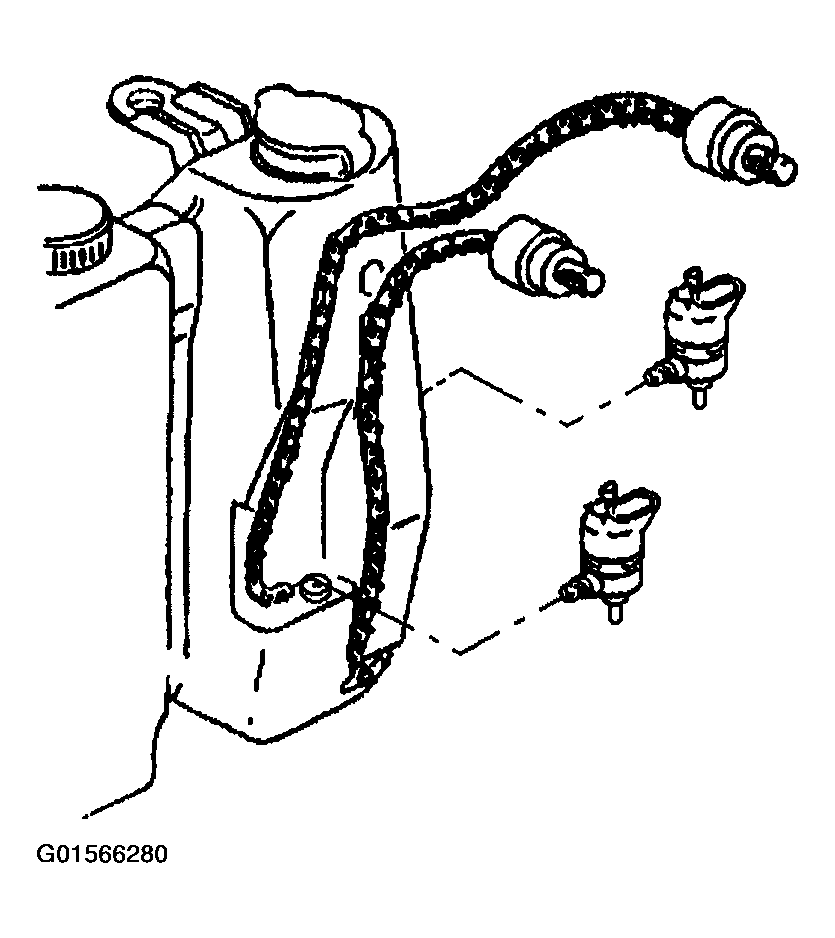

    Fig 1: Installing Washer Pump
    G01566280Courtesy of GENERAL MOTORS CORP.
