Removal Procedure

  1. Remove coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  2. Remove the washer solvent container.
  3. Remove the washer hose from the rear washer pump to the rear washer check valve.
  4. Remove the rear washer check valve.
  5. Remove the washer hose from the front washer pump to the front washer check valve.
  6. Remove the front washer check valve.

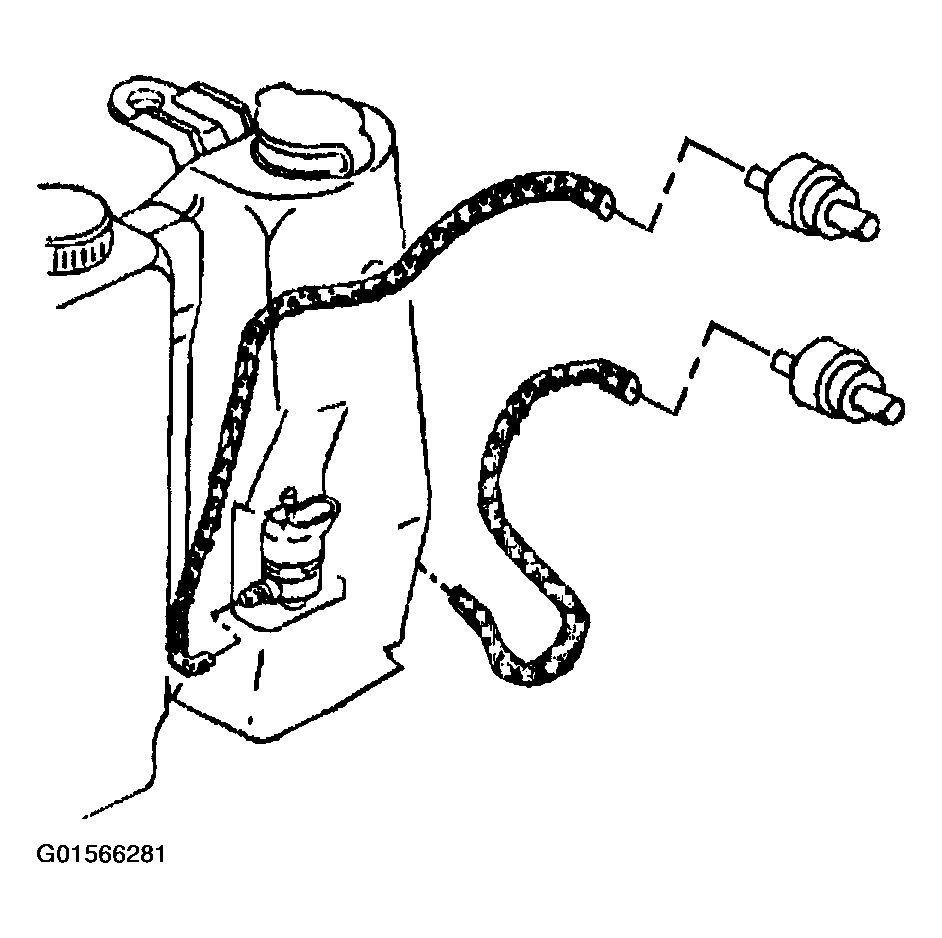

    Fig 1: Removing Washer Hose
    G01566281Courtesy of GENERAL MOTORS CORP.
  7. Remove the front washer hose and strap.

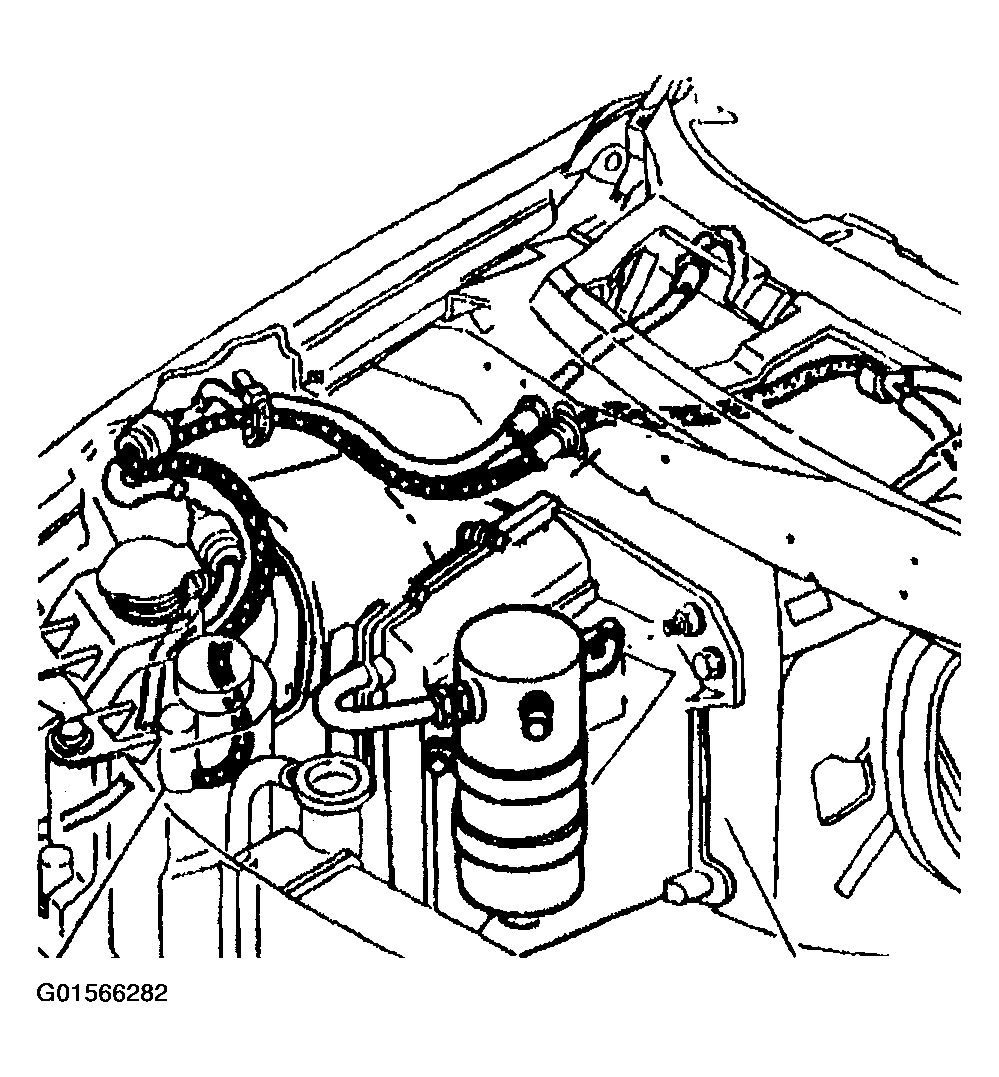

    Fig 2: Removing Front Washer Hose And Strap
    G01566282Courtesy of GENERAL MOTORS CORP.
  8. Remove the washer hose connector from the plenum clip.
  9. Remove the RH washer nozzle hose and hose clip.

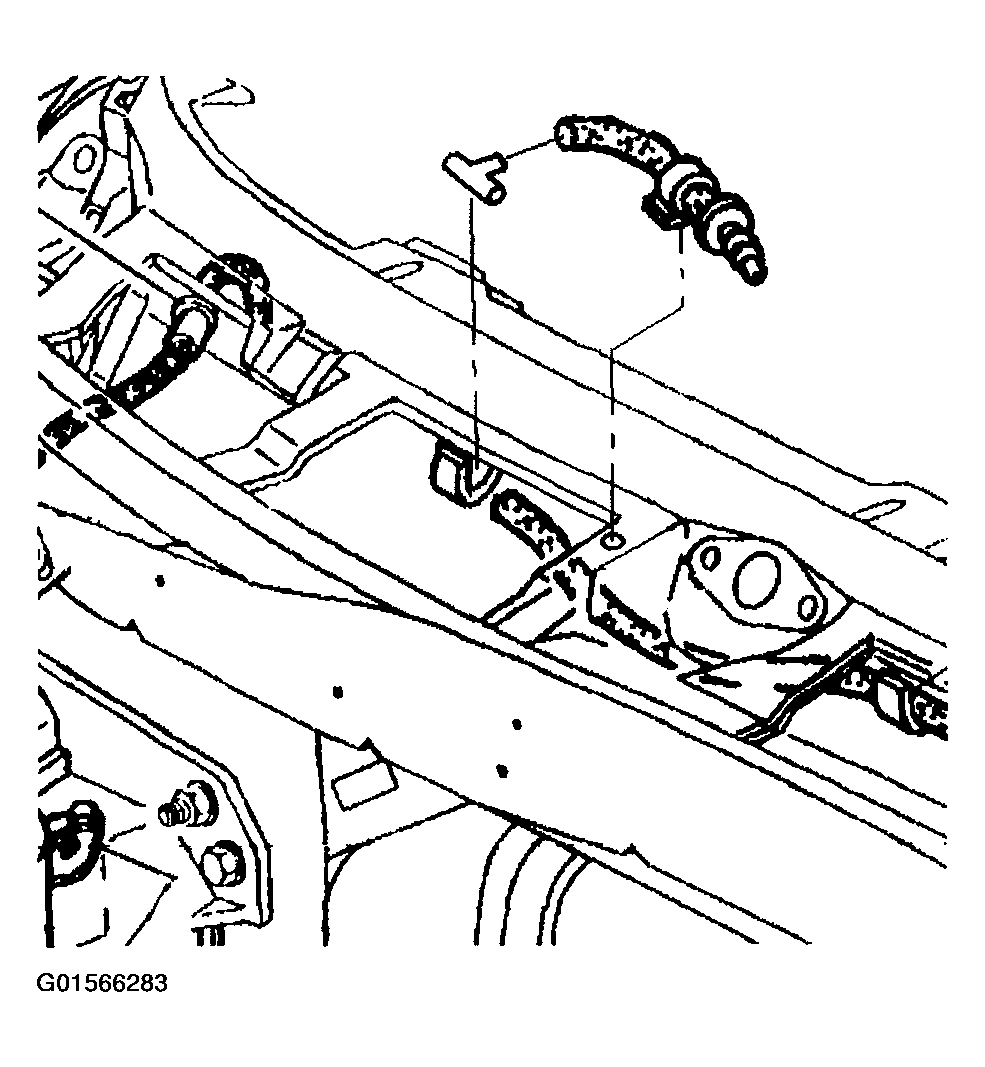

    Fig 3: Removing Washer Hose Connector
    G01566283Courtesy of GENERAL MOTORS CORP.
  10. Remove the LH washer nozzle hose from the 2 plenum clips.
  11. Remove the LH washer nozzle hose and hose clip.

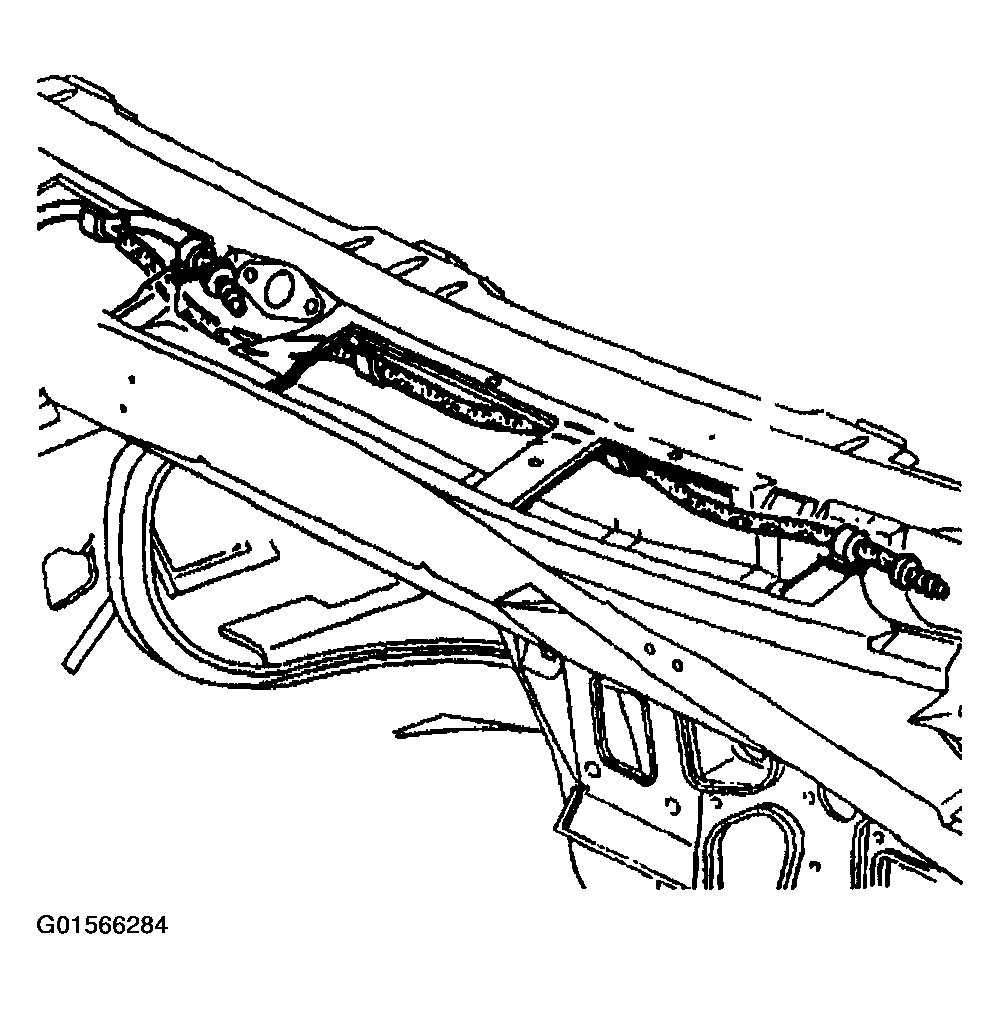

    Fig 4: Removing LH Washer Nozzle Hose And Hose Clip
    G01566284Courtesy of GENERAL MOTORS CORP.
