Installation Procedure

  1. Install the LH washer nozzle hose with the hose clip.
  2. Install the LH washer nozzle hose in the 2 plenum clips.

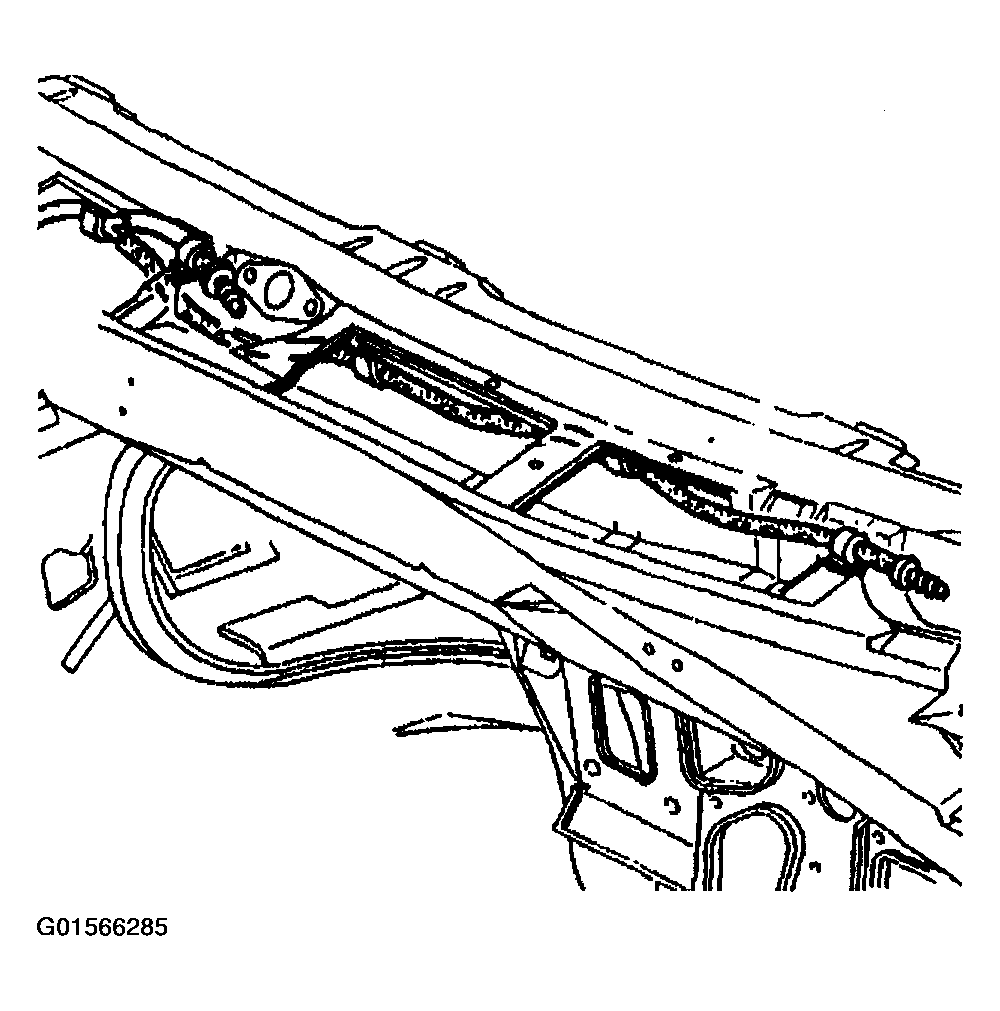

    Fig 1: Installing LH Washer Nozzle Hose
    G01566285Courtesy of GENERAL MOTORS CORP.
  3. Install the RH washer nozzle hose with the hose clip.
  4. Install the washer hose connector in the plenum clip.

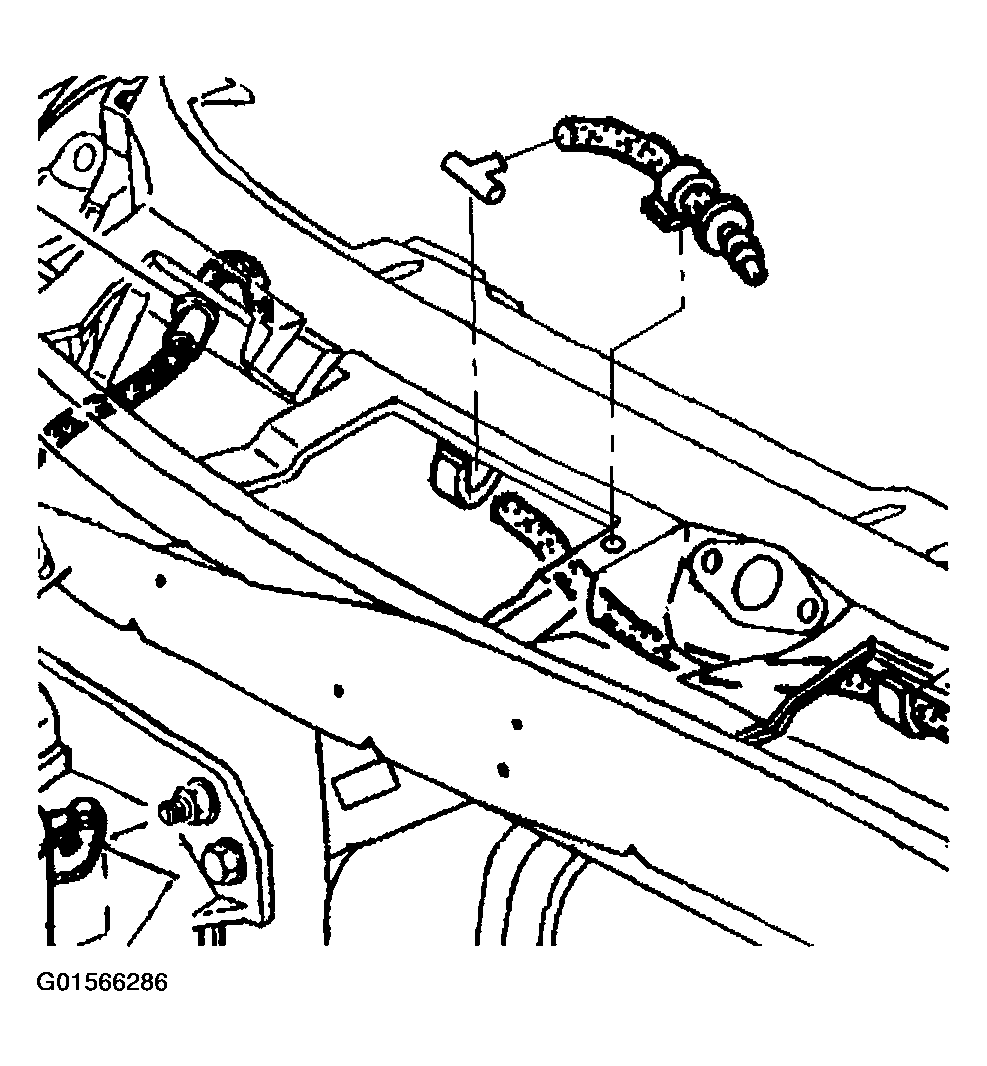

    Fig 2: Installing RH Washer Nozzle Hose
    G01566286Courtesy of GENERAL MOTORS CORP.
  5. Install the front washer hose and strap.

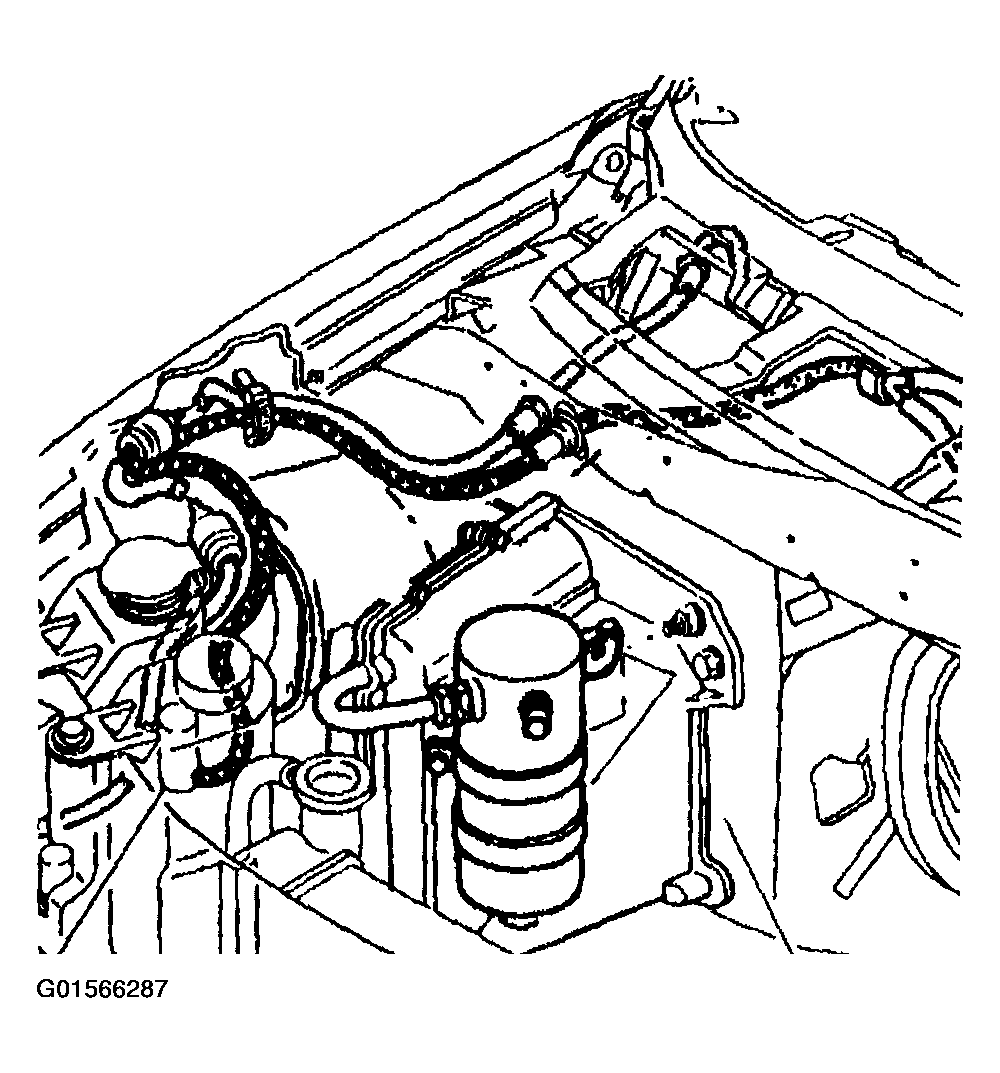

    Fig 3: Installing Front Washer Hose And Strap
    G01566287Courtesy of GENERAL MOTORS CORP.
  6. Install the front washer check valve.
  7. Install the washer hose from the front washer pump to the front washer check valve.
  8. Install the rear washer check valve.
  9. Install the washer hose from the rear washer pump to the rear washer check valve.
  10. Install the washer solvent container.
  11. Install the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.

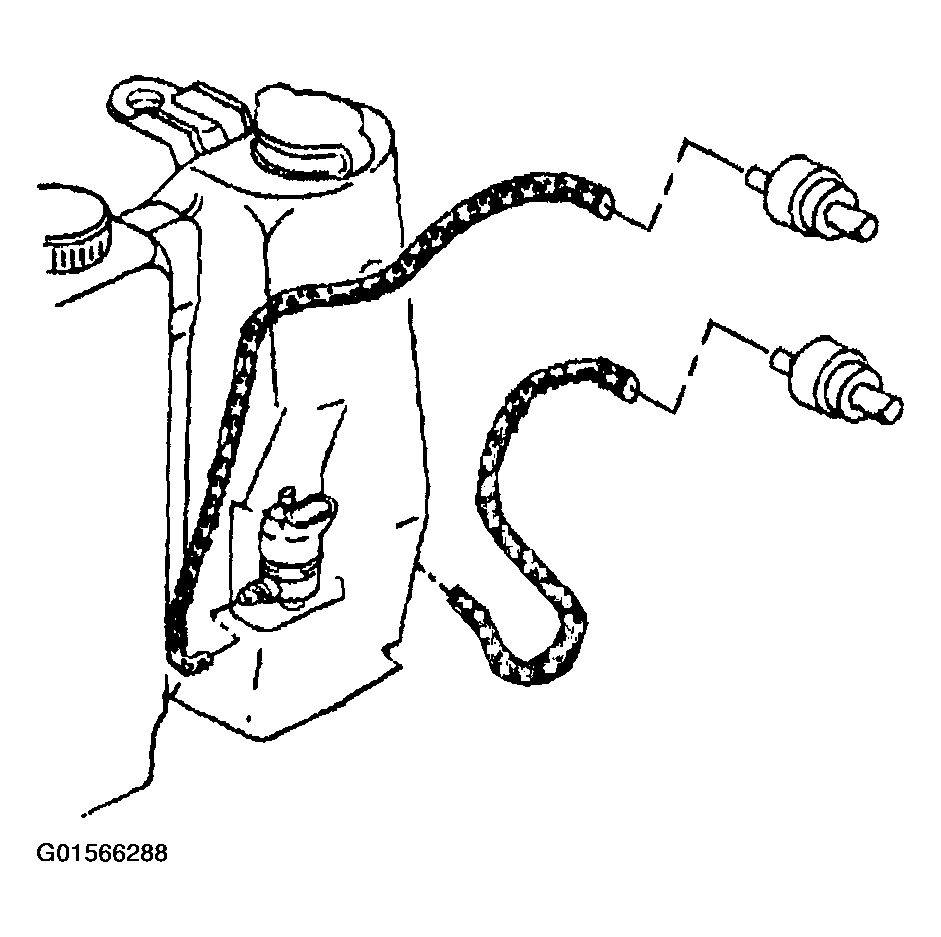

    Fig 4: Installing Washer Solvent Container
    G01566288Courtesy of GENERAL MOTORS CORP.
