Wipers Inoperative - All Modes

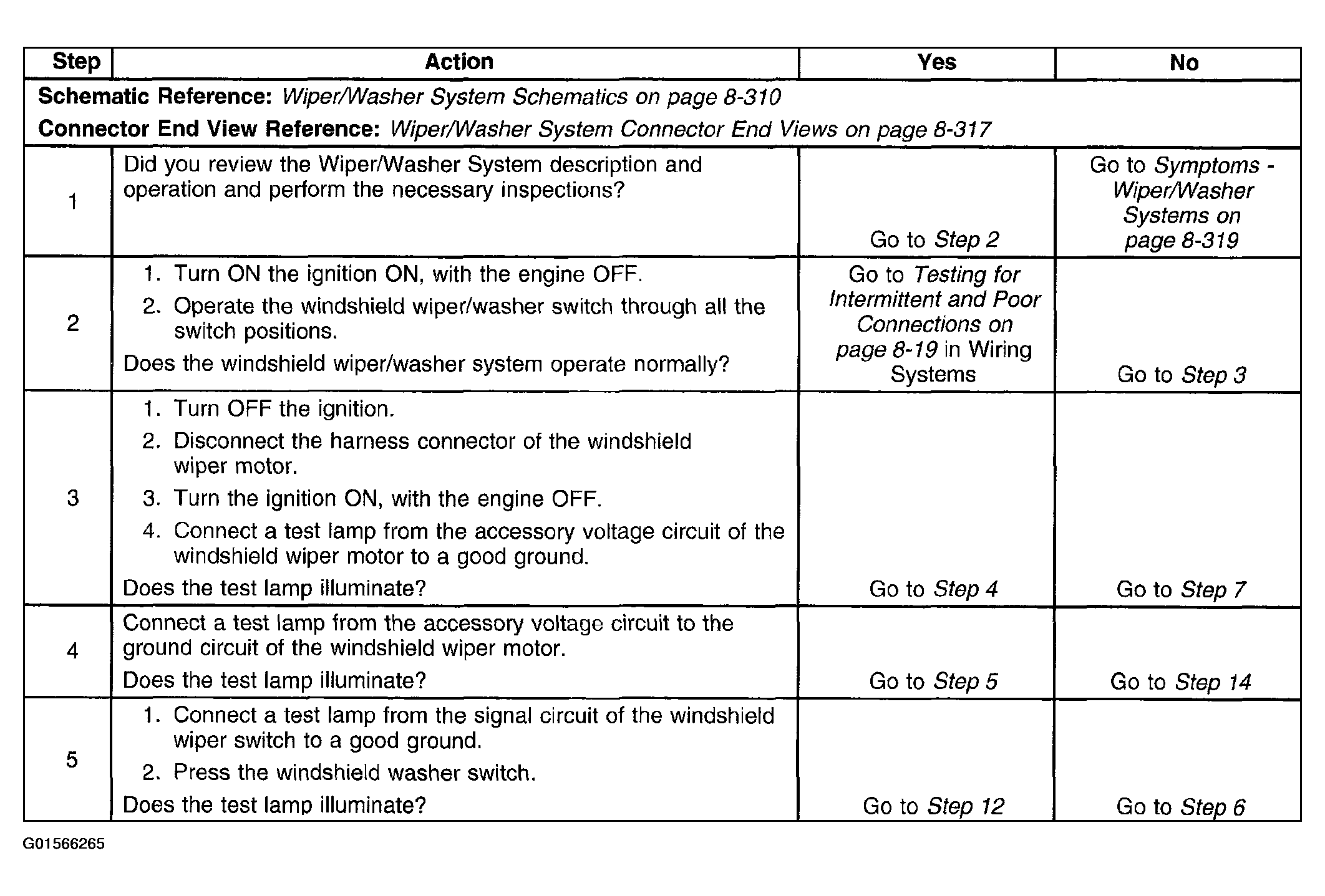

Fig 1: Diagnostic Procedure (Wipers Inoperative - All Modes) (1 Of 2)
G01566265Courtesy of GENERAL MOTORS CORP.

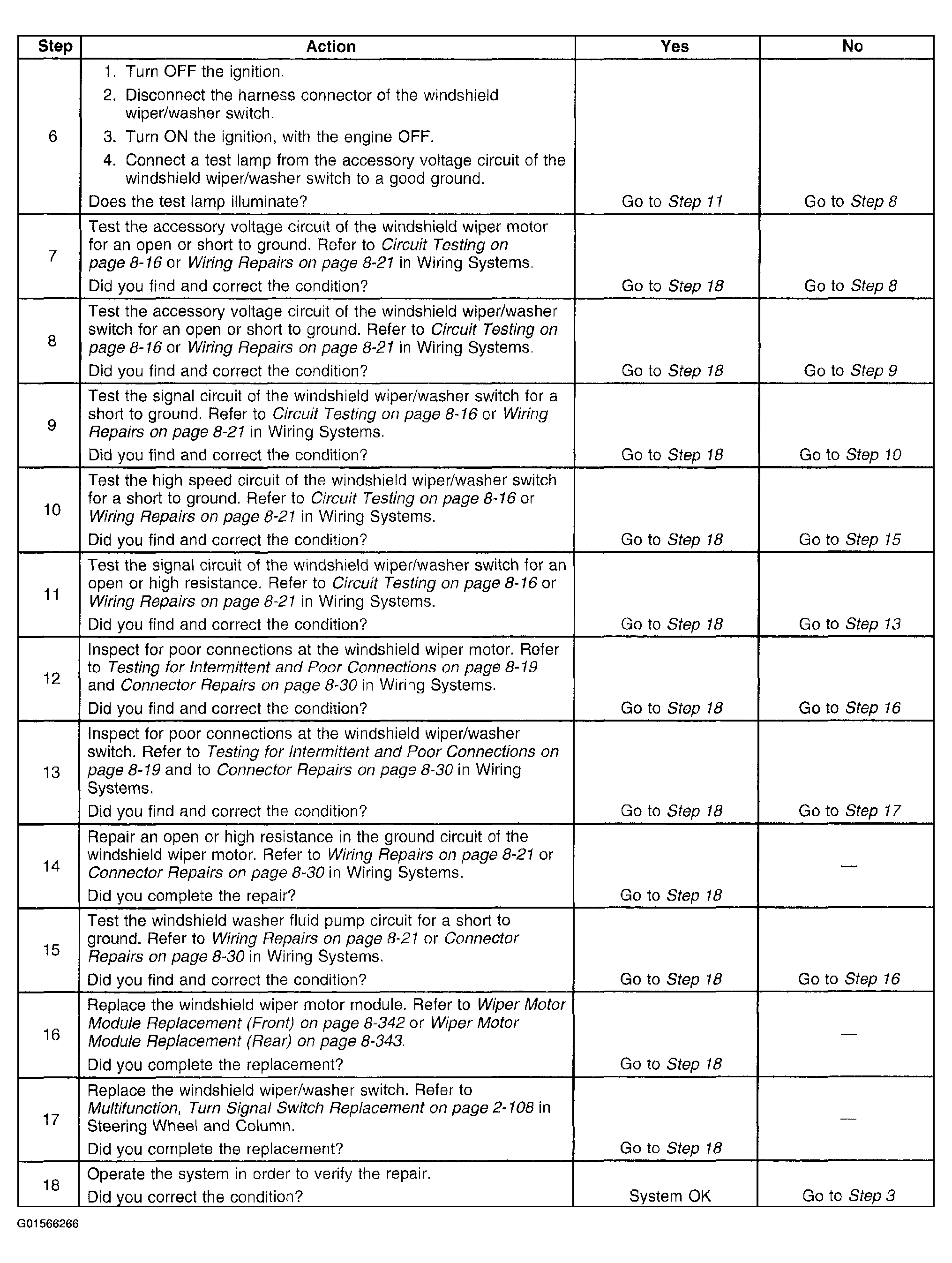

Fig 2: Diagnostic Procedure (Wipers Inoperative - All Modes) (2 Of 2)
G01566266Courtesy of GENERAL MOTORS CORP.
