Wipers Always On
Wipers Always On

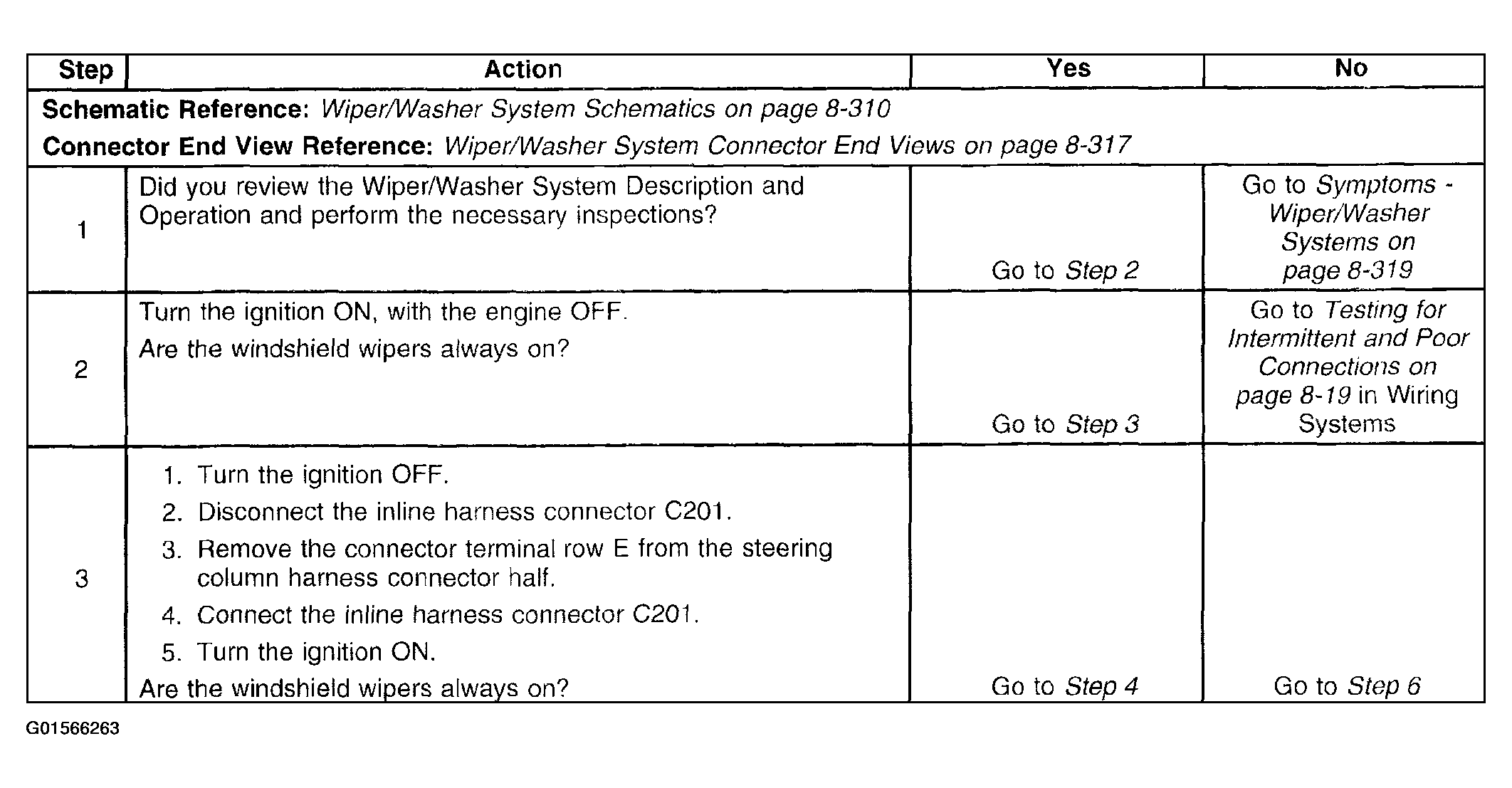

Fig 1: Diagnostic Procedure (Wipers Always On) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

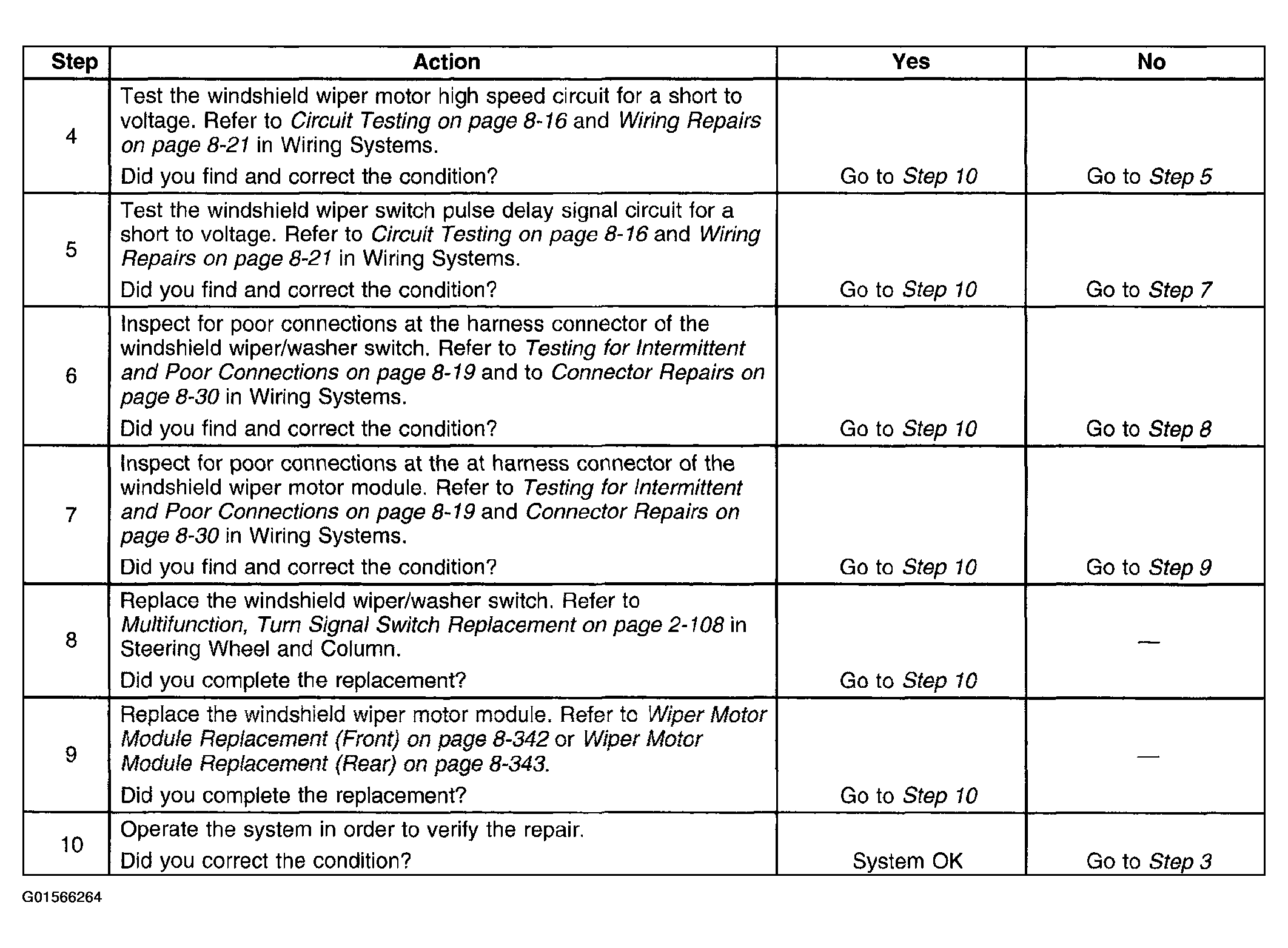

Fig 2: Diagnostic Procedure (Wipers Always On) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
