Wiper Inoperative - Rear

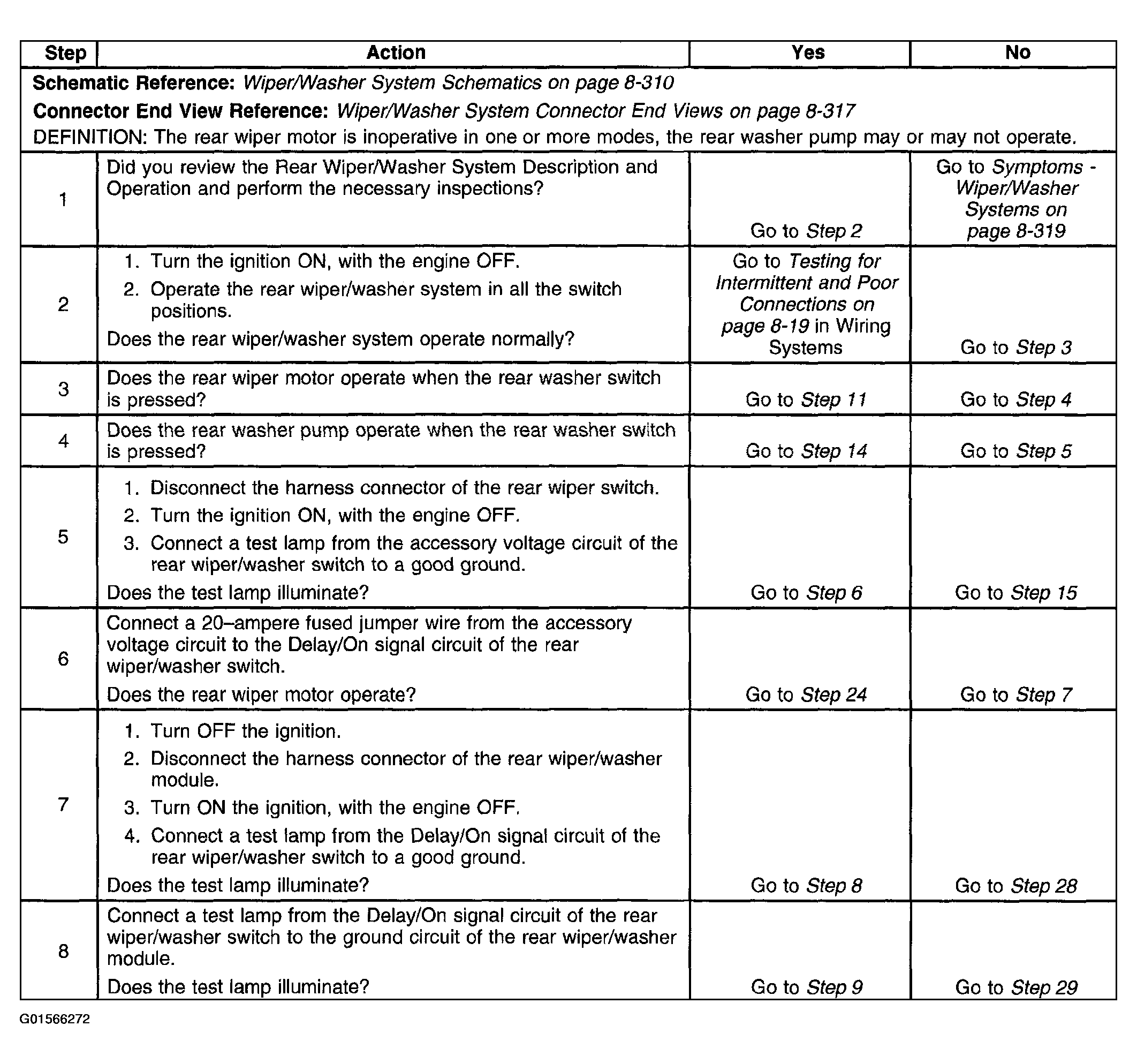

Fig 1: Diagnostic Procedure (Wiper Inoperative - Rear) (1 Of 3)
G01566272Courtesy of GENERAL MOTORS CORP.

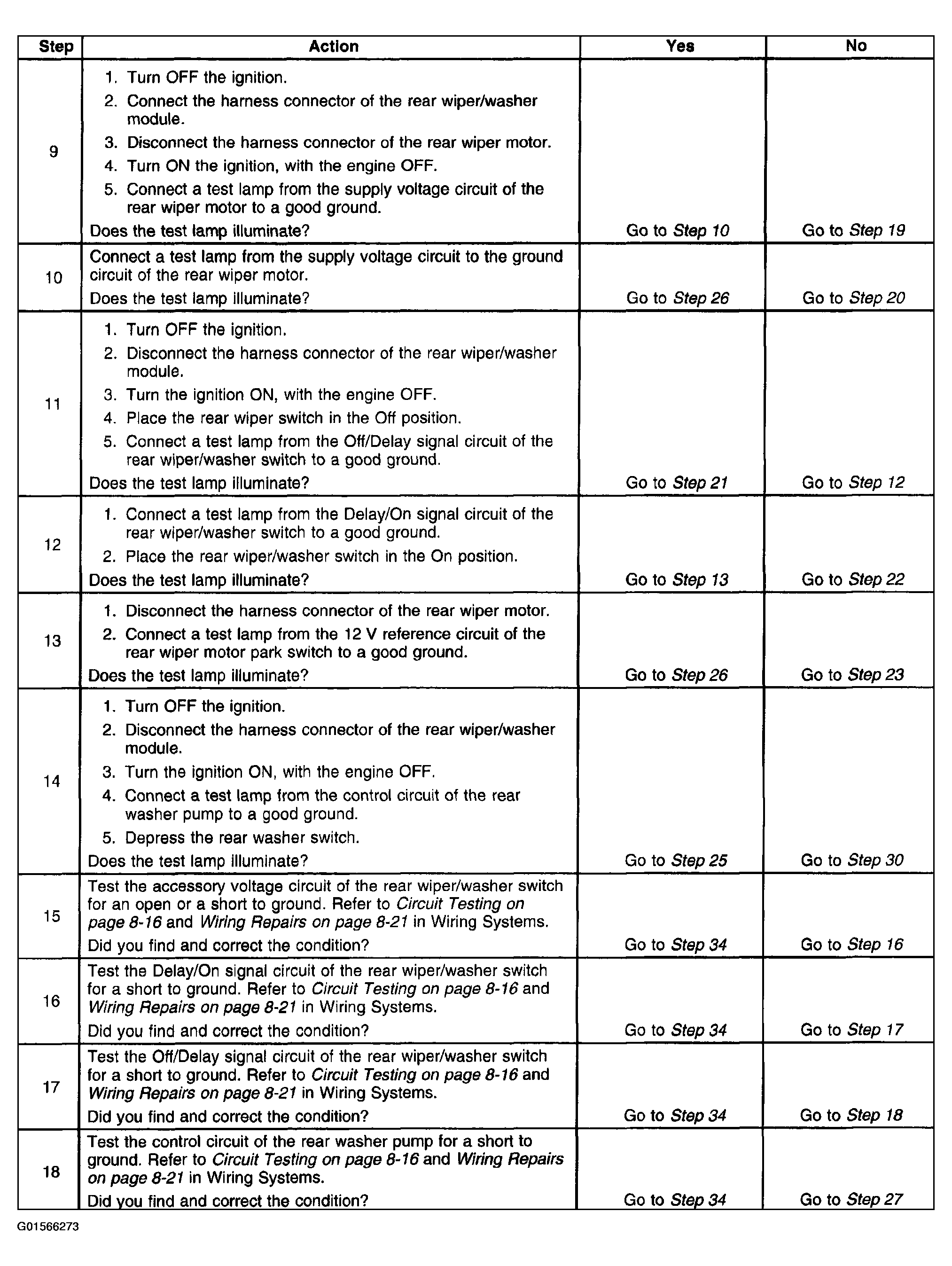

Fig 2: Diagnostic Procedure (Wiper Inoperative - Rear) (2 Of 3)
G01566273Courtesy of GENERAL MOTORS CORP.
Fig 3: Diagnostic Procedure (Wiper Inoperative - Rear) (3 Of 3)
G01566274Courtesy of GENERAL MOTORS CORP.
