Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wiper System & Washer System >> Diagnostic Information and Procedures >> Wiper Delay Mode Inoperative - Rear

Wiper Delay Mode Inoperative - Rear

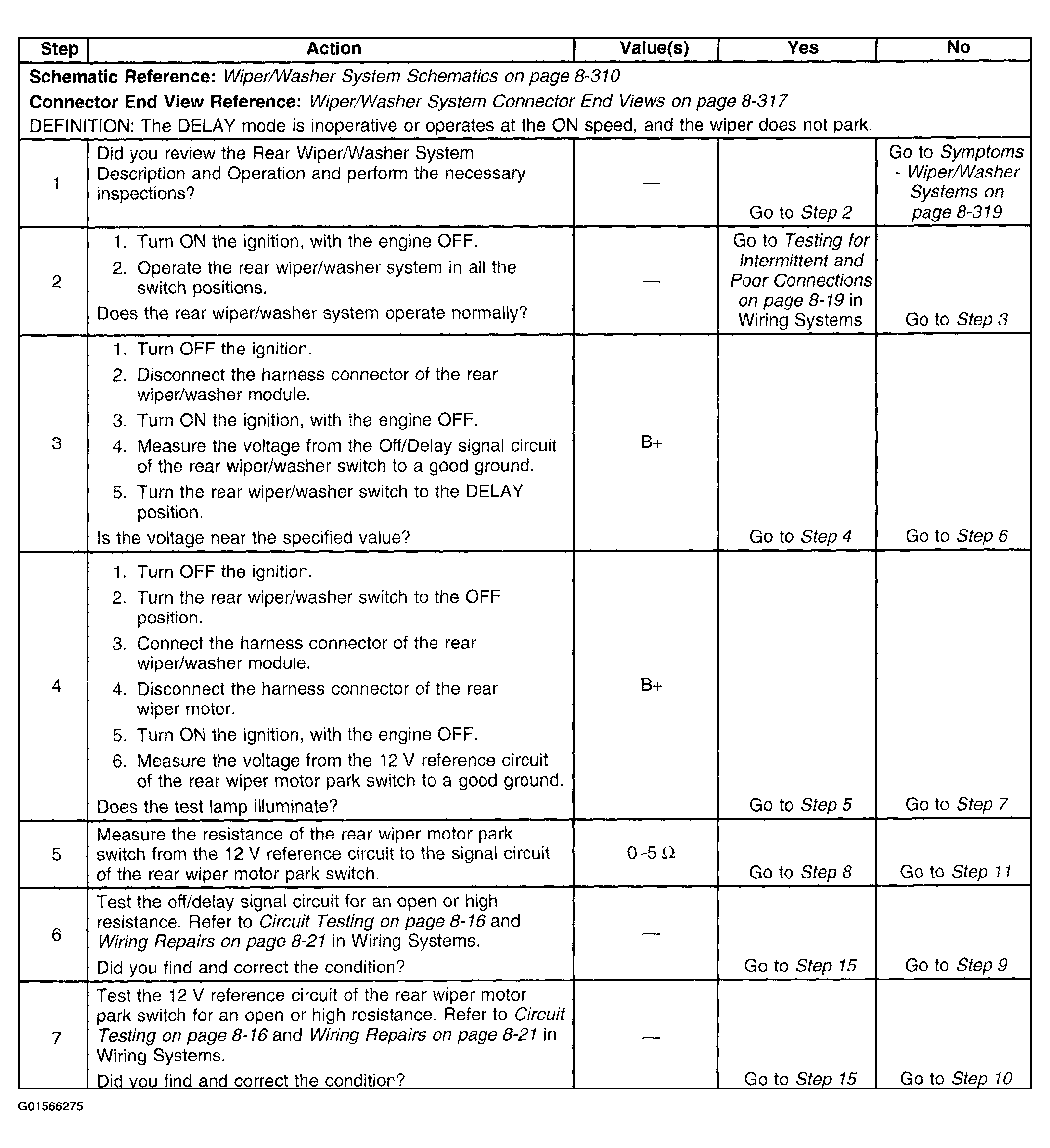

Fig 1: Diagnostic Procedure (Wiper Delay Mode Inoperative - Rear) (1 Of 2)
G01566275Courtesy of GENERAL MOTORS CORP.

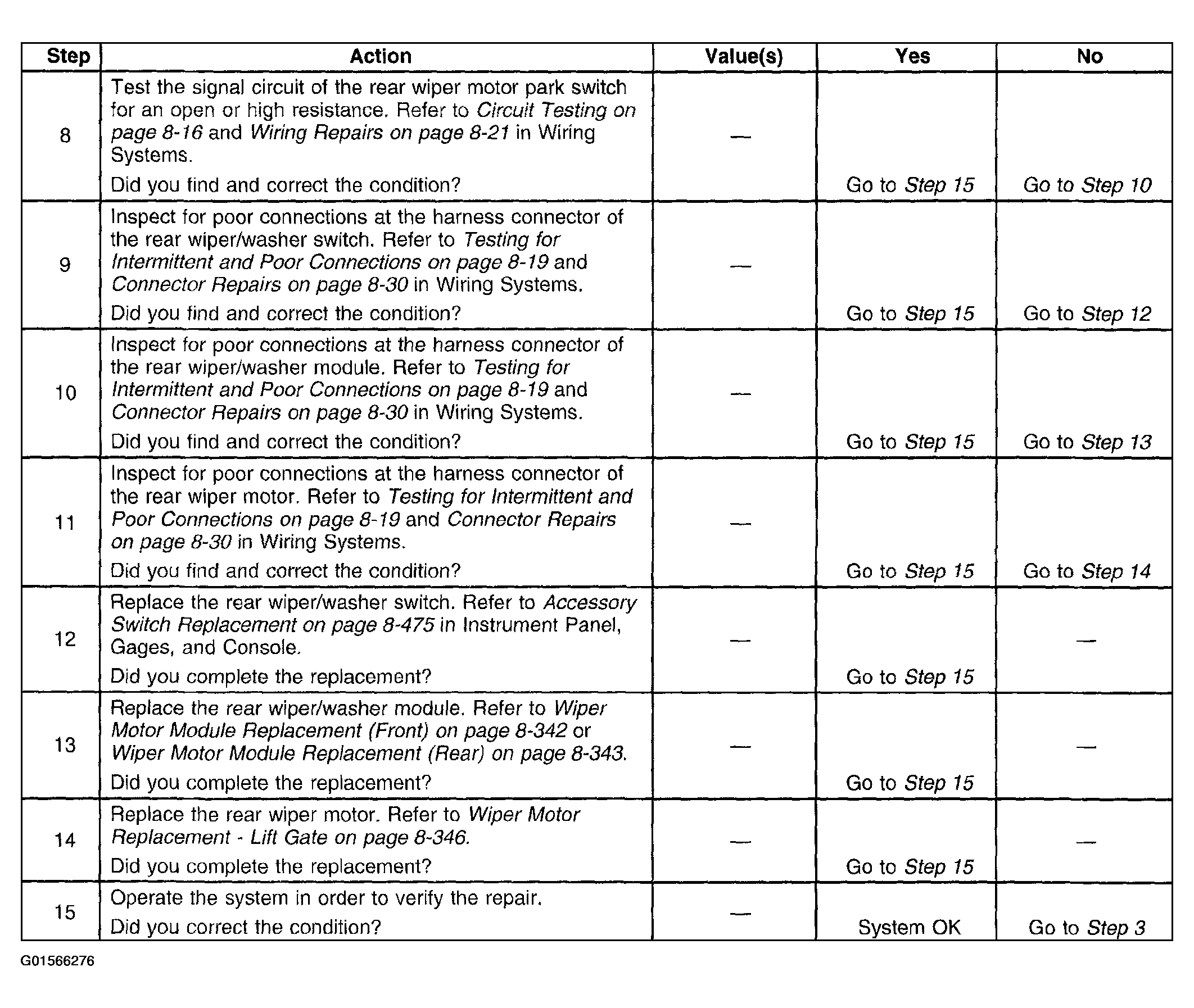

Fig 2: Diagnostic Procedure (Wiper Delay Mode Inoperative - Rear) (2 Of 2)
G01566276Courtesy of GENERAL MOTORS CORP.
