Washer Inoperative - Rear

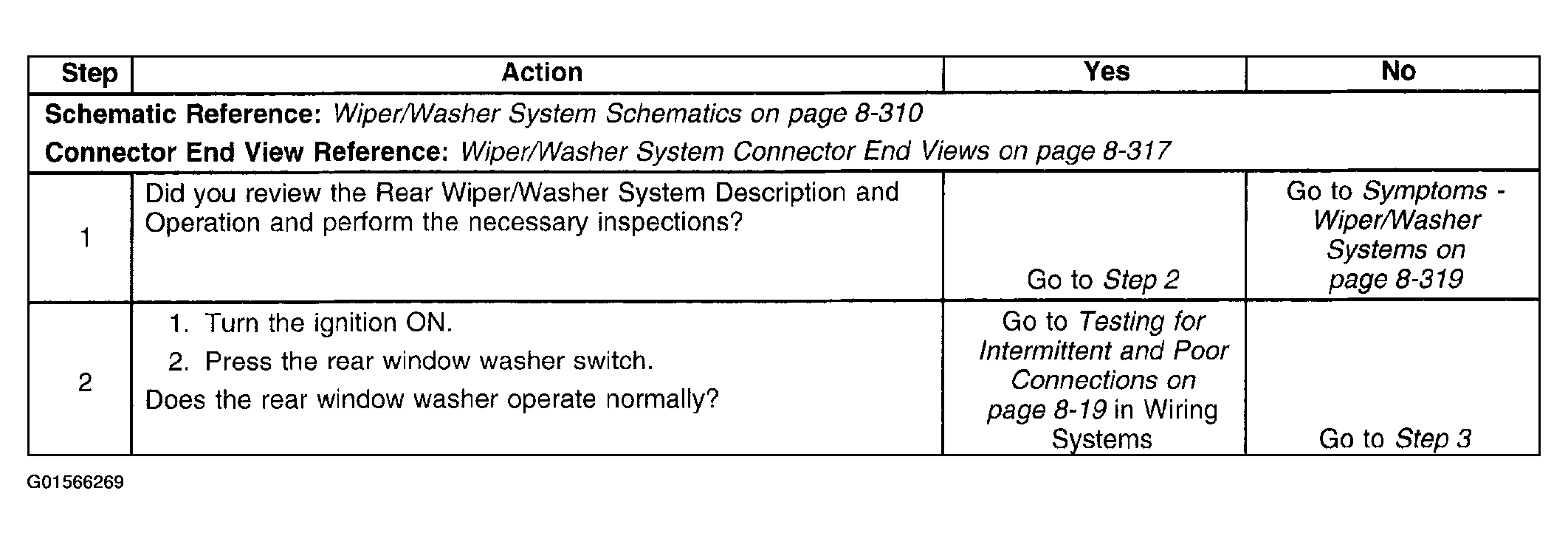

Fig 1: Diagnostic Procedure (Washer Inoperative - Rear) (1 Of 2)
G01566269Courtesy of GENERAL MOTORS CORP.

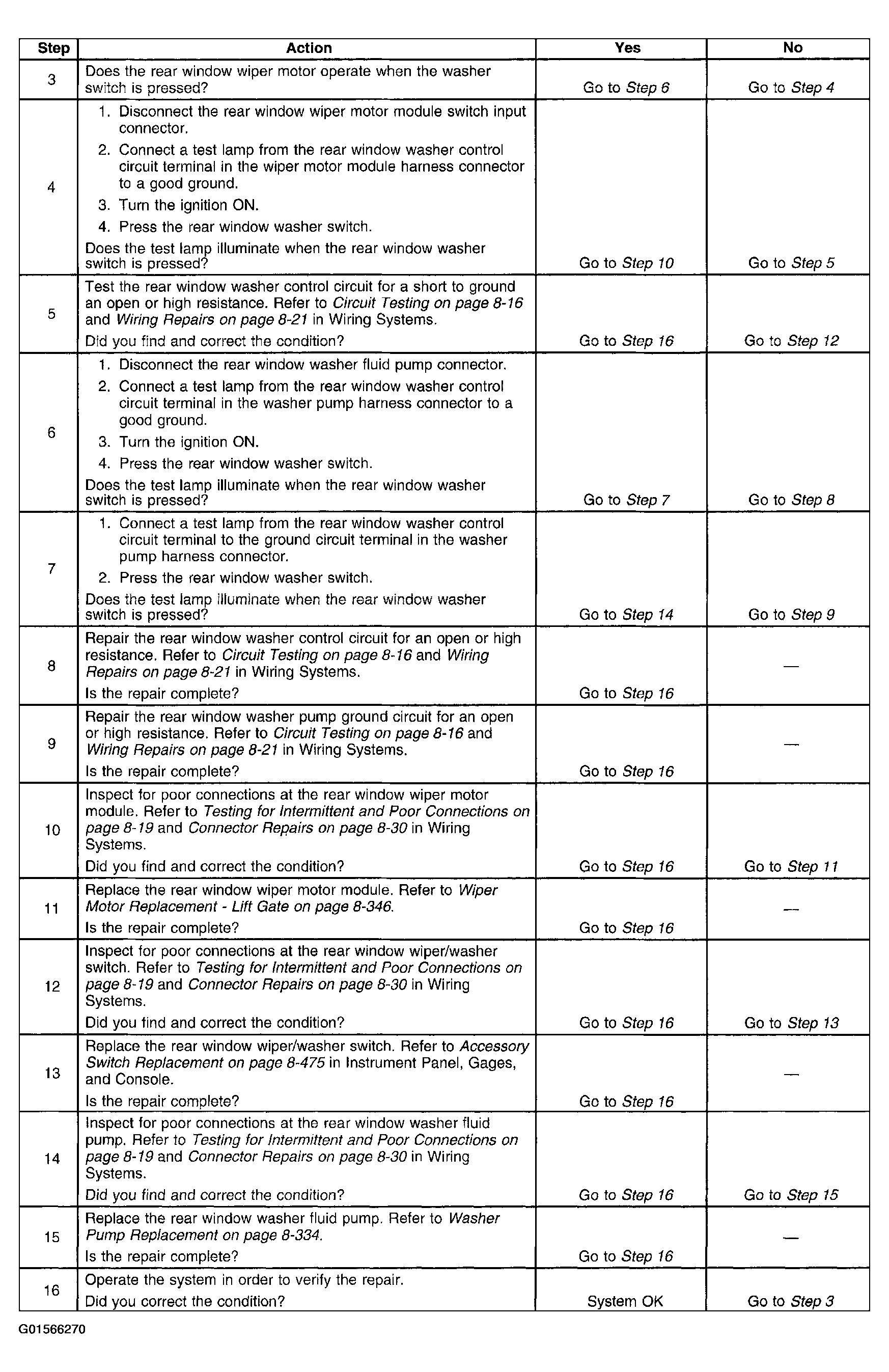

Fig 2: Diagnostic Procedure (Washer Inoperative - Rear) (2 Of 2)
G01566270Courtesy of GENERAL MOTORS CORP.
