Wiper/Washer System Connector End Views

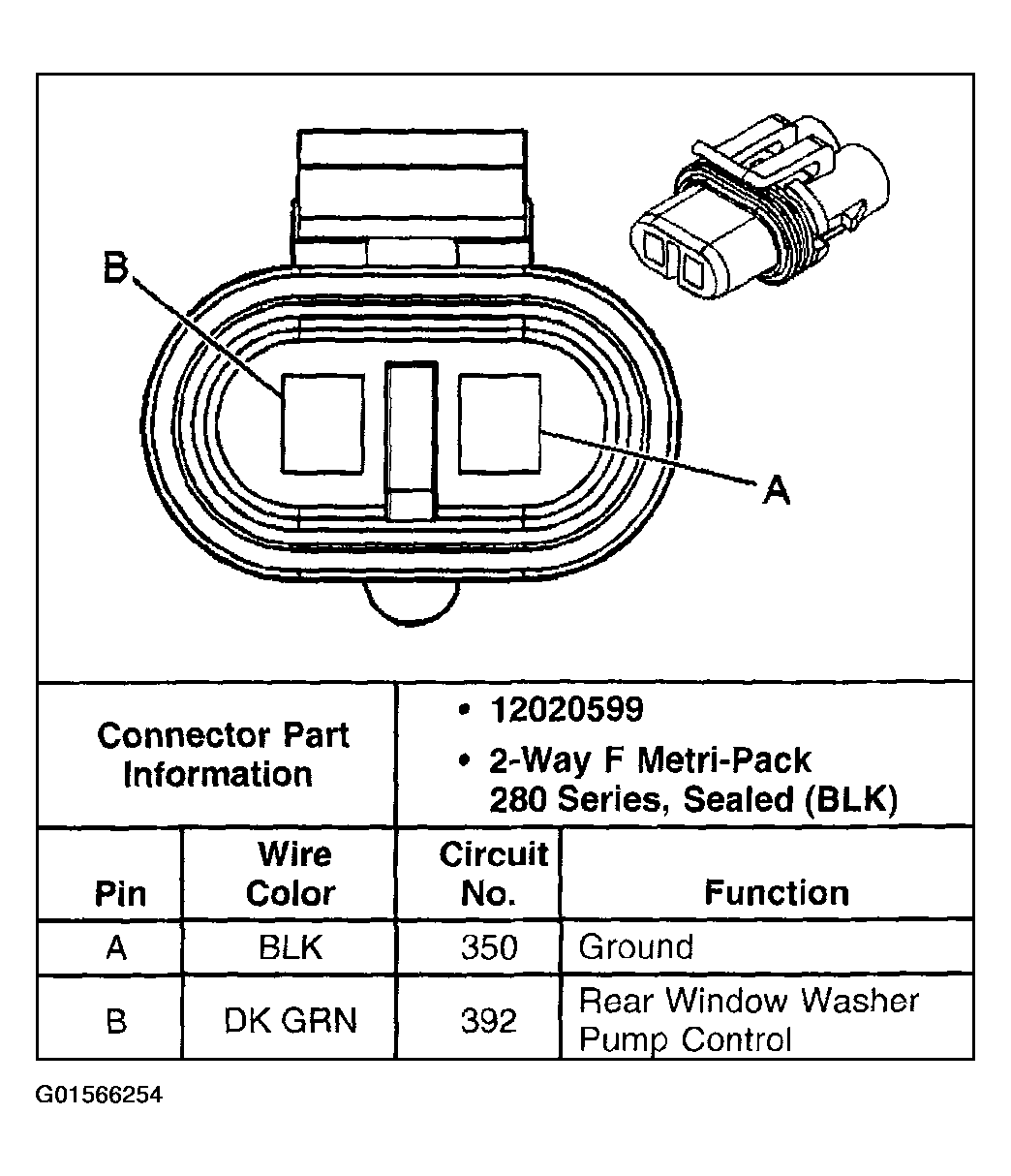

Fig 1: Rear Window Washer Fluid Pump Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Window Wiper/Washer Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.

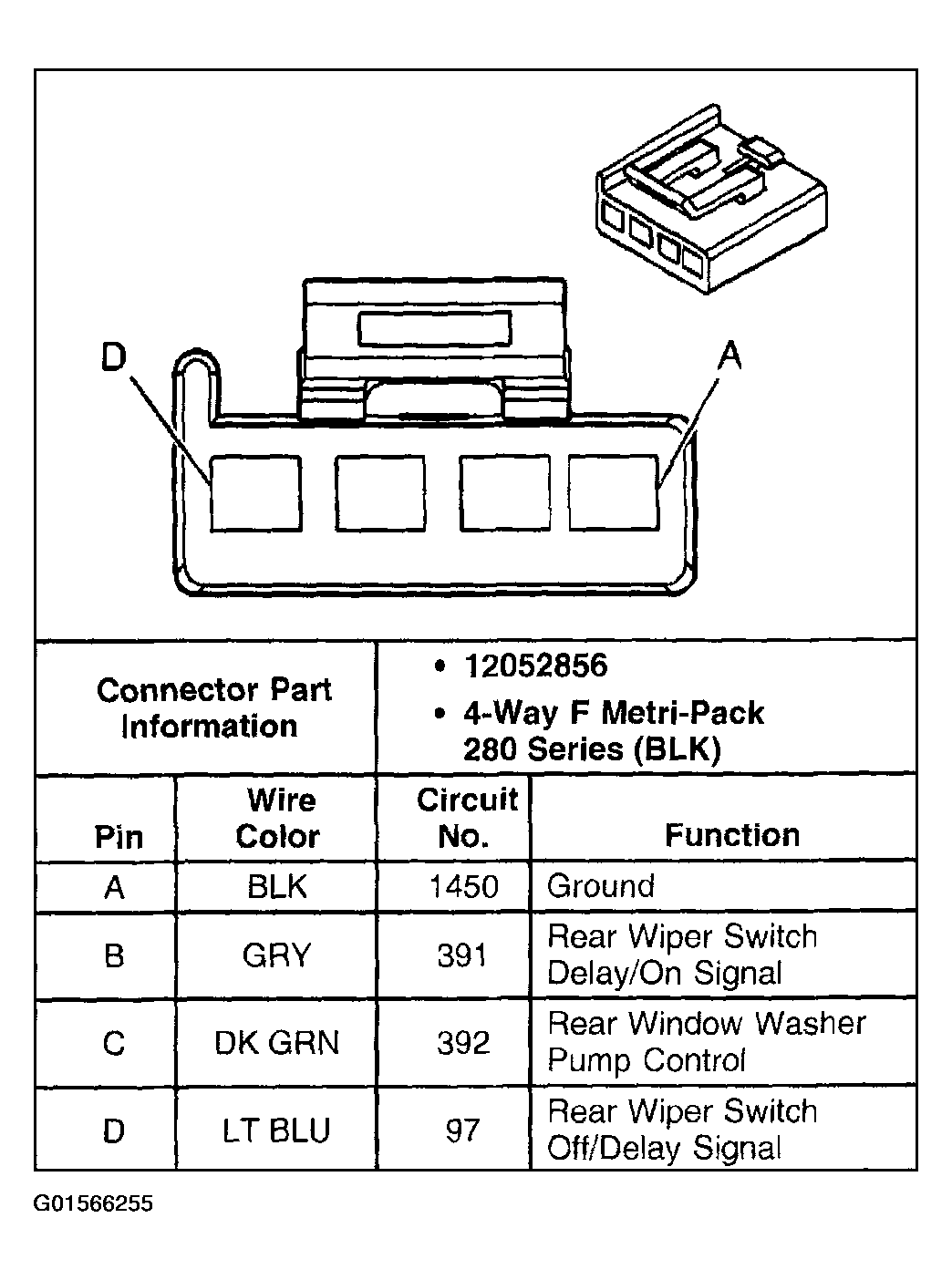

Fig 3: Rear Window Wiper Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Rear Window Wiper Washer Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

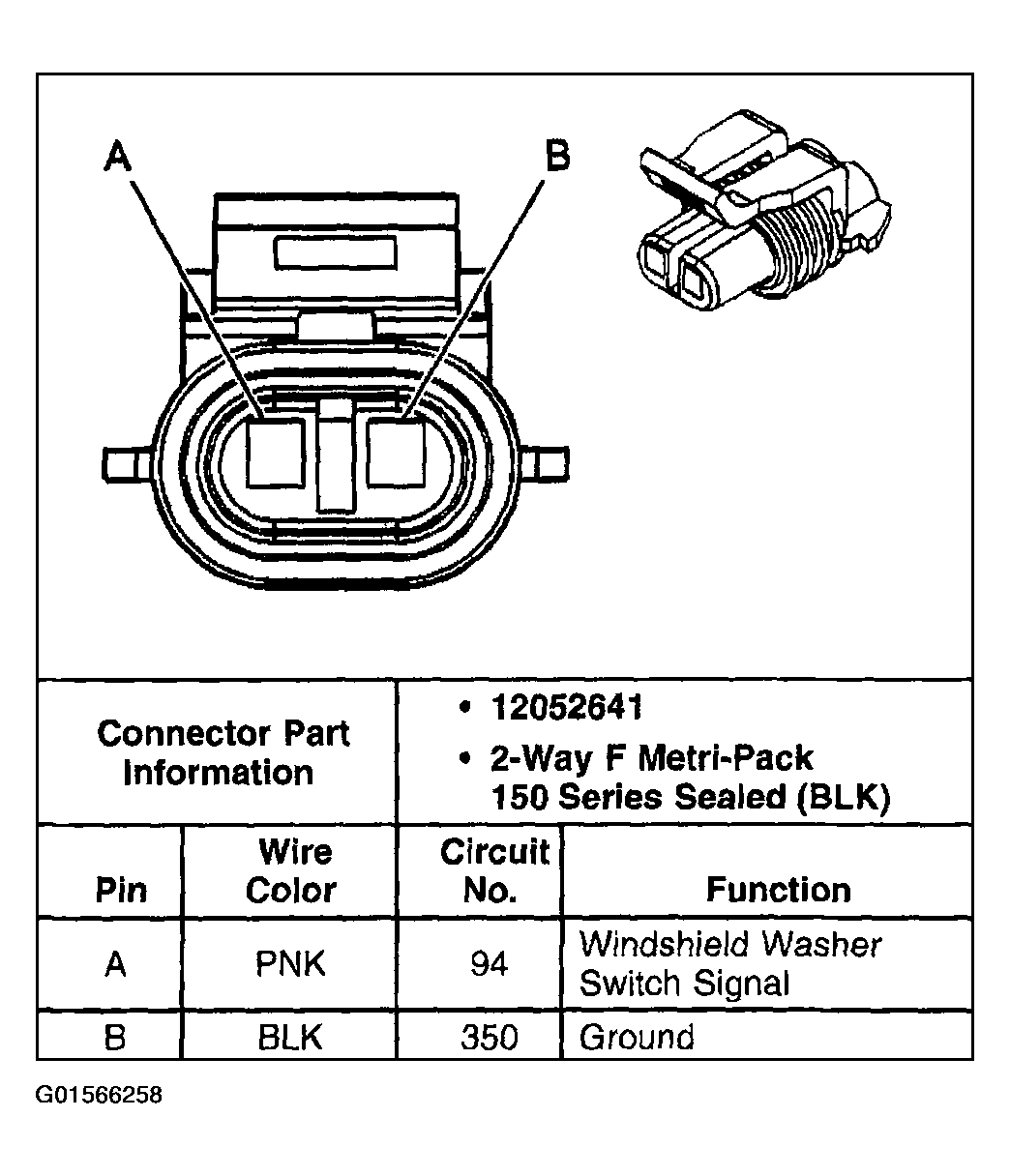

Fig 5: Windshield Washer Fluid Pump Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 6: Windshield Wiper Motor And Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.
