Interior Lights Schematics

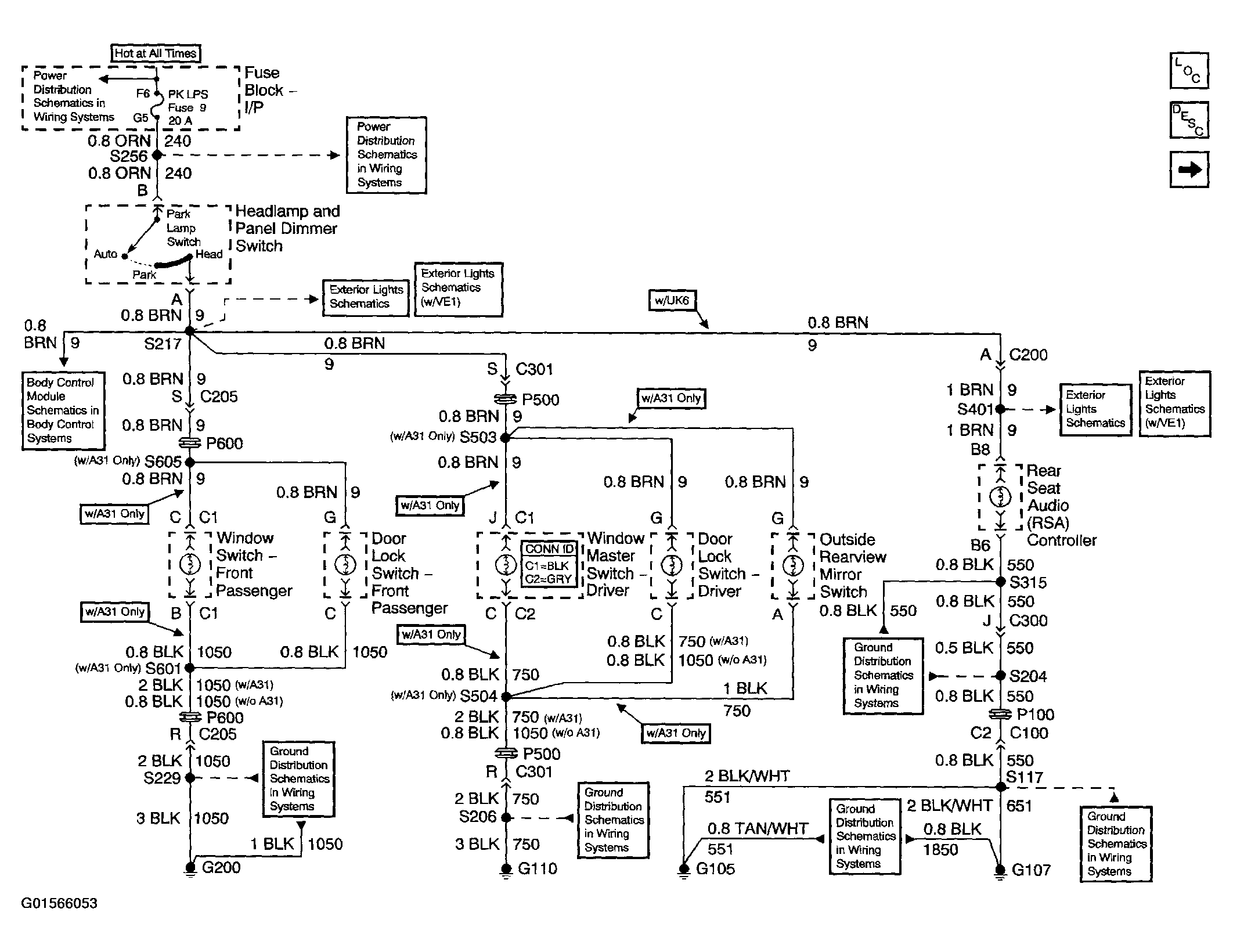

Fig 1: Power Window/Door Lock Switches
G01566053Courtesy of GENERAL MOTORS CORP.

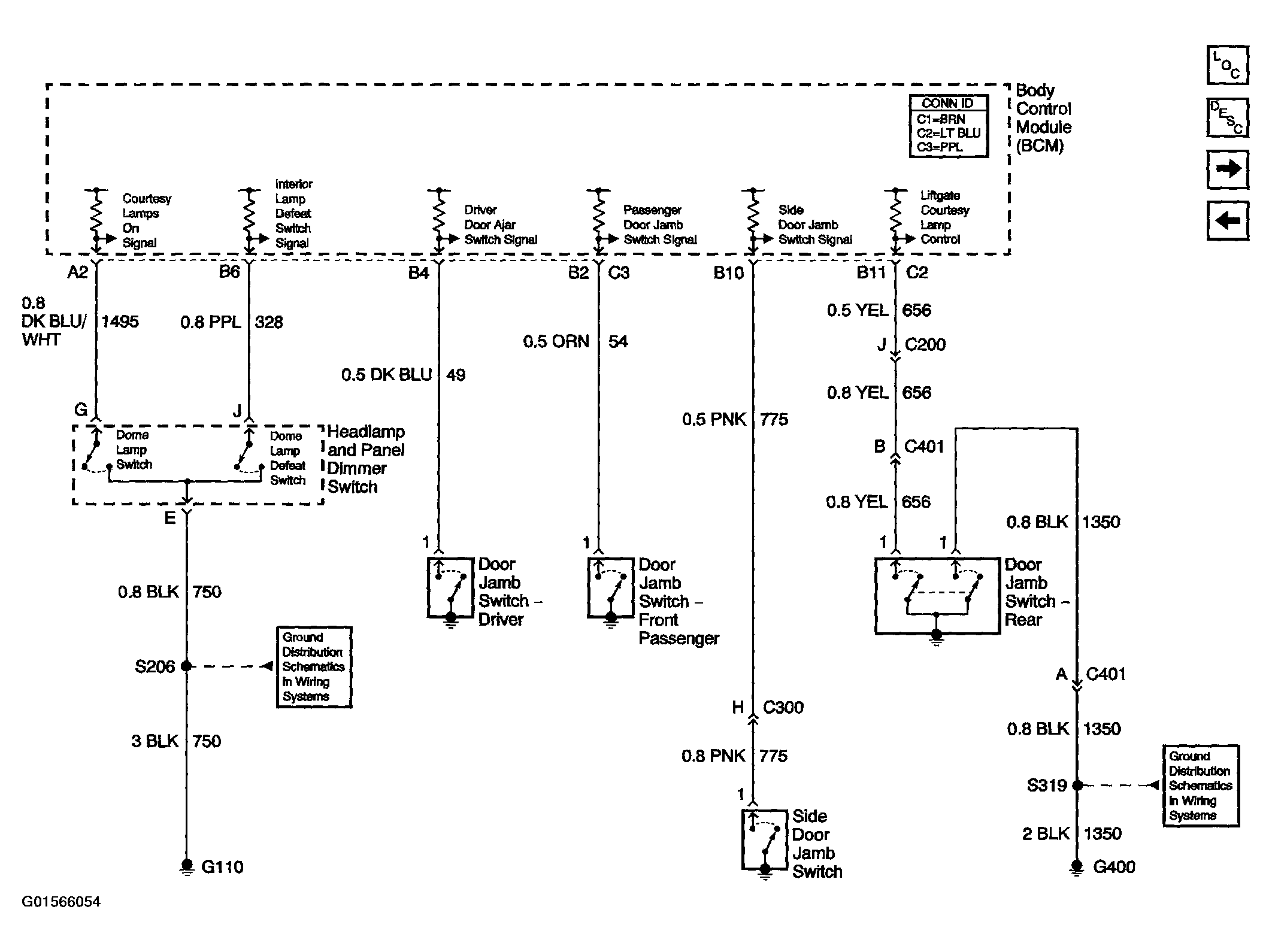

Fig 2: Door Jamb Switches
G01566054Courtesy of GENERAL MOTORS CORP.

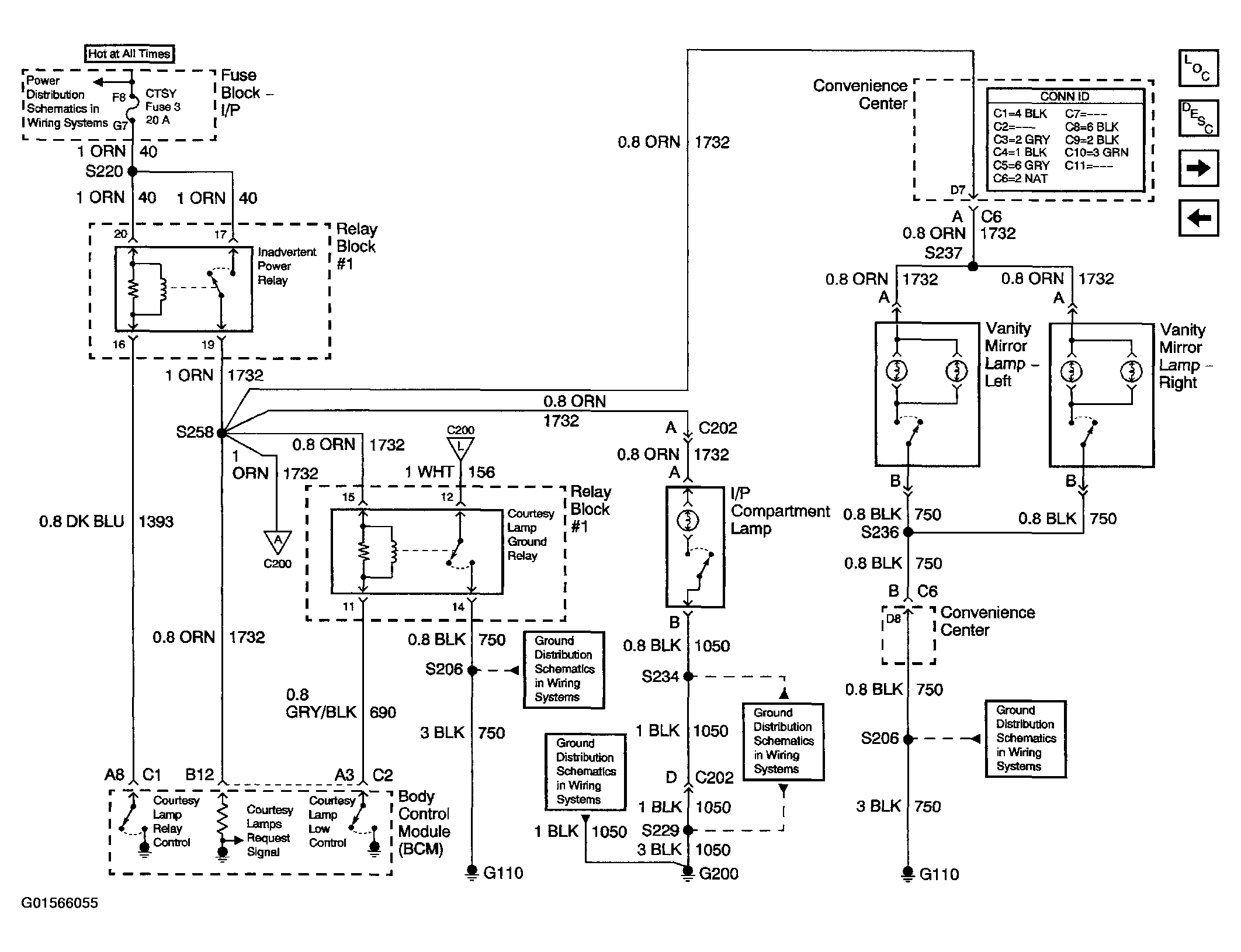

Fig 3: Vanity Mirror Lamps, Inadvertent Power Relay
G01566055Courtesy of GENERAL MOTORS CORP.

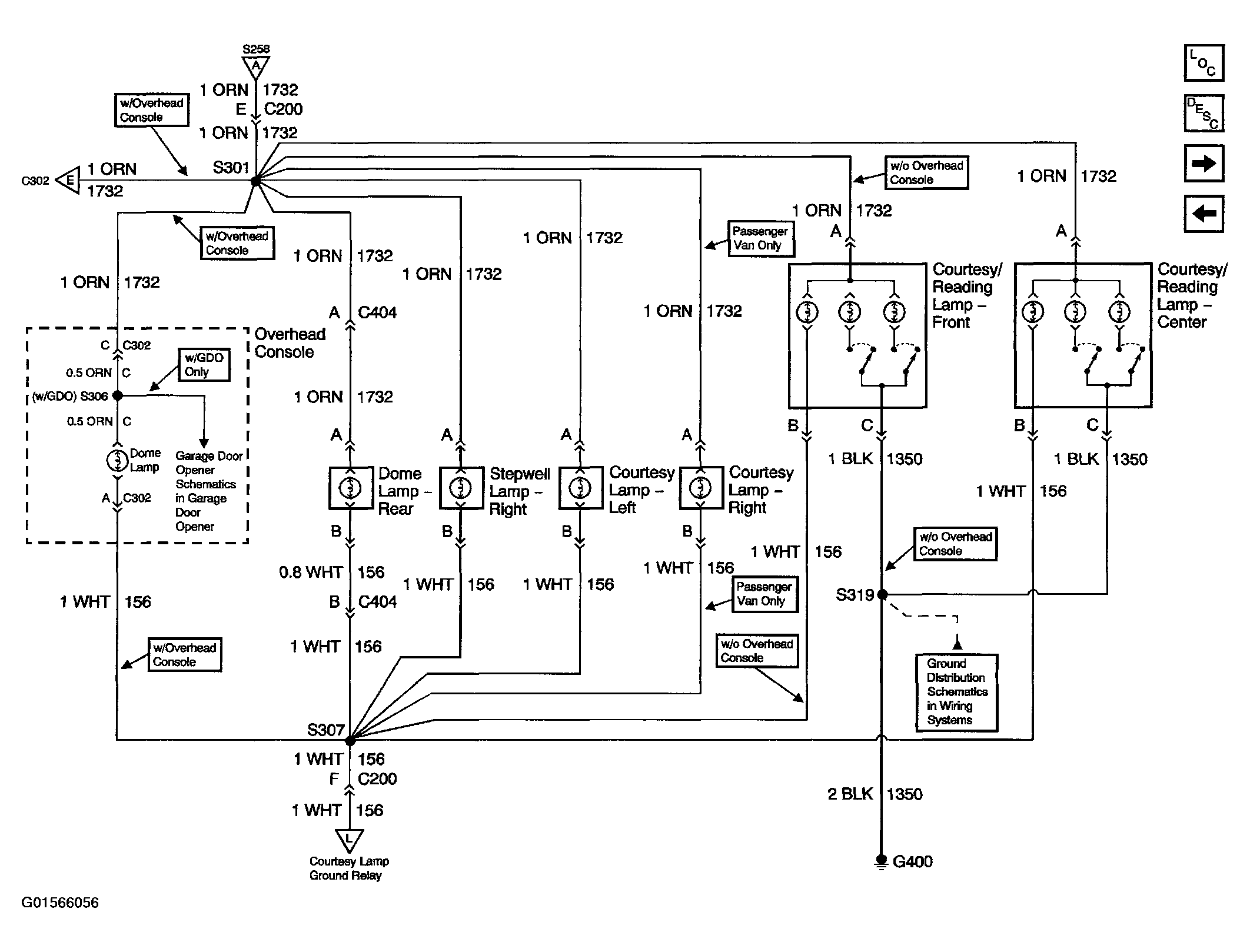

Fig 4: Courtesy Lamp Relay, And I/P Compartment Lamp
G01566056Courtesy of GENERAL MOTORS CORP.

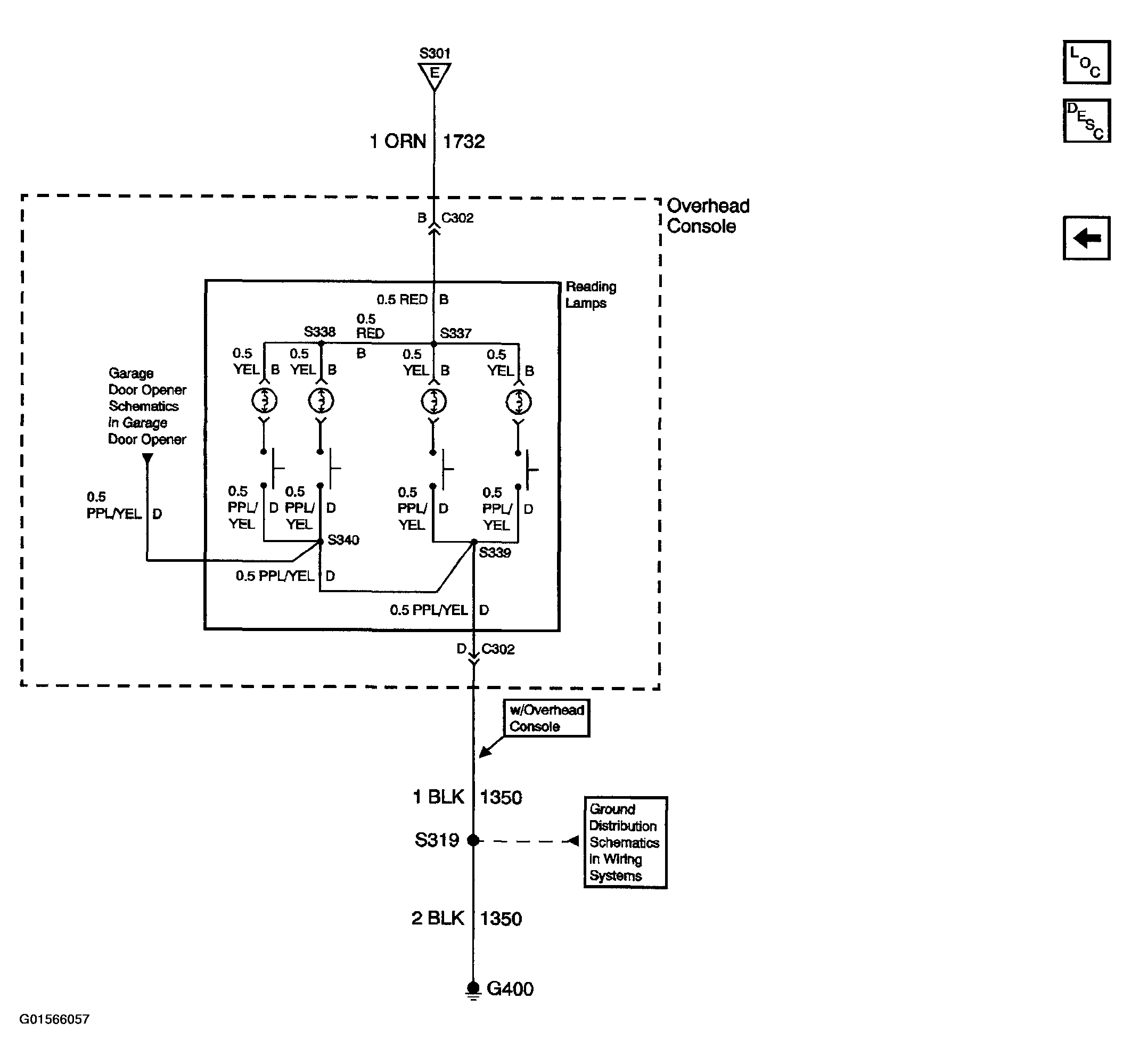

Fig 5: Front Door Lamp Options
G01566057Courtesy of GENERAL MOTORS CORP.
