Interior Lights Dimming Schematics

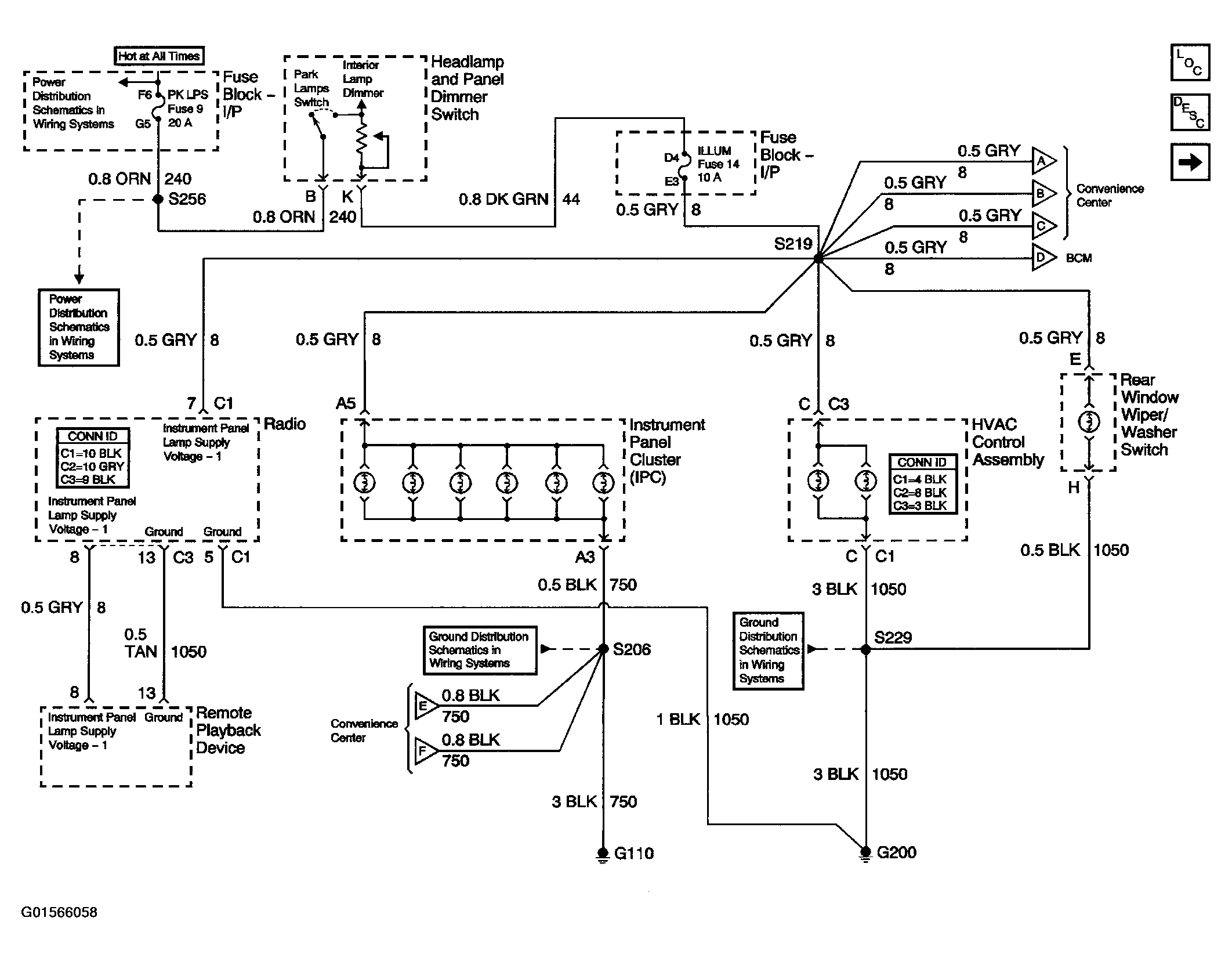

Fig 1: Illumination
G01566058Courtesy of GENERAL MOTORS CORP.

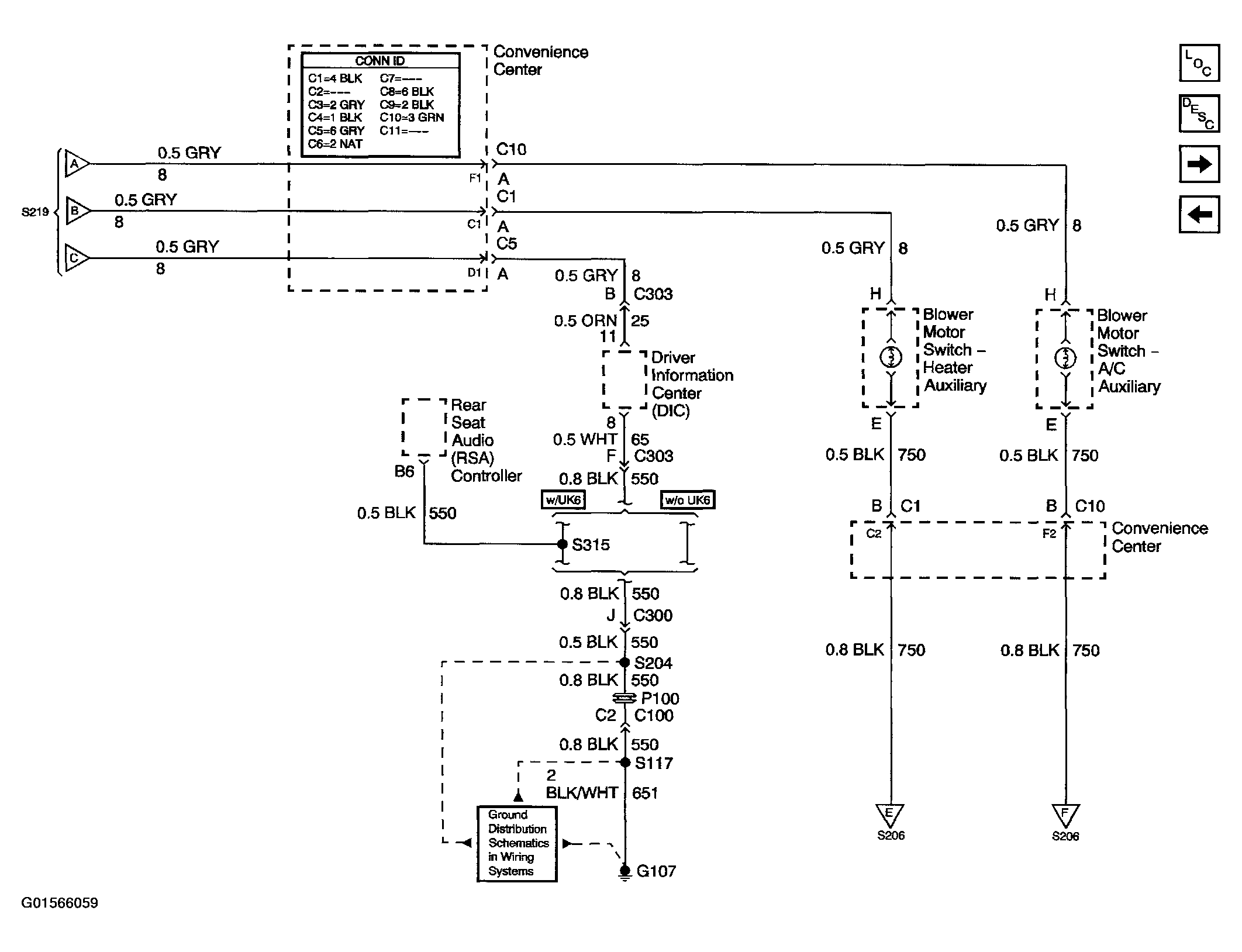

Fig 2: Overhead Console, Rear Heater And A/C Switches, And RSA
G01566059Courtesy of GENERAL MOTORS CORP.

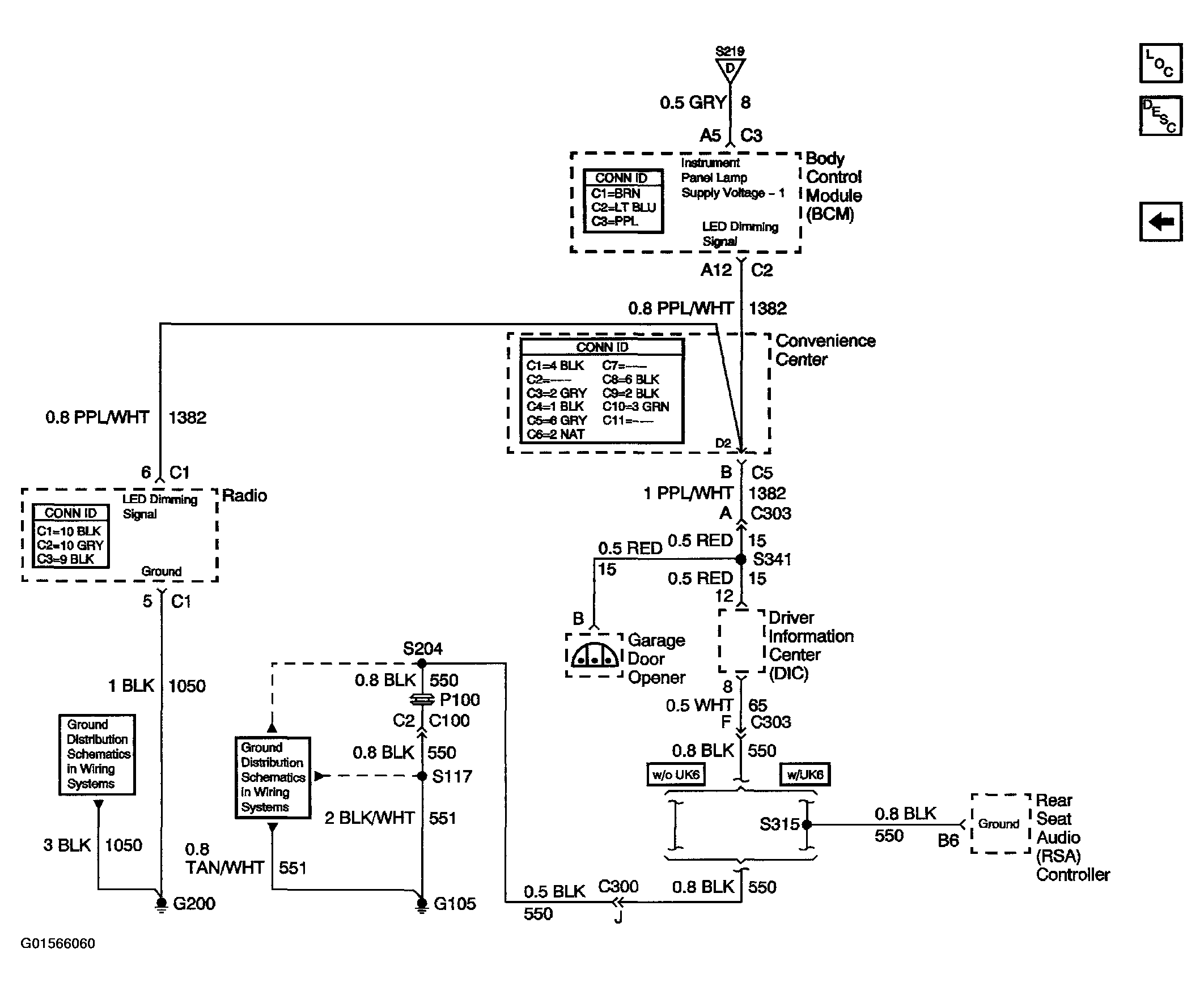

Fig 3: Radio, Overhead Console, And RSA
G01566060Courtesy of GENERAL MOTORS CORP.
