Exterior Lights Schematics (Export)

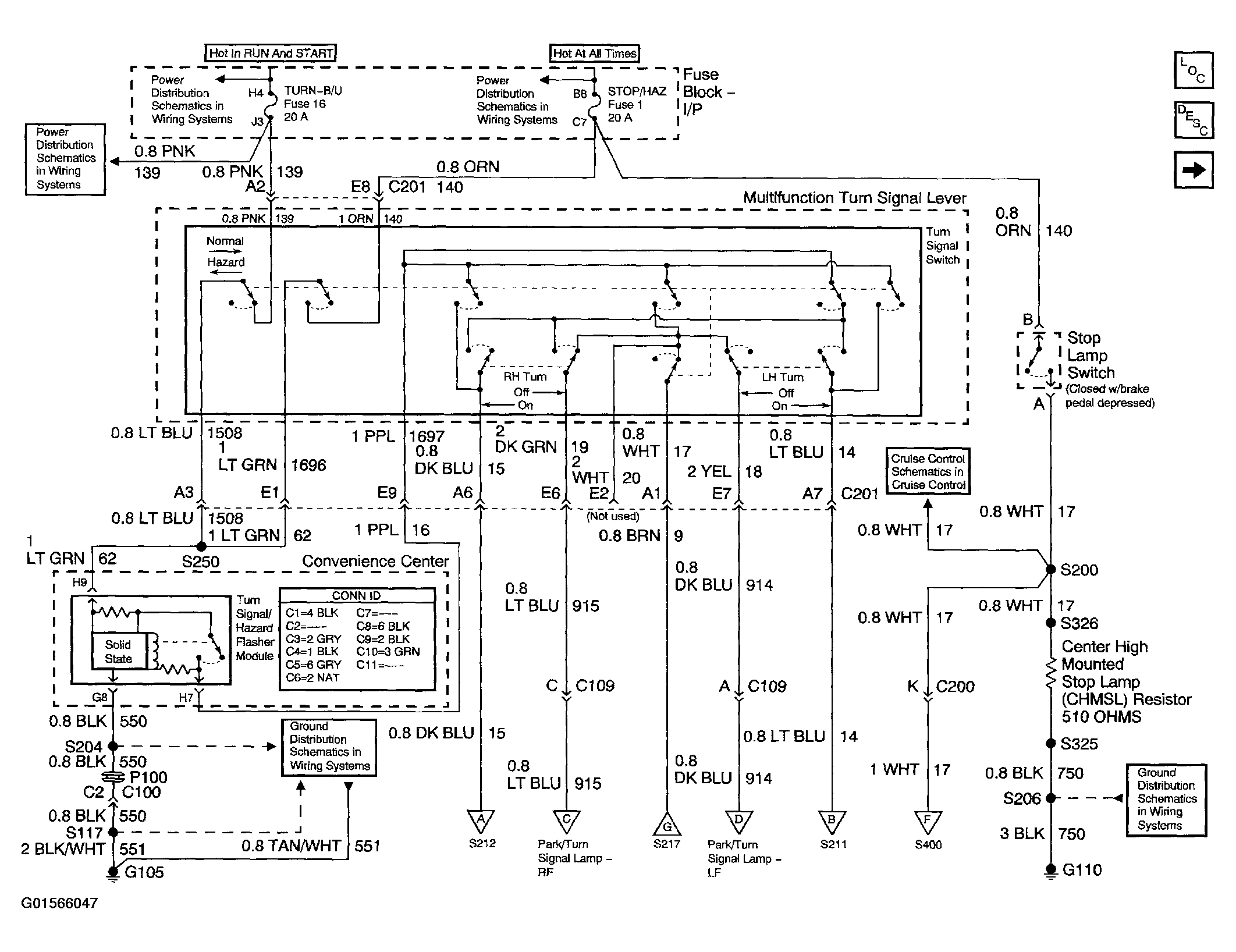

Fig 1: Turn Signal Switch, And Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.

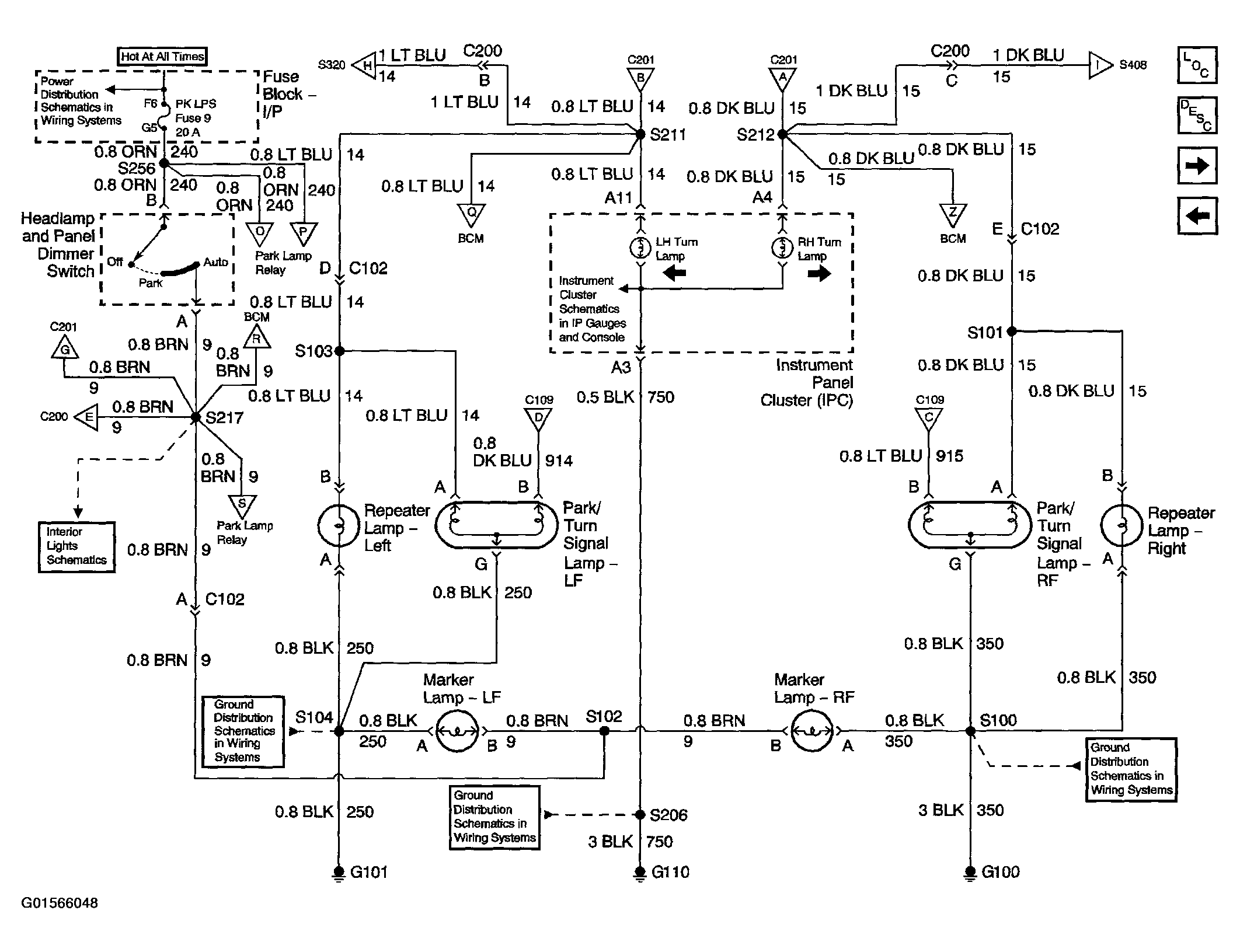

Fig 2: Turn Indicators, Front Park/Turn Signal Lamps, Repeater Lamps

Courtesy of GENERAL MOTORS CORP.

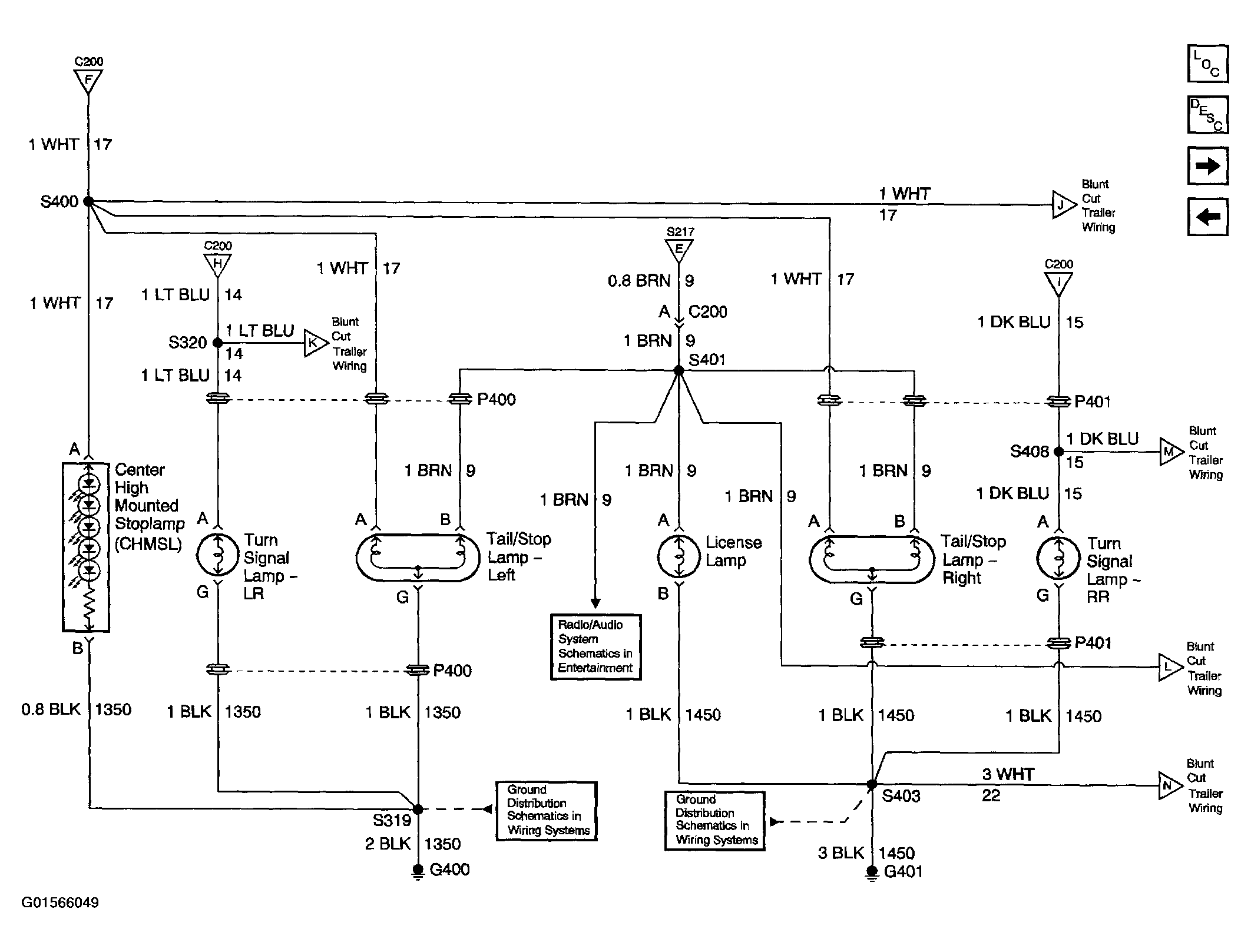

Fig 3: Tail/Stop Lamps, Turn Signal Lamps, License Lamp, And CHMSL

Courtesy of GENERAL MOTORS CORP.

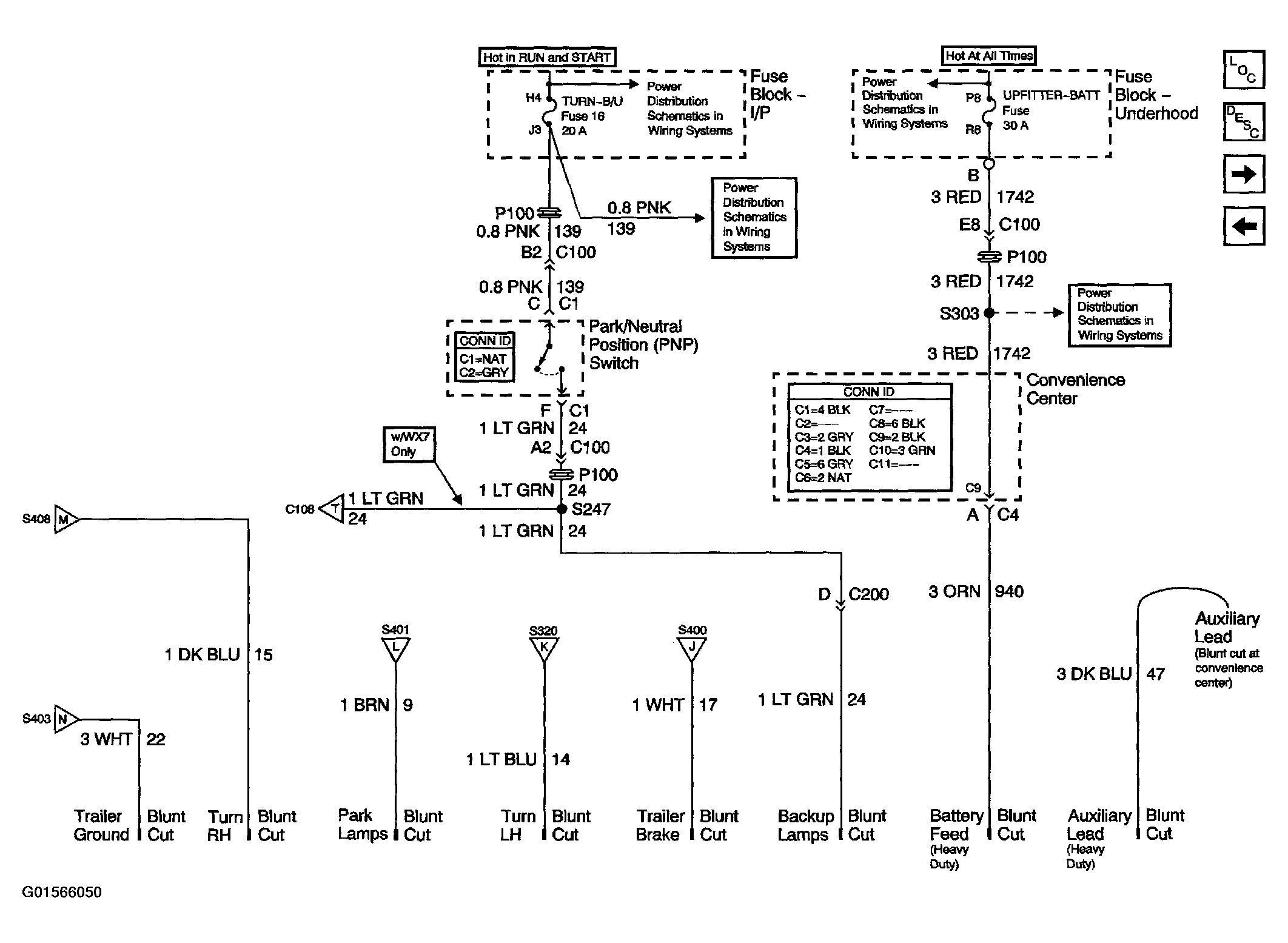

Fig 4: Trailer Wiring Harness Connections

Courtesy of GENERAL MOTORS CORP.

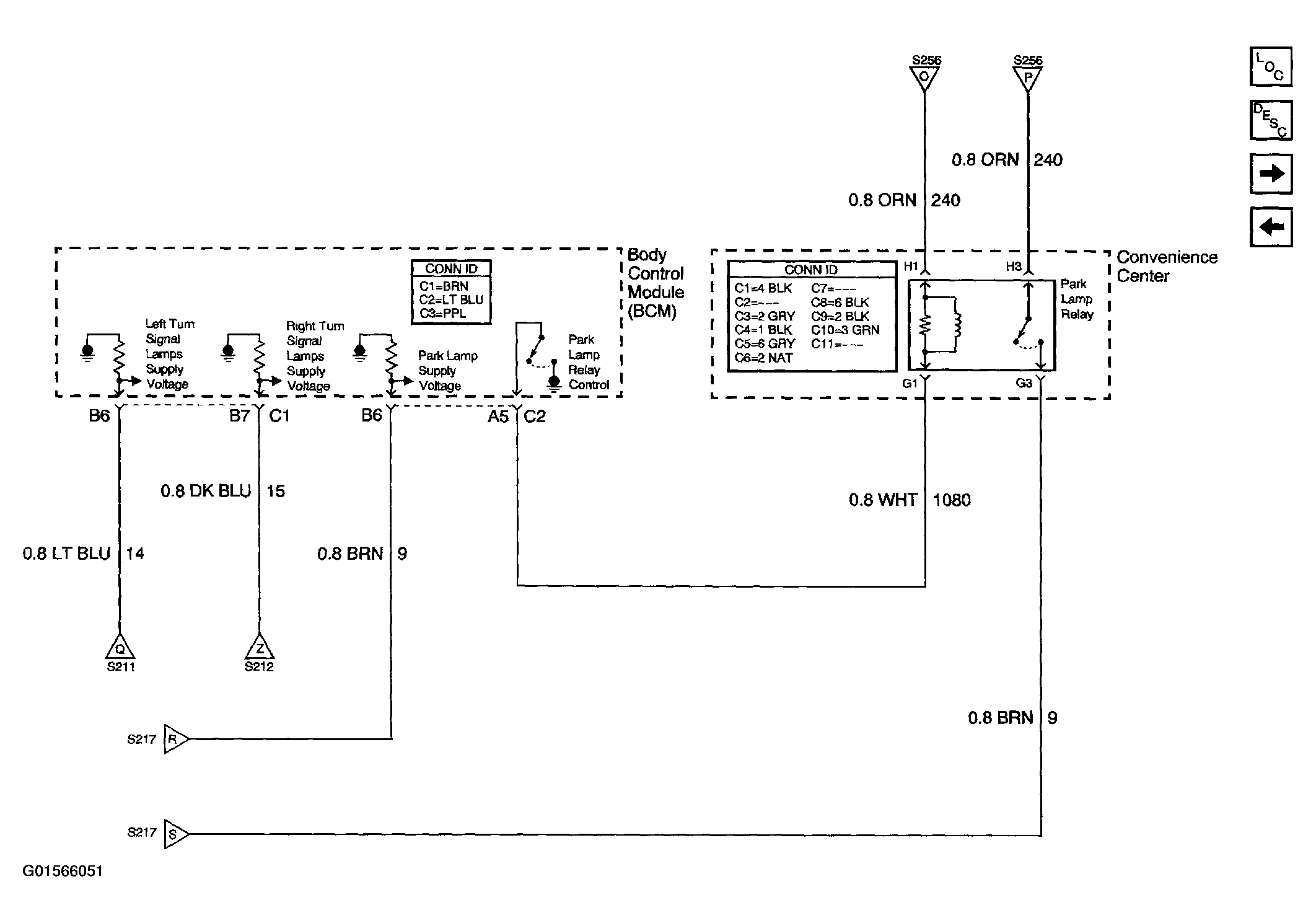

Fig 5: Park Lamp Relay

Courtesy of GENERAL MOTORS CORP.

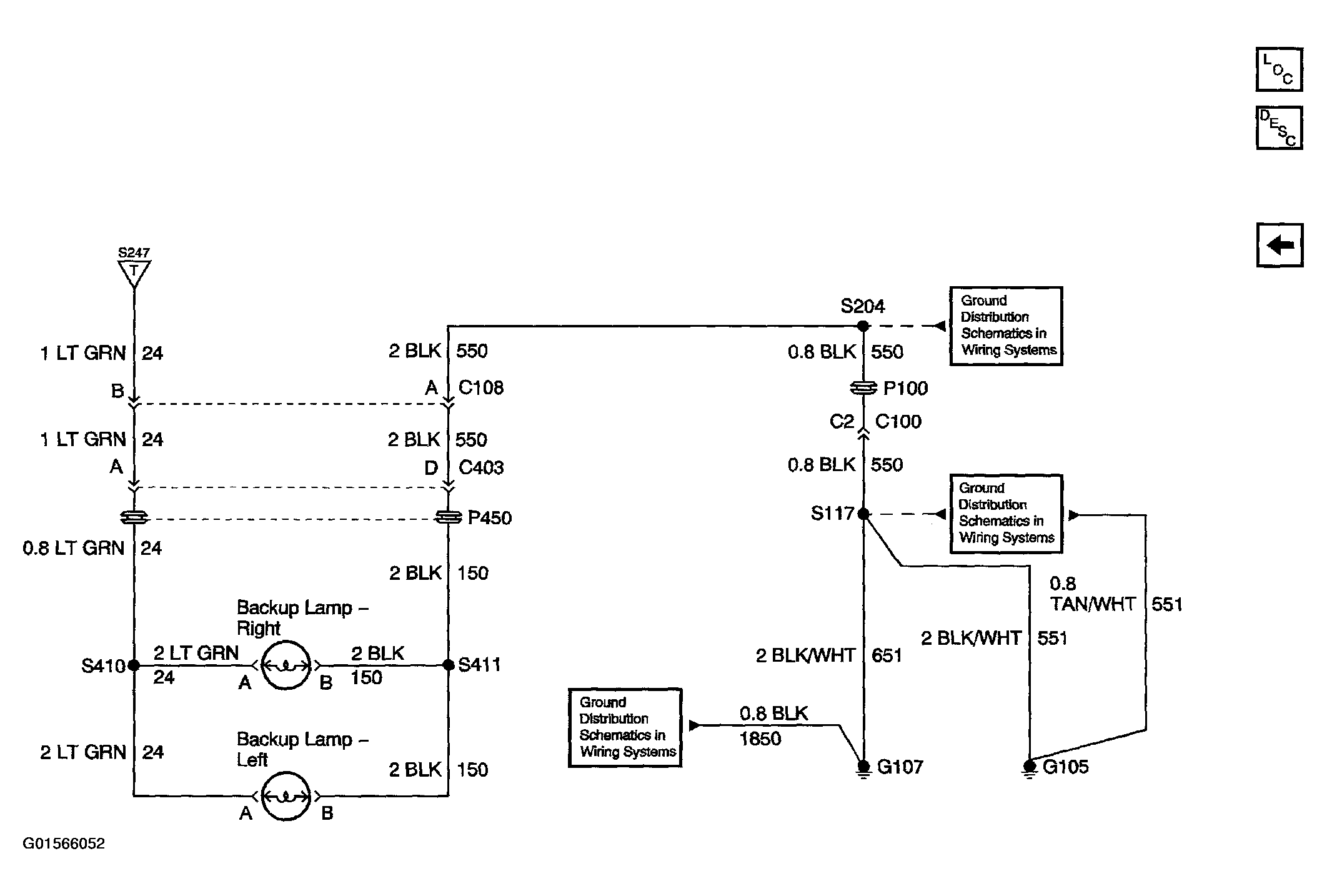

Fig 6: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
