Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Repair Instructions >> Vanity Mirror Lamp Replacement >> Removal Procedure

Removal Procedure

  1. Turn the sunshade down.
  2. Lift the vanity mirror cover.
  3. Remove the lens by gently prying at the top or the bottom of the lens with a suitable flat bladed tool.
  4. Lift the bulb(s) straight out.

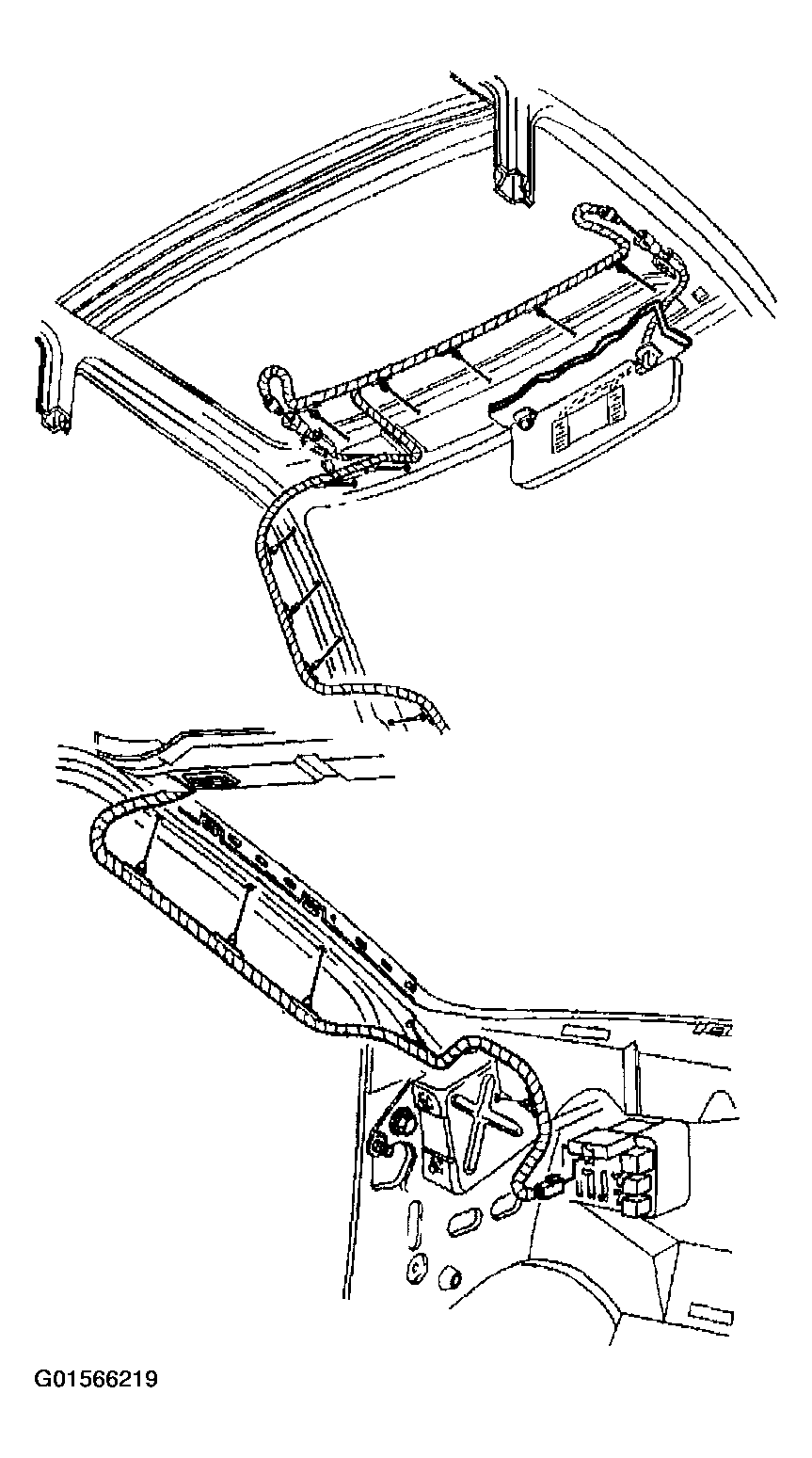

    Fig 1: Removing Vanity Mirror Lamp
    G01566219Courtesy of GENERAL MOTORS CORP.
