Removal Procedure

  1. Turn OFF the headlamp switch.
  2. Open the rear doors.
  3. Remove the screws that retain the tail lamp to the body.
  4. Remove the lamp sockets from the back of the tail lamp by using the following
    1. Squeeze the tang at the electrical connector.
    2. Turn the bulb and the base.

    Important:  Do not remove the grease from the socket.

  5. Remove the bulbs from the sockets.

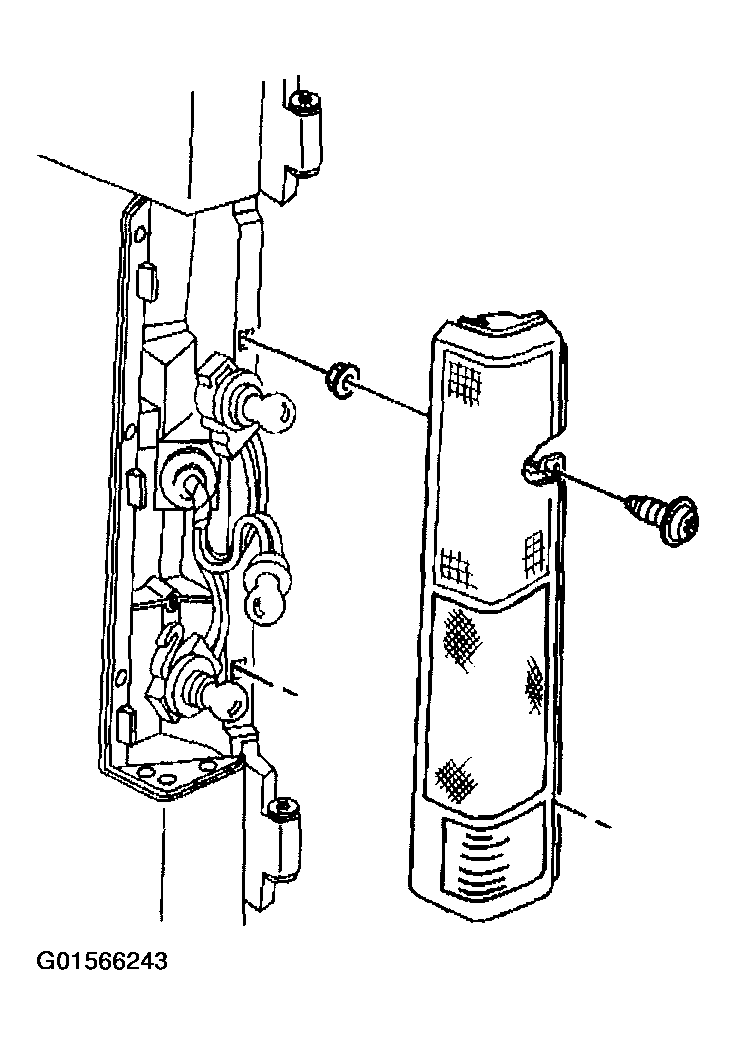

    Fig 1: Removing Tail Lamp
    G01566243Courtesy of GENERAL MOTORS CORP.
