Installation Procedure

  1. Apply a light coating of lithium grease to the sockets if there is no grease in the sockets.
  2. Install the bulbs into the sockets.
  3. Install the lamp sockets to the back of the tail lamp.
  4. Install the tail lamp to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws to retain the tail lamp to the body.

    Tighten

    Tighten the tail lamp screws to 3 N.m (27 lb in).

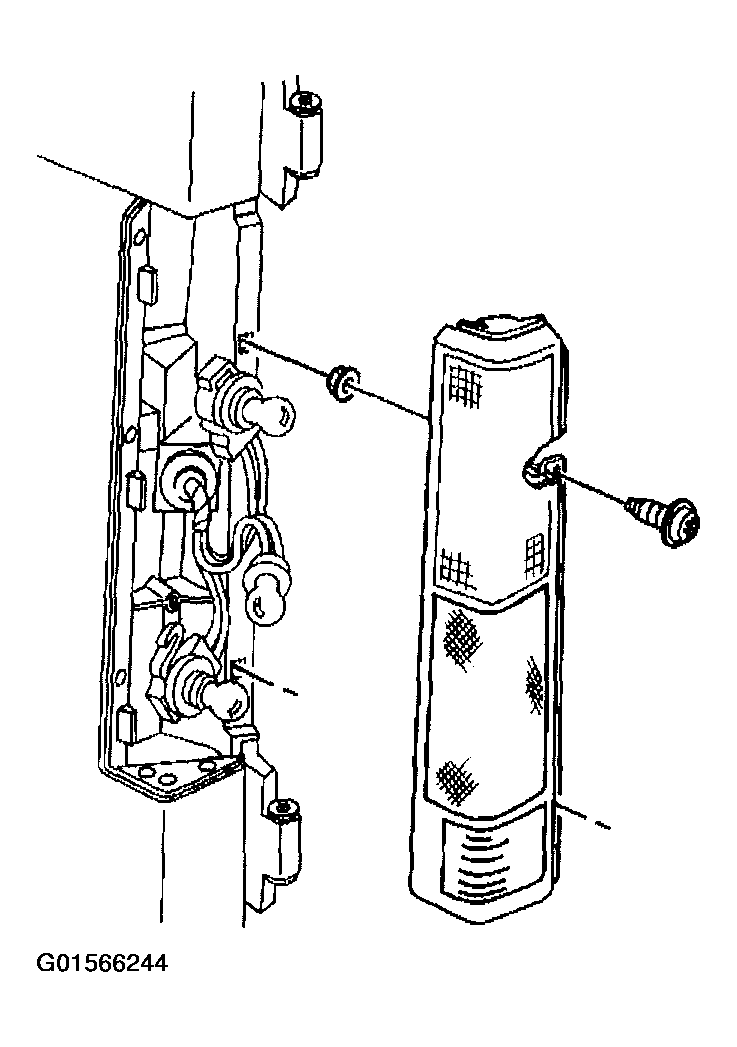

    Fig 1: Installing Tail Lamp
    G01566244Courtesy of GENERAL MOTORS CORP.
