Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable.
  2. Remove the retainer (3) from the brake pedal pin.
  3. Unsnap the switch (2) and pushrod (4) from the brake pedal (1) pin.

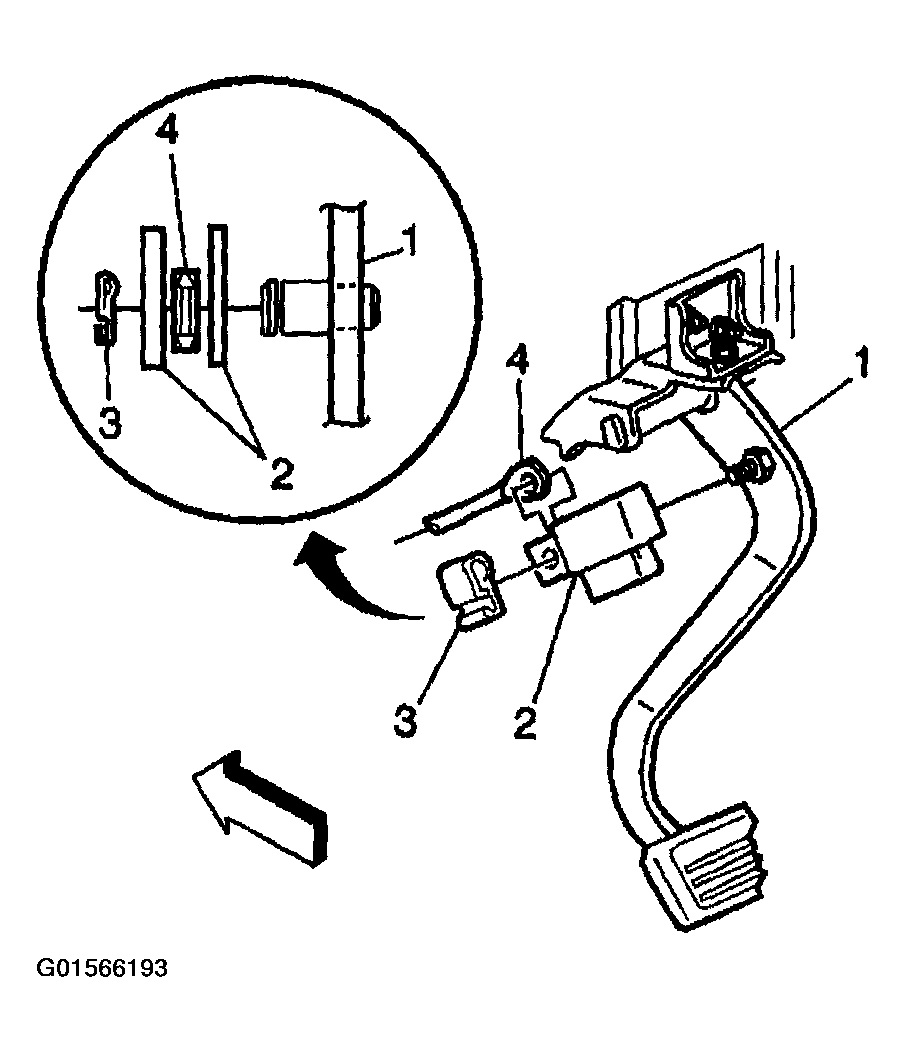

    Fig 1: Removing Stop Lamp Switch
    G01566193Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector.

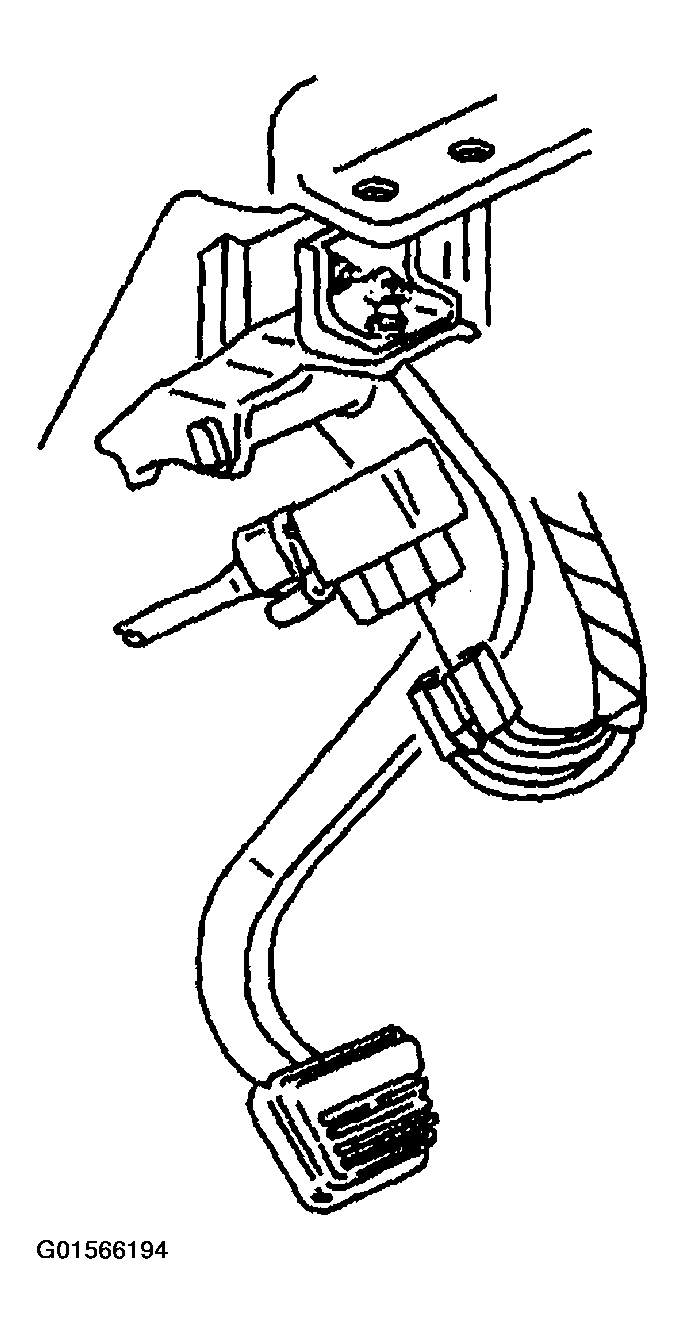

    Fig 2: Disconnecting Electrical Connector
    G01566194Courtesy of GENERAL MOTORS CORP.
