Installation Procedure

  1. Connect the electrical connector.

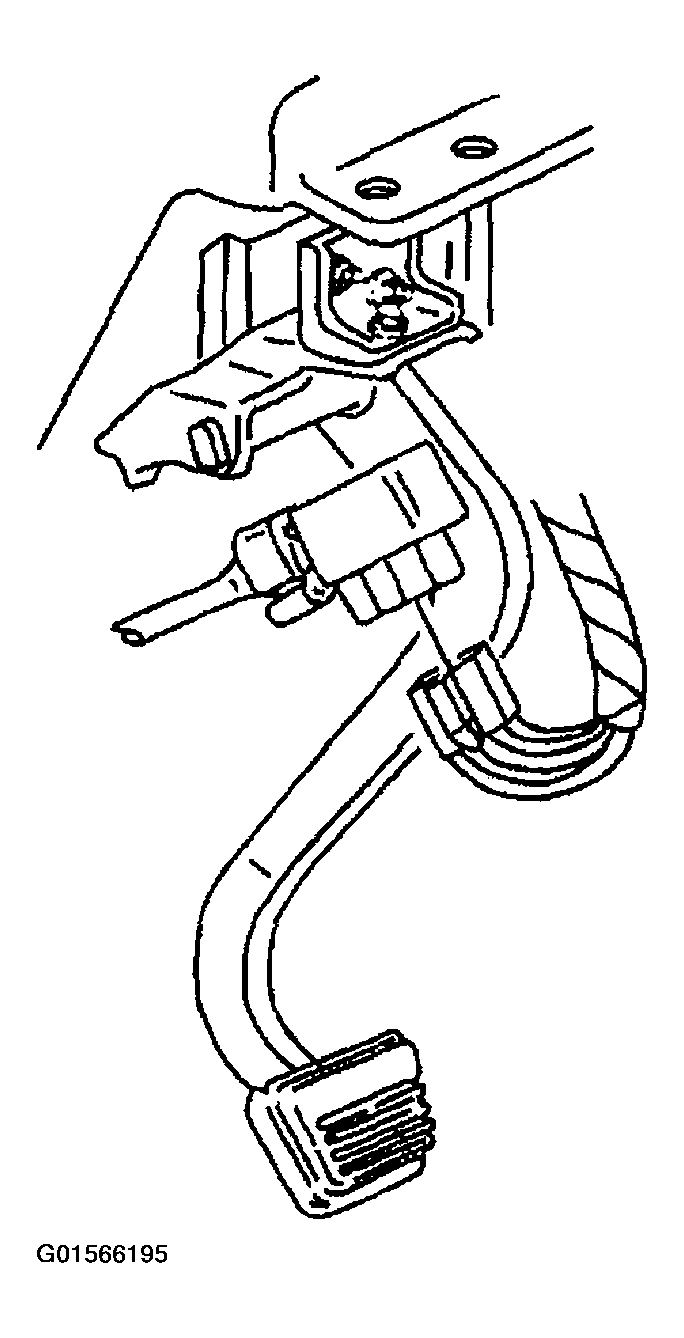

    Fig 1: Installing Electric Connectors
    G01566195Courtesy of GENERAL MOTORS CORP.
  2. Install the switch (2) and pushrod (4) onto the brake pedal (1) pin.
  3. Install the retainer (3) onto the brake pedal (1) pin.
  4. Connect the battery negative cable.

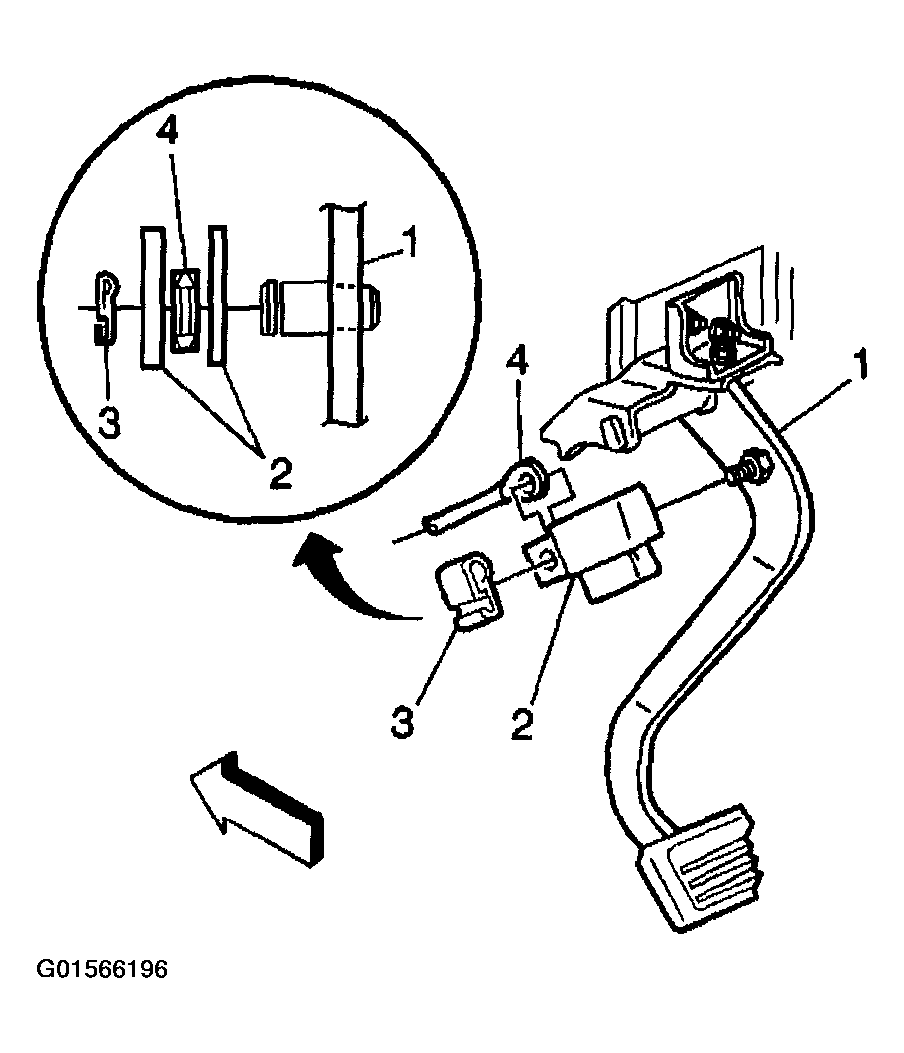

    Fig 2: Installing Stop Lamp Switch
    G01566196Courtesy of GENERAL MOTORS CORP.
