Removal Procedure

  1. Remove the screw that retains the lens.
  2. Gently pry off the lens.
  3. Pull out the bulb.

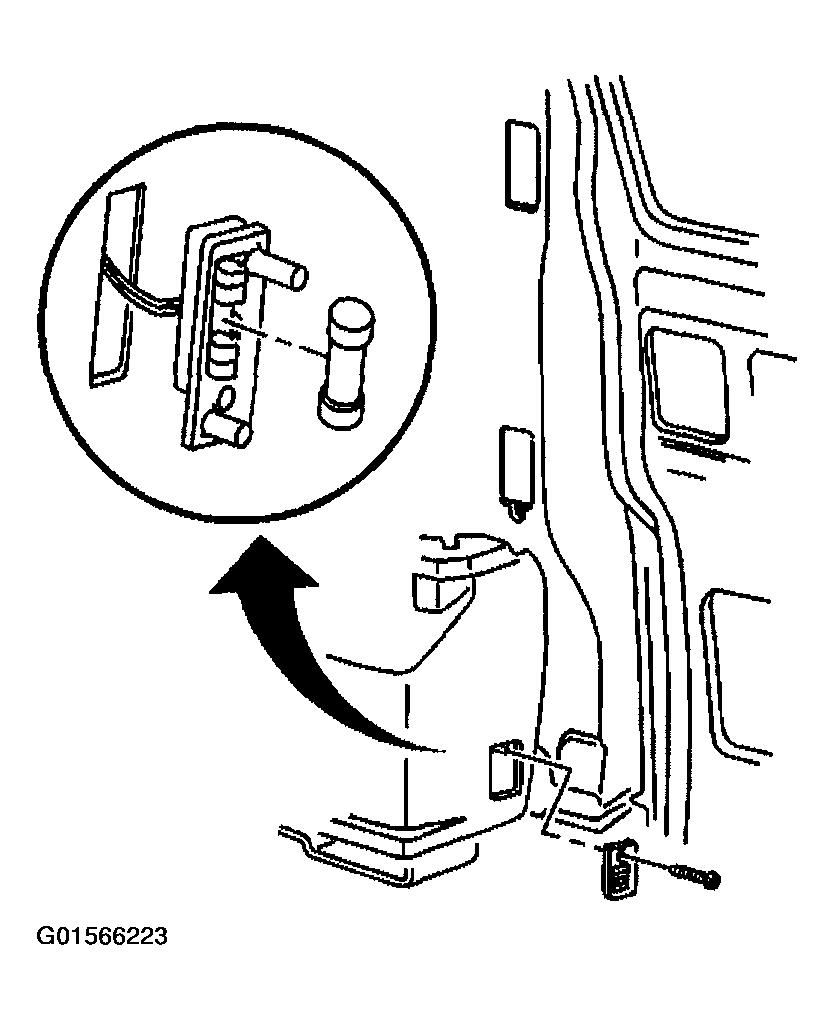

    Fig 1: Removing Stepwell Lamp
    G01566223Courtesy of GENERAL MOTORS CORP.
