Installation Procedure

  1. Install the bulb.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lens to the body with the screw

    Tighten

    Tighten the stepwell lamp body screw to 2 N.m (18 lb in).

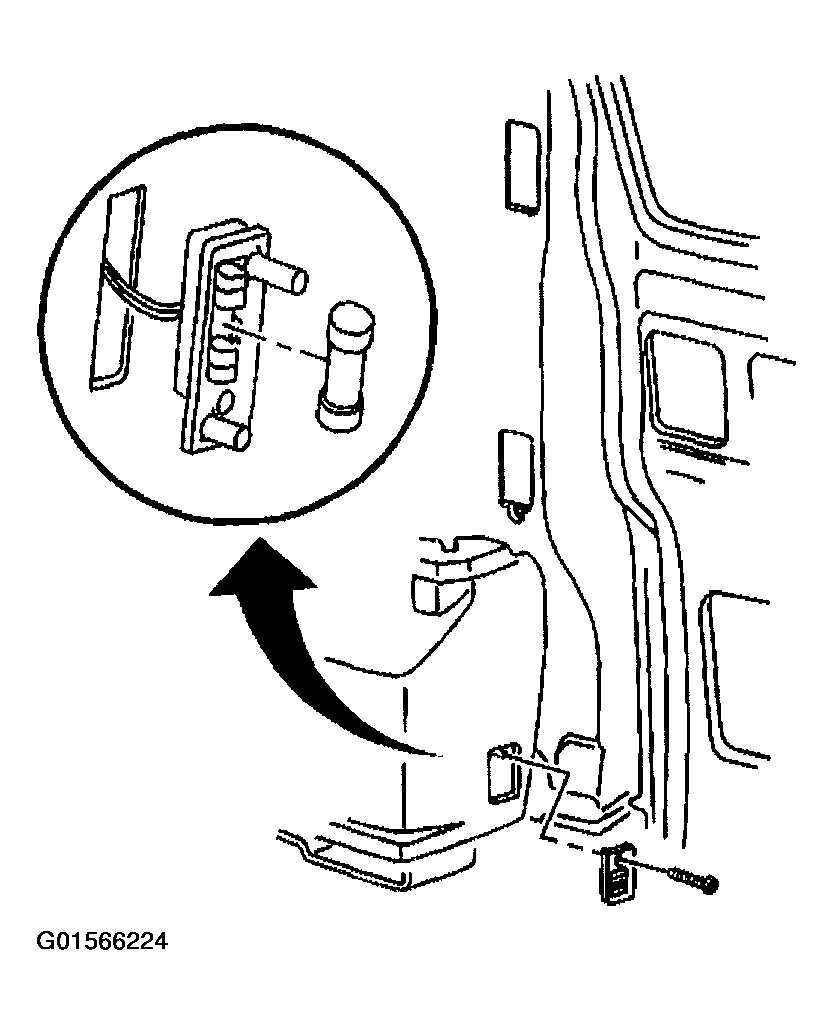

    Fig 1: Installing Stepwell Lamp
    G01566224Courtesy of GENERAL MOTORS CORP.
