Removal Procedure

  1. Turn OFF the headlamp switch.
  2. Remove the mounting screws.
  3. Remove the park/turn signal lamp from the vehicle.
  4. Remove the lamp sockets from the park/turn signal lamp housing.
  5. Remove the bulbs from the lamp sockets.

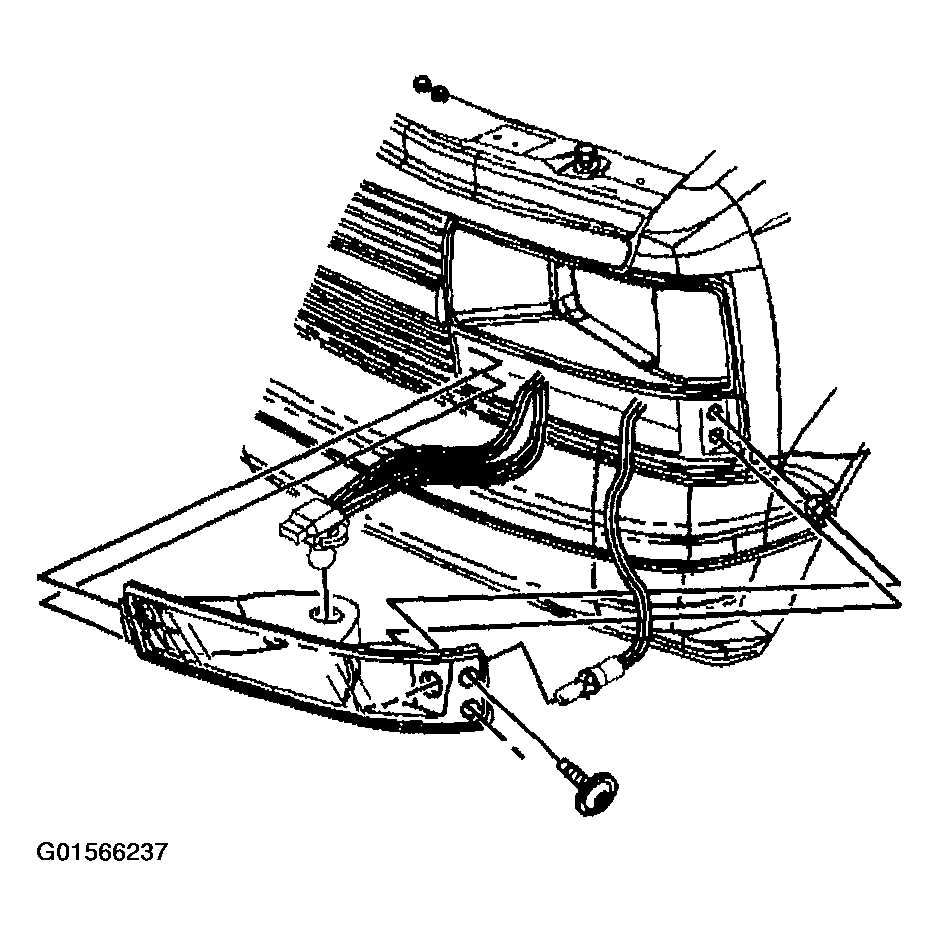

    Fig 1: Removing Park/Turn Signal Lamp
    G01566237Courtesy of GENERAL MOTORS CORP.
