Installation Procedure

  1. Install the bulbs into the lamp sockets.
  2. Install the lamp socket to the park/turn signal lamp housing.
  3. Install the park/turn signal lamp to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the mounting screws.

    Tighten

    Tighten the mounting screws to 1.4 N.m (12 lb in).

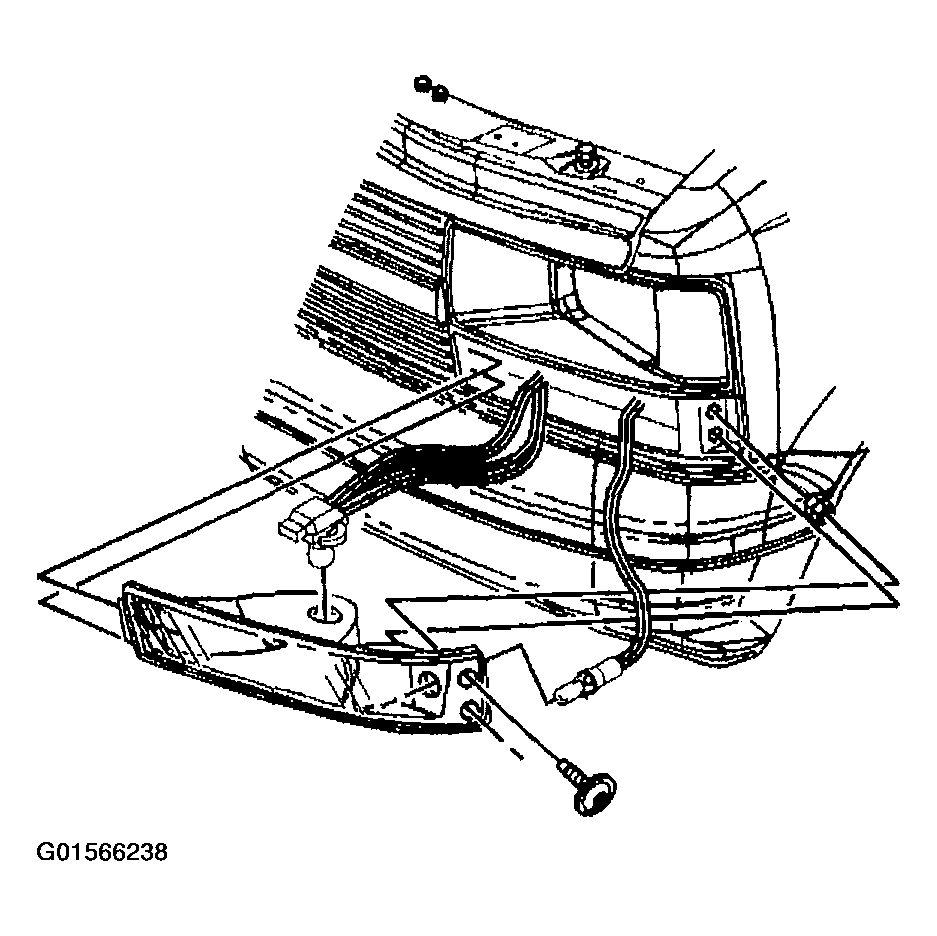

    Fig 1: Installing Park/Turn Signal Lamp
    G01566238Courtesy of GENERAL MOTORS CORP.
