Installation Procedure

  1. Install the bulb.
  2. Install the license lamp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the license lamp screws.

    Tighten

    Tighten the license lamp screws to 2 N.m (18 lb in).

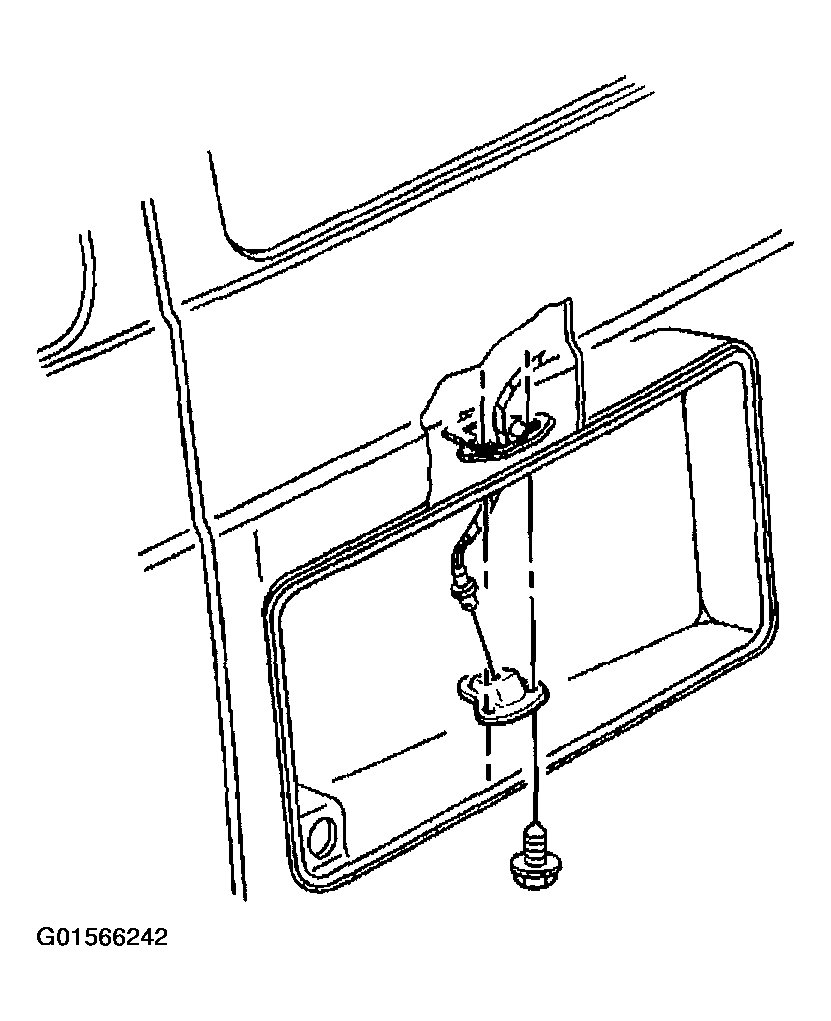

    Fig 1: Installing License Lamp
    G01566242Courtesy of GENERAL MOTORS CORP.
