Removal Procedure

  1. Open the instrument panel storage compartment
  2. Gently depress the tabs at the top and the bottom of the compartment lamp switch by using a small flat-bladed tool.
  3. Remove the compartment lamp switch.
  4. Disconnect the electrical connector from the switch.
  5. Pull the bulb from the compartment lamp switch.

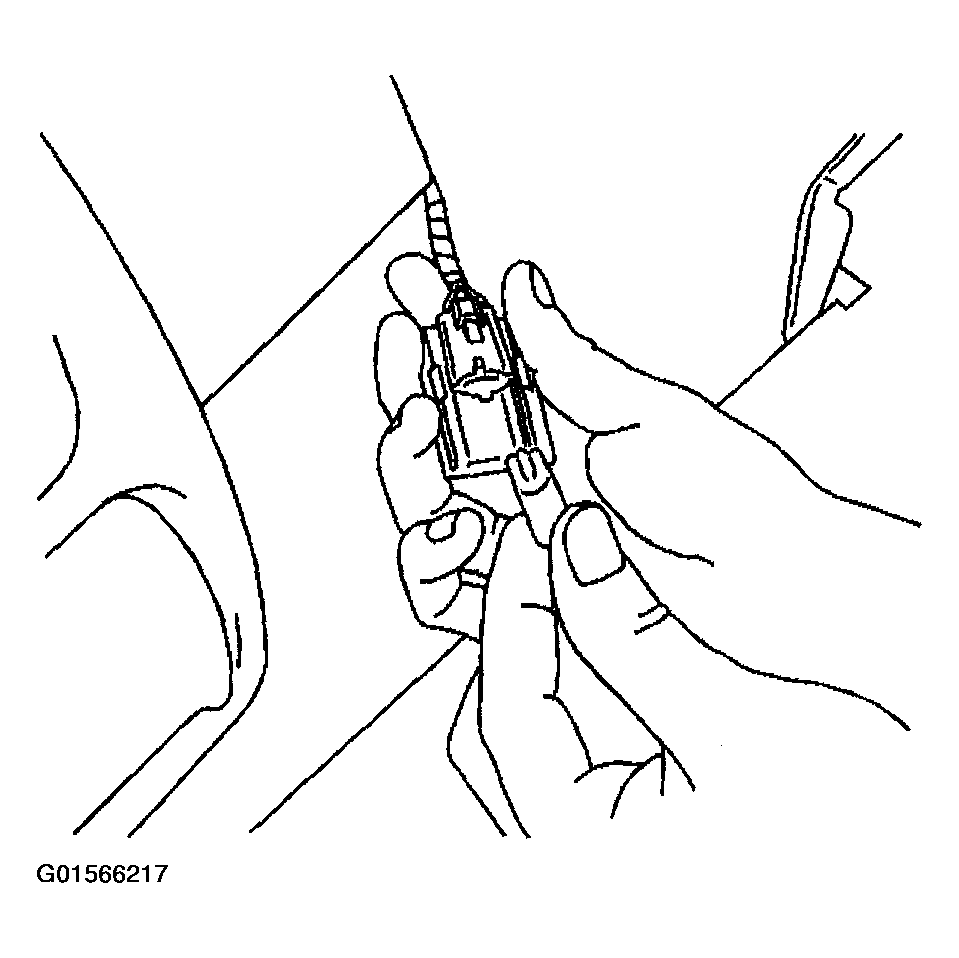

    Fig 1: Removing Instrument Panel (I/P) Storage Compartment Lamp
    G01566217Courtesy of GENERAL MOTORS CORP.
