Removal Procedure

  1. Remove the instrument cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

    Important:  Bulbs and sockets are one-piece units and should not be separated.

  2. Remove the socket and bulb assembly from the back of the cluster.

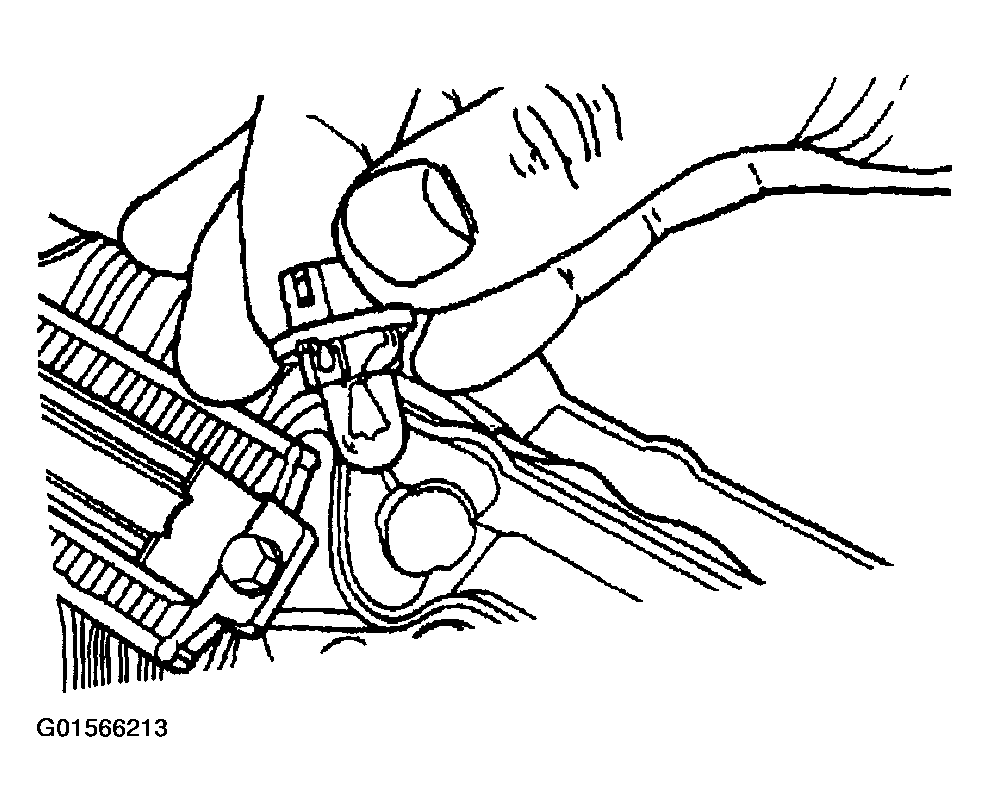

    Fig 1: Removing Instrument Panel (I/P) Lamp
    G01566213Courtesy of GENERAL MOTORS CORP.
