Removal Procedure

  1. Remove the center high-mounted stop lamp retaining screws.
  2. Gently pull the electrical connector through the top of the roof.
  3. Disconnect the electrical connector.
  4. Remove the high-mounted stop lamp from the vehicle.

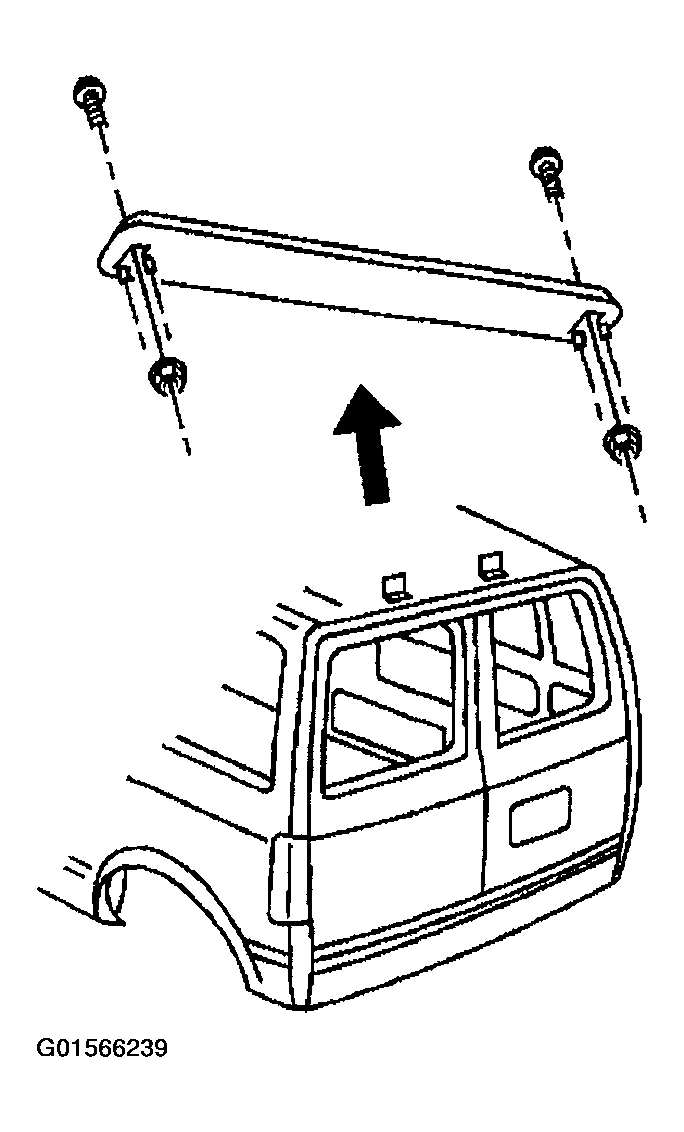

    Fig 1: Removing High Mounted Stop Lamp
    G01566239Courtesy of GENERAL MOTORS CORP.
