Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable.
  2. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel and Gages.
  3. Remove the switch from the plate by using the following
    1. Release the retaining tabs on the sides of the switch.
    2. Pull the switch out of the plate.
    3. Disconnect the electrical connector(s) at the back of the headlamp switch.

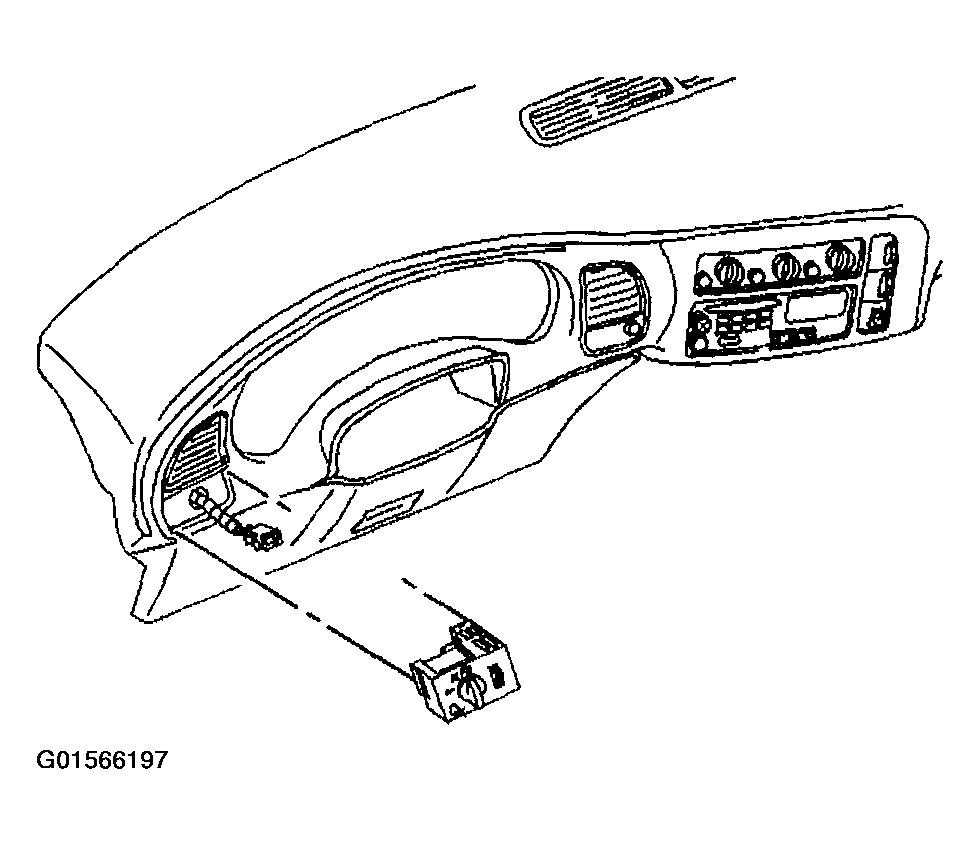

      Fig 1: Replacement Of Head Lamp Switch
      G01566197Courtesy of GENERAL MOTORS CORP.
