Installation Procedure

  1. Connect the electrical connector(s) to the back of the switch.
  2. Install the headlamp switch to the plate by snapping the switch into place.
  3. Install the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel and Gages.
  4. Connect the battery negative cable.

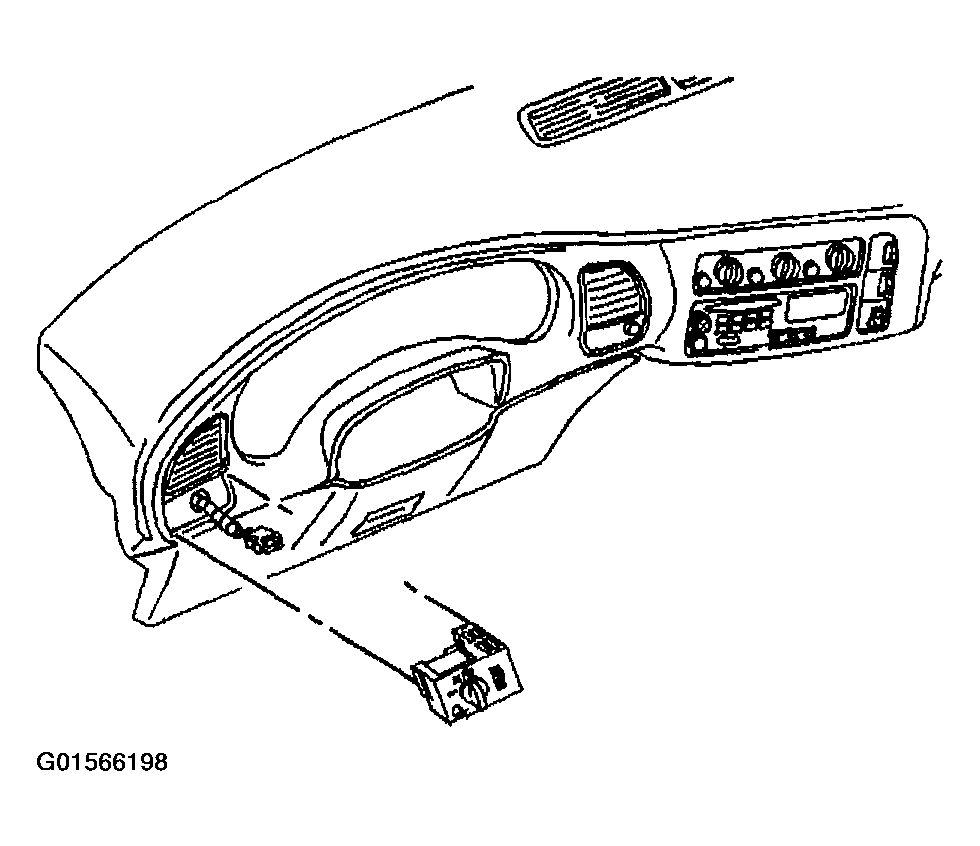

    Fig 1: Installing Headlamp Switch
    G01566198Courtesy of GENERAL MOTORS CORP.
