Installation Procedure

  1. Connect the headlamp electrical connector.
  2. Install the headlamp retaining ring.
  3. Install the headlamp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the headlamp retaining ring screws.

    Tighten

    Tighten headlamp retaining ring screws 8 N.m (70 lb in).

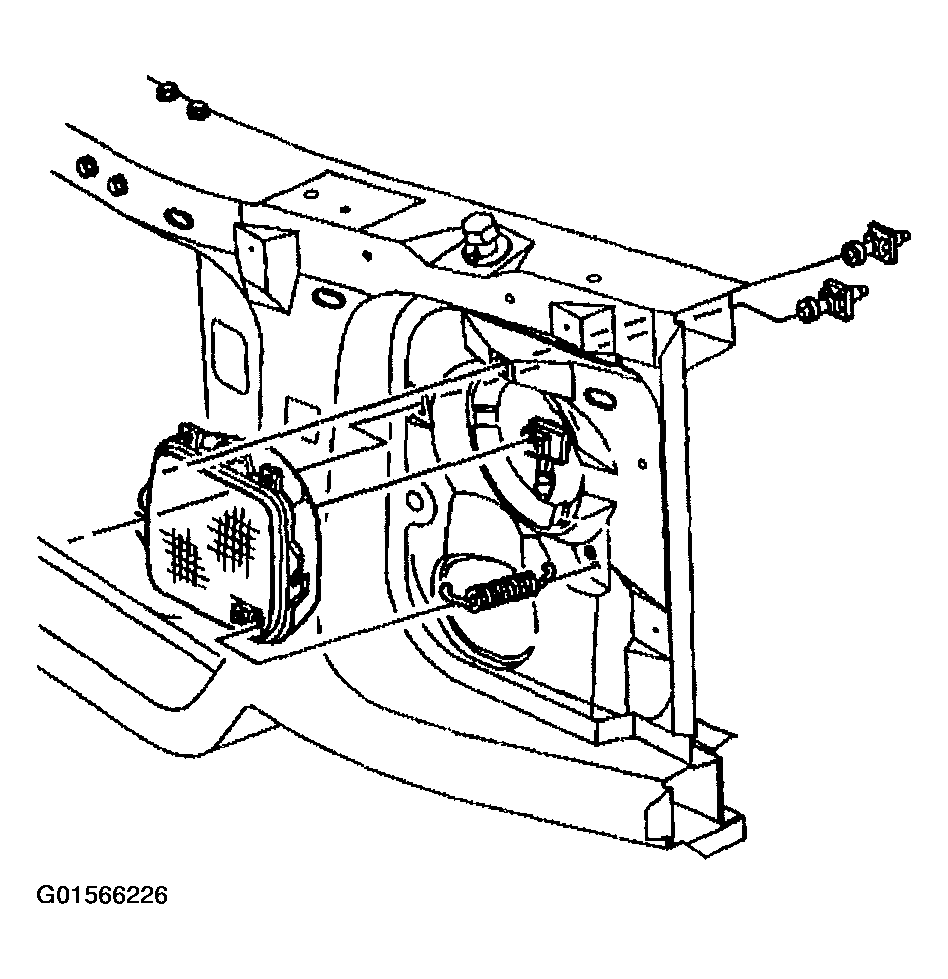

    Fig 1: Headlamp Installation (Sealed Beam)
    G01566226Courtesy of GENERAL MOTORS CORP.
