Removal Procedure

  1. Turn off the headlamp switch.
  2. Open the hood.
  3. Remove the screw that retains the corner capsule to the composite headlamp.

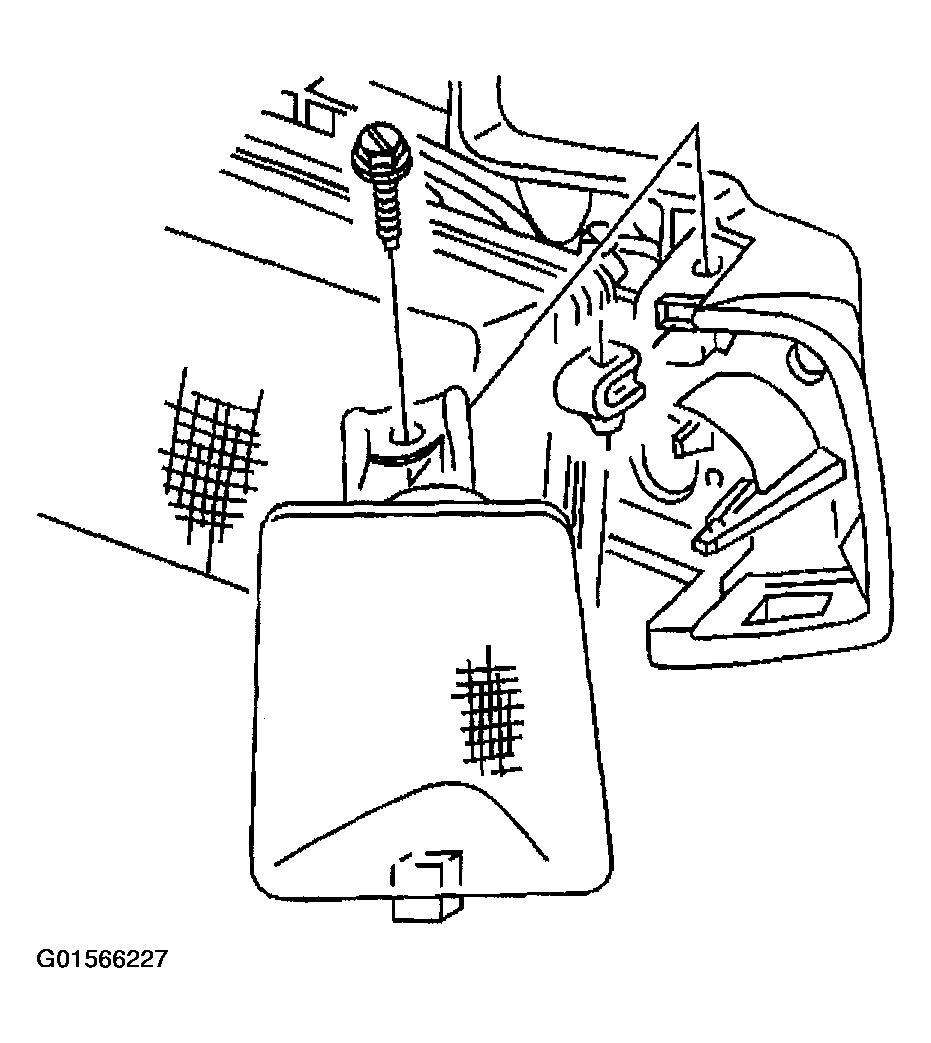

    Fig 1: Corner Capsule To Composite Headlamp Screw
    G01566227Courtesy of GENERAL MOTORS CORP.
  4. Remove the three bolts that retain the composite headlamp.
  5. Remove the headlamp.
  6. Disconnect the headlamp electrical connectors.
  7. Remove the headlamp bulbs.

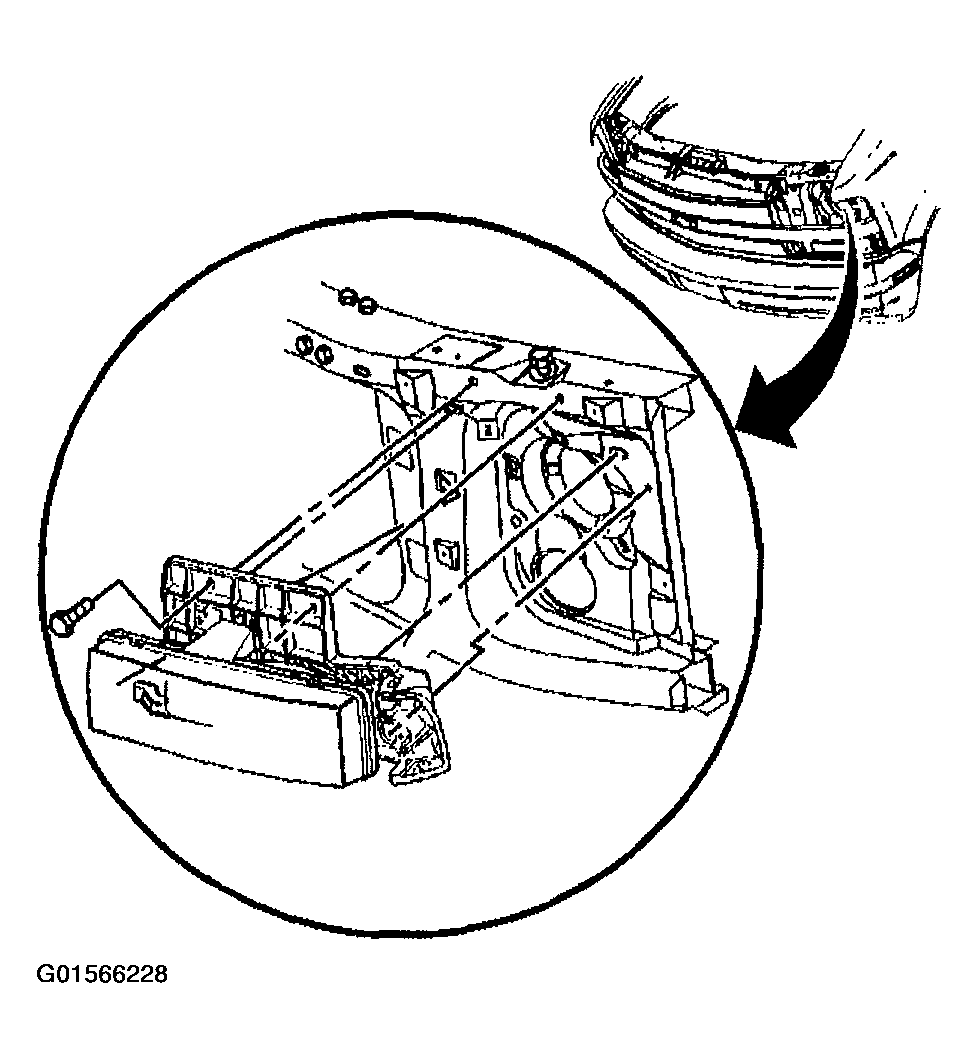

    Fig 2: Removing Composite Headlamp
    G01566228Courtesy of GENERAL MOTORS CORP.
