Installation Procedure

  1. Install the headlamp bulbs.
  2. Connect the headlamp electrical connectors.
  3. Install the headlamp assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts in order to retain the composite headlamp.

    Tighten

    Tighten the composite headlamp bolts to 12.5 N.m (110 lb in).

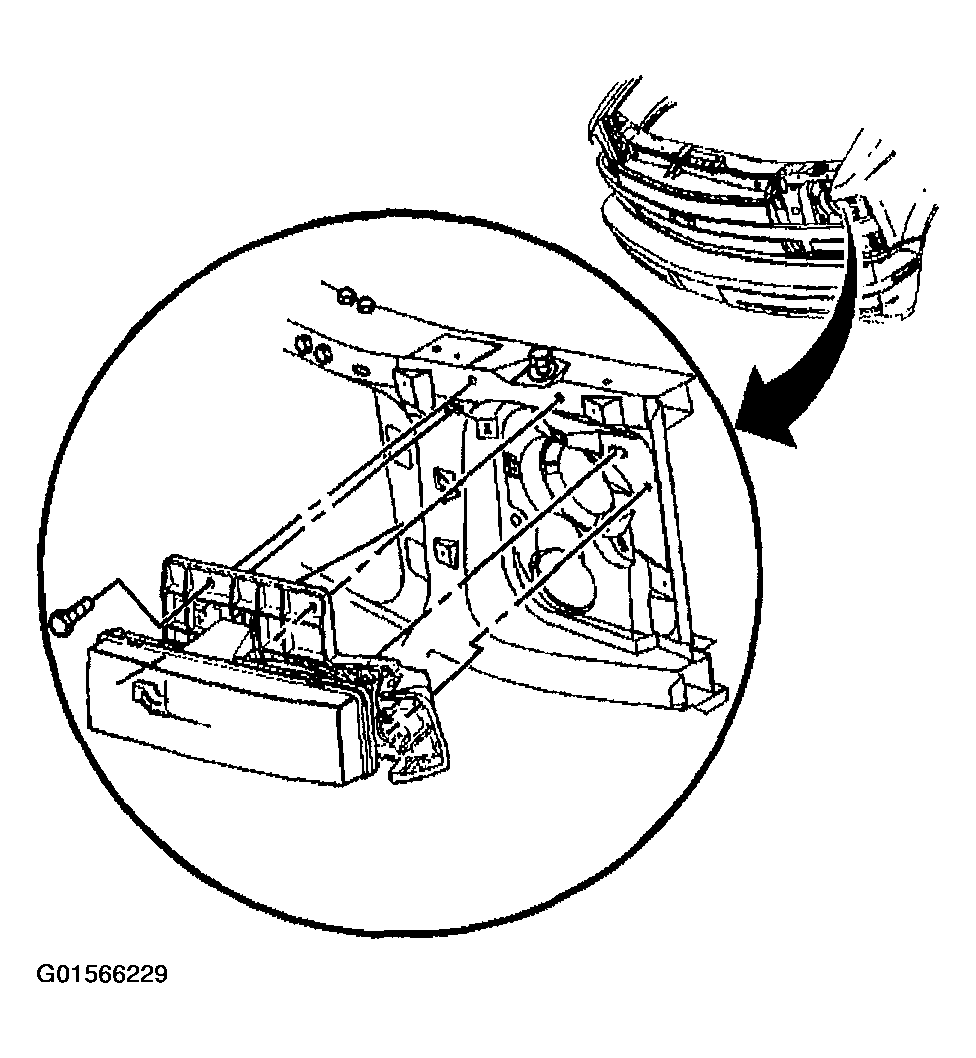

    Fig 1: Installing Composite Headlamp
    G01566229Courtesy of GENERAL MOTORS CORP.
  5. Install the corner capsule.
  6. Install the corner capsule screw.

    Tighten

    Tighten the corner capsule screw to 5 N.m (44 lb in).

  7. Close the hood.

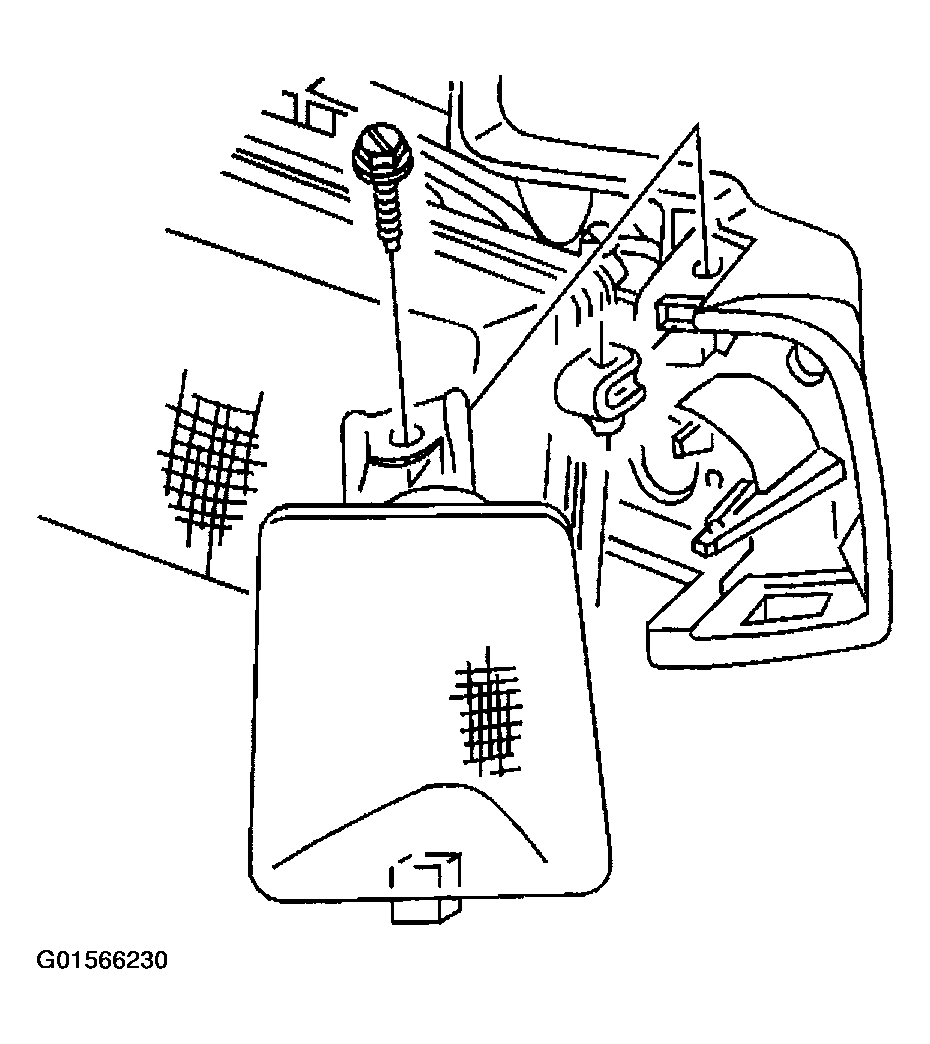

    Fig 2: Corner Capsule To Composite Headlamp Screw
    G01566230Courtesy of GENERAL MOTORS CORP.
