Removal Procedure

  1. Open the driver door.
  2. In order to remove the flasher module (1) from the instrument panel (IP) convenience center, simultaneously perform the following:
    1. 2.1. Lift upward on the tab that retains the flasher module to the IP convenience center.
    2. 2.2. Remove the flasher module from the IP convenience center.

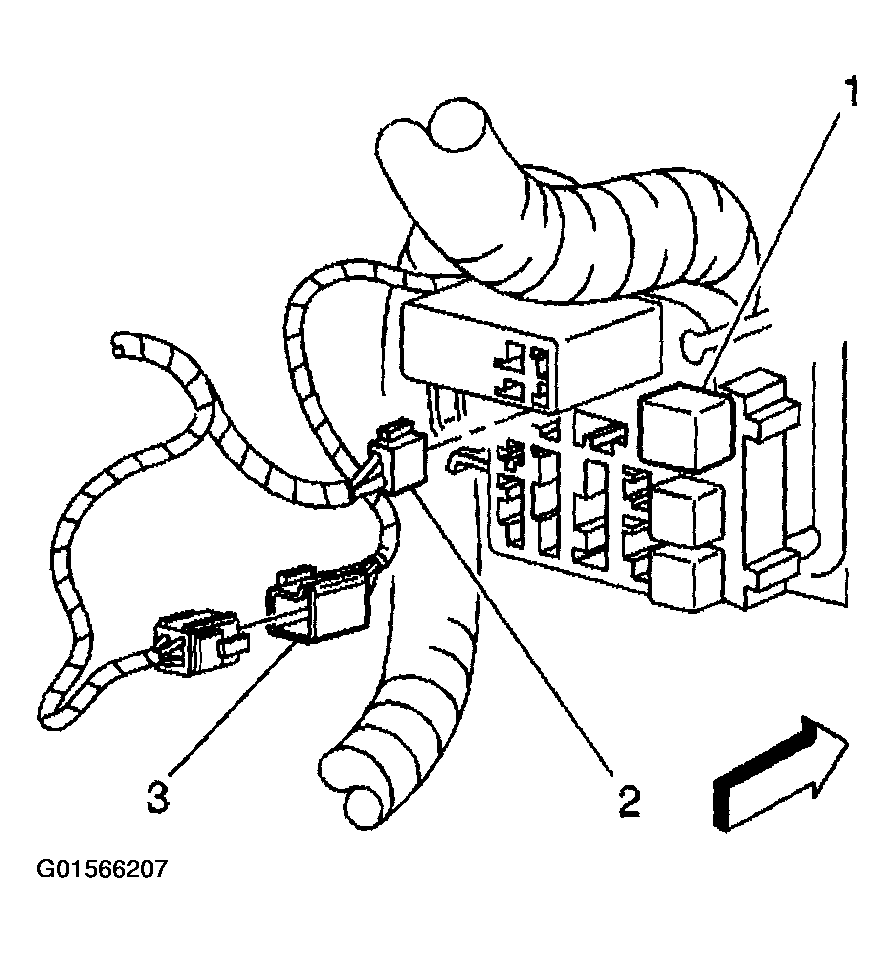

      Fig 1: Removing Hazard And Turn Signal Flasher
      G01566207Courtesy of GENERAL MOTORS CORP.
