Installation Procedure

  1. Position the flasher module (1) to the IP convenience center.
  2. Engage the flasher module until fully seated and the retaining tab clicks.
  3. Close the driver door.

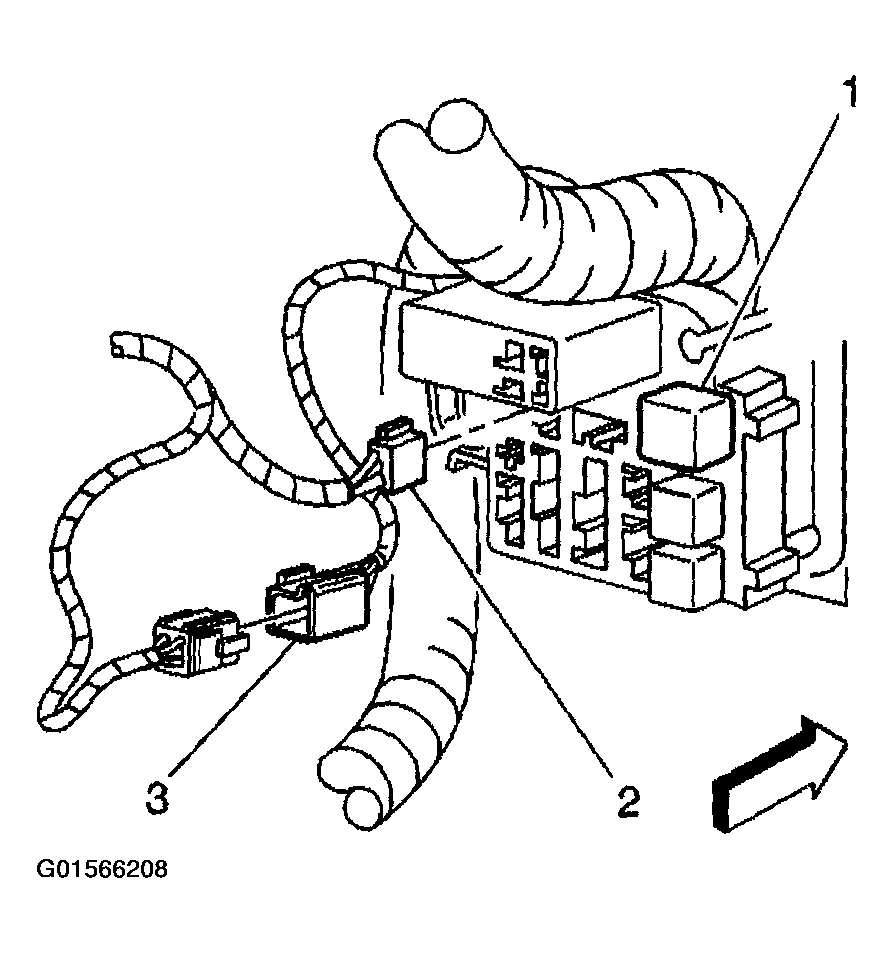

    Fig 1: Installing Hazard And Turn Signal Flasher
    G01566208Courtesy of GENERAL MOTORS CORP.
