Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Repair Instructions >> Dome and Reading Lamp Bulb Replacement >> Removal Procedure

Removal Procedure

  1. Release the tab on one end of the lens.
  2. Remove the lens by swinging the lens downward.
  3. Remove the bulb from the assembly by pulling the bulb straight down.

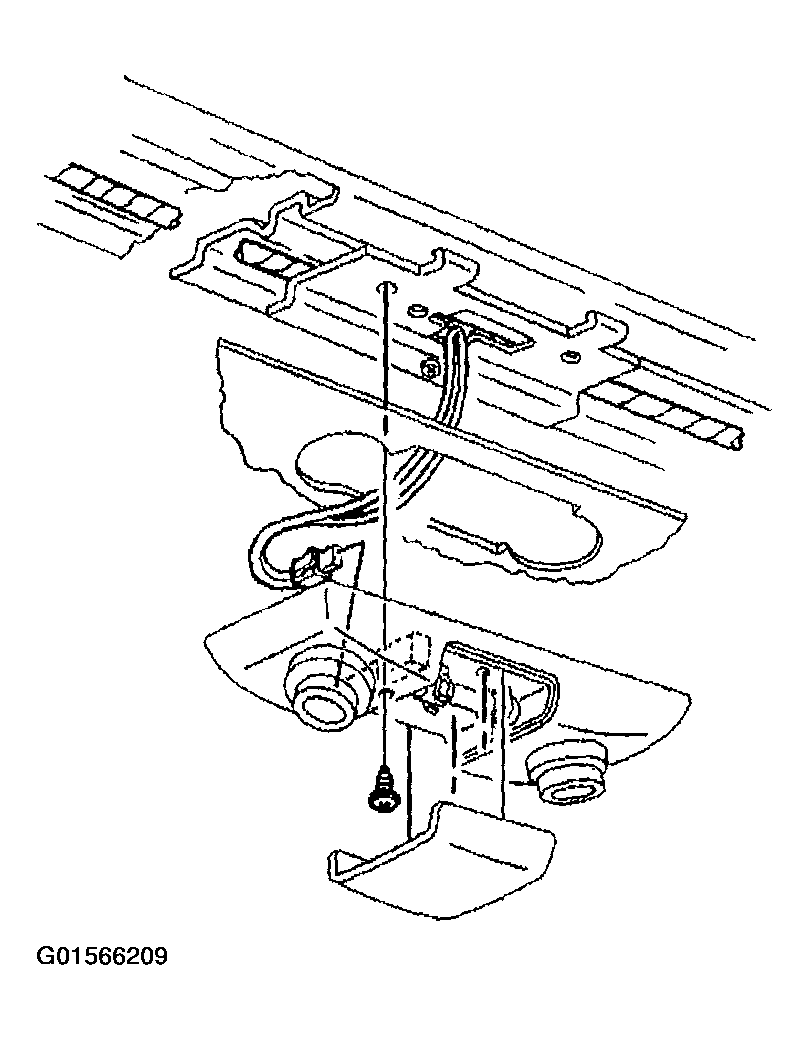

    Fig 1: Removing Dome And Reading Lamp Bulb
    G01566209Courtesy of GENERAL MOTORS CORP.
