Installation Procedure

  1. Push the bulb up into the contacts/retainers.
  2. Align the tabs in the lens with the slots in the assembly.
  3. Push the lens into place.

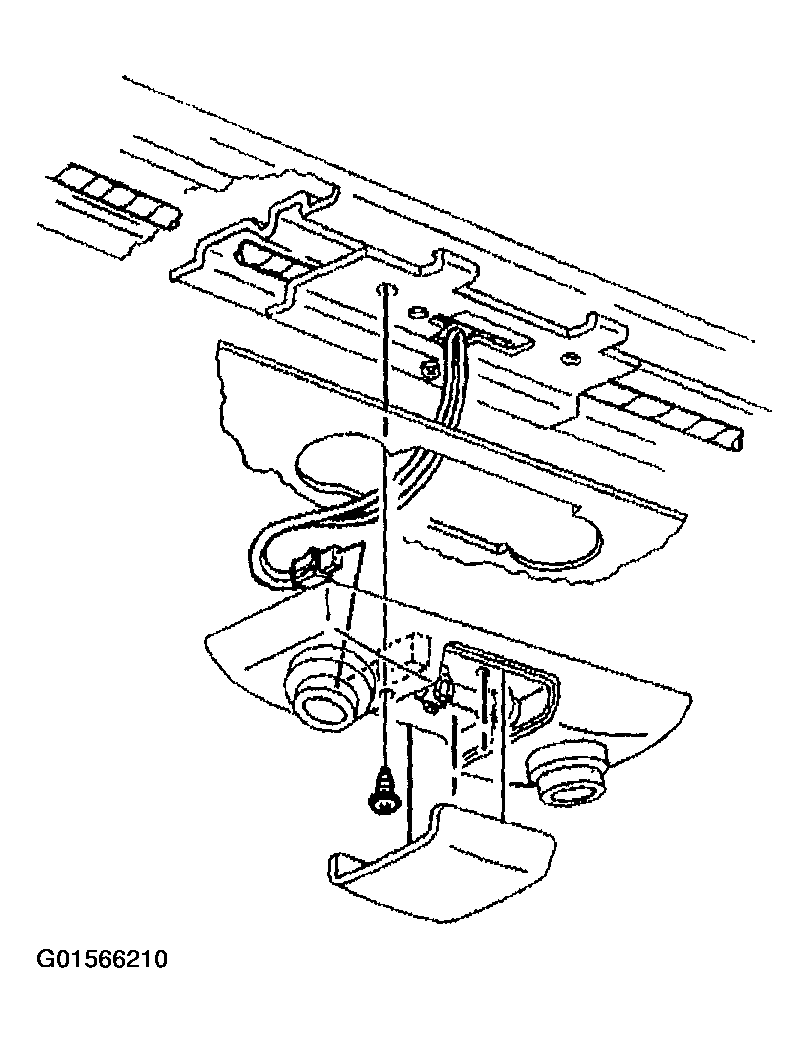

    Fig 1: Installing Dome And Reading Lamp Bulb
    G01566210Courtesy of GENERAL MOTORS CORP.
