Removal Procedure

  1. Press in on the long sides of the lens.
  2. Remove the lens.
  3. Remove the bulb.
  4. Gently pry off the housing.
  5. Disconnect the electrical connectors.
  6. Squeeze the clip tangs together at each clip and push the clip connector up through the housing.

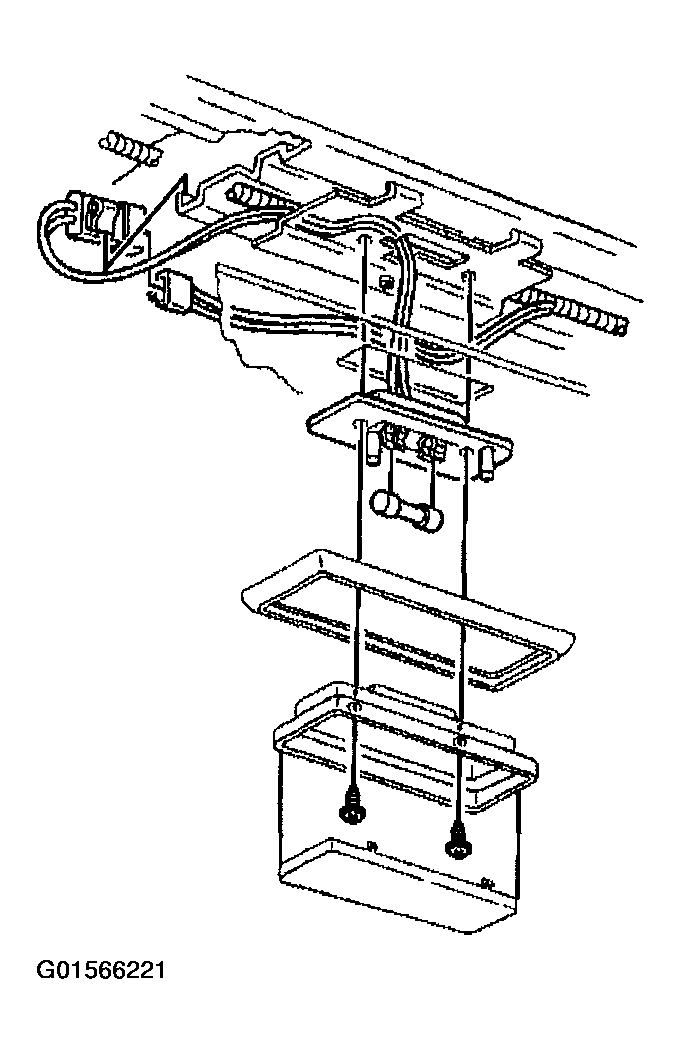

    Fig 1: Removing Dome Lamp
    G01566221Courtesy of GENERAL MOTORS CORP.
