Installation Procedure

  1. Connect the electrical connectors to the housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the housing to the roof inner trim panel with 2 screws.

    Tighten

    Tighten the dome lamp housing screws to 2 N.m (18 lb in).

  3. Install the bulb.
  4. Install the lens.

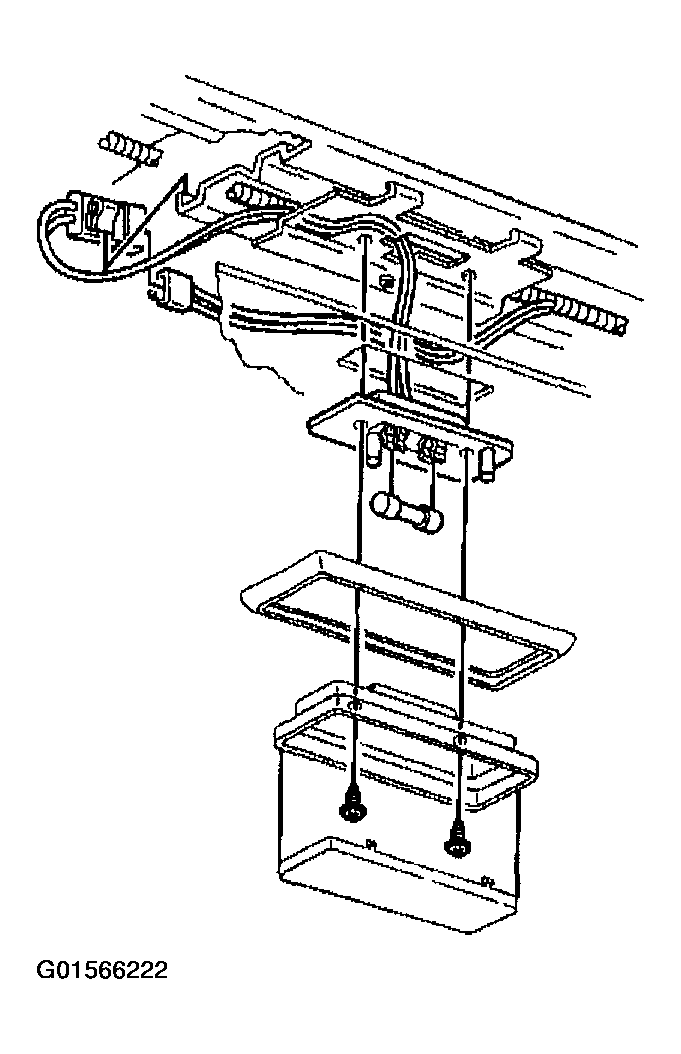

    Fig 1: Installing Dome Lamp
    G01566222Courtesy of GENERAL MOTORS CORP.
