Removal Procedure

  1. Remove the body side front lower trim panel. Refer to TRIM PANEL VENT REPLACE - BODY SIDE FRONT LOWER in Interior Trim.
  2. Remove the screw that retains the diode to the body lock pillar.
  3. Disconnect the electrical connector from the diode.
  4. Remove the diode from the vehicle.

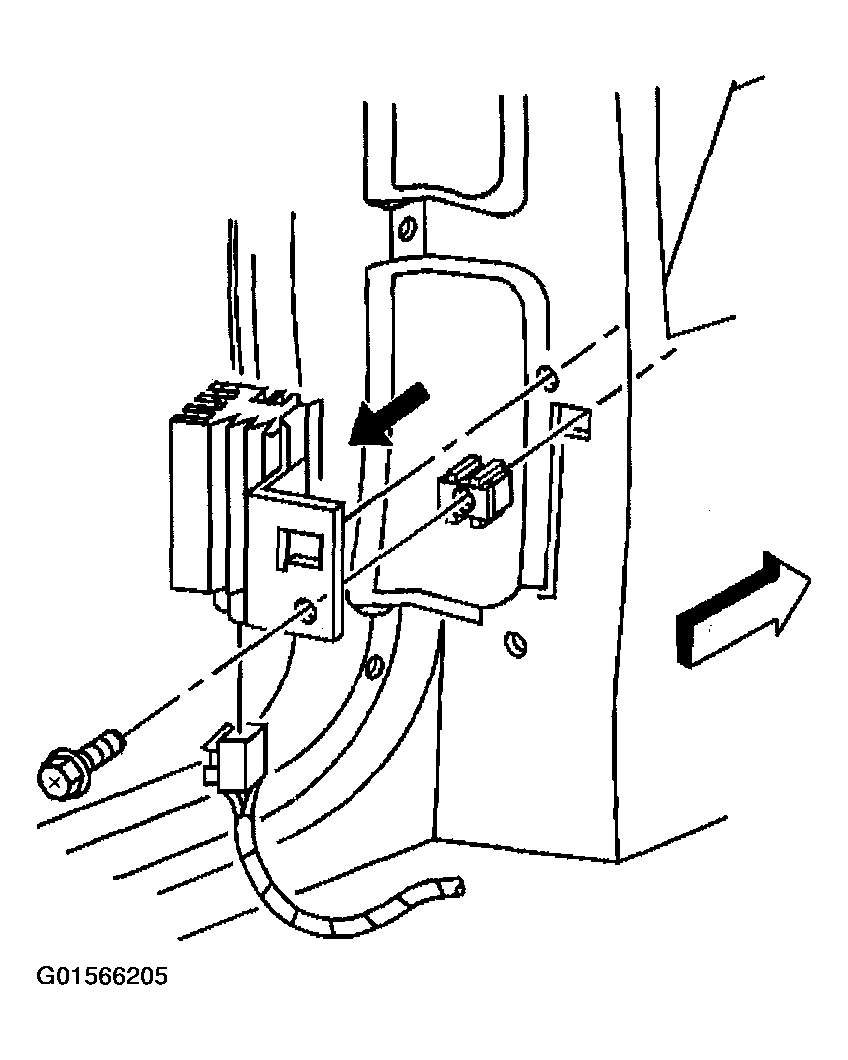

    Fig 1: Removing Daytime Running Lamps Diode
    G01566205Courtesy of GENERAL MOTORS CORP.
