Installation Procedure

  1. Install the diode to the vehicle.
  2. Connect the electrical connector to the diode.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screw that retains the diode to the body lock pillar.

    Tighten

    Tighten the screw that retains the diode to the body lock pillar to 6 N.m (53 lb in).

  4. Install the body side front lower trim panel. Refer to TRIM PANEL VENT REPLACE - BODY SIDE FRONT LOWER in Interior Trim.

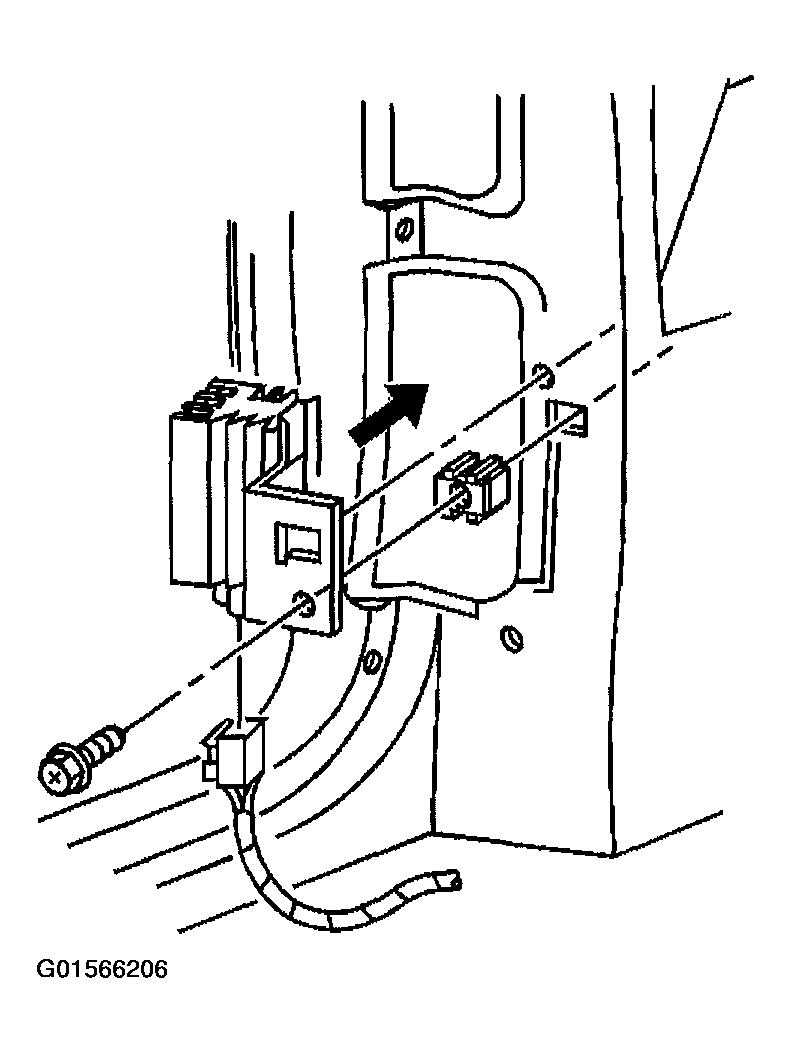

    Fig 1: Installing Daytime Running Lamps Diode
    G01566206Courtesy of GENERAL MOTORS CORP.
