Removal Procedure

  1. Lift upward on the center defogger grille located in center of the dash to expose the DRL photo sensor (1) retainer.
  2. Turn the DRL photo sensor counterclockwise 1/4 turn in order to remove.
  3. Disconnect the electrical connection from the DRL photo sensor (1).

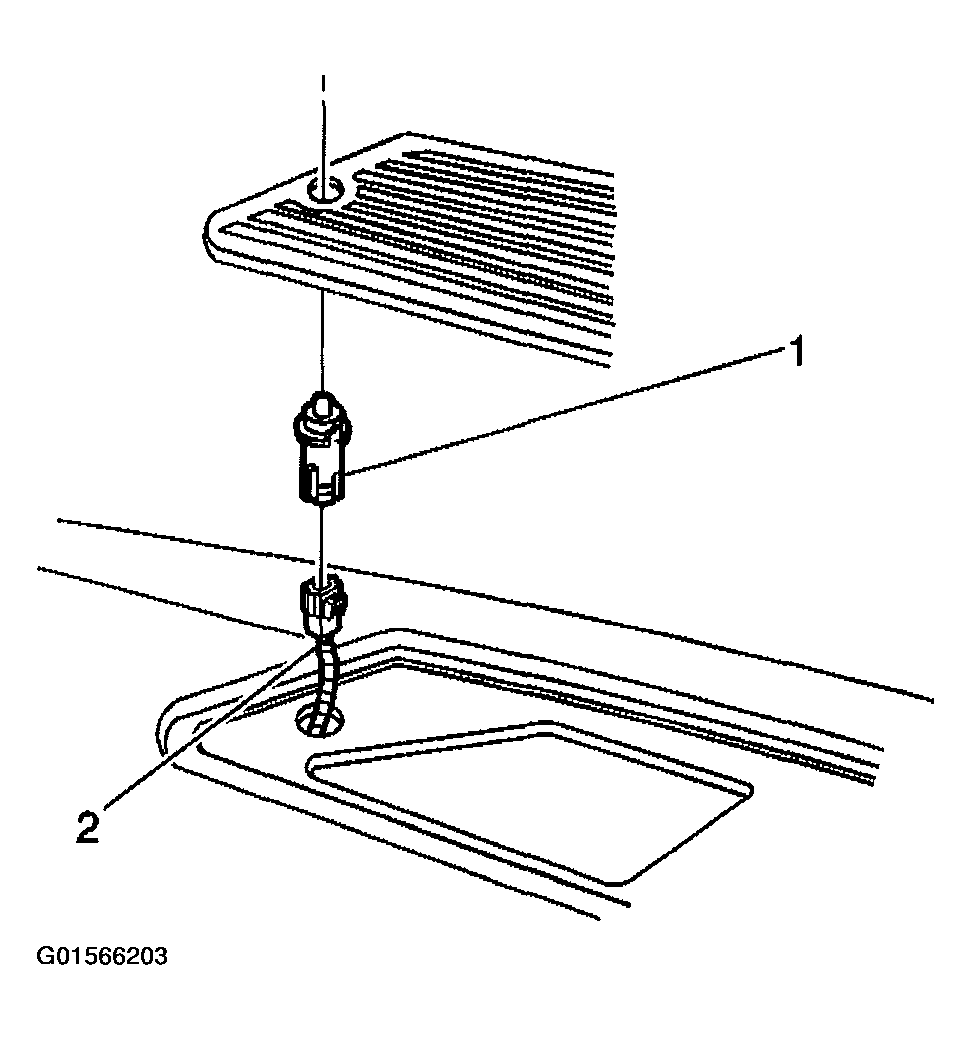

    Fig 1: Removing Ambient Light Sensor
    G01566203Courtesy of GENERAL MOTORS CORP.
