Removal Procedure

  1. Gently push the lens or reflector toward the front edge of the door.
  2. Gently pry the rear of the lens or reflector away from the door by using a small flat bladed tool.
  3. Pivot the lens or reflector from the door in order to clear the retaining tab at the front edge.
  4. Remove the bulb. (if equipped).
  5. Remove the lens or reflector from the vehicle.

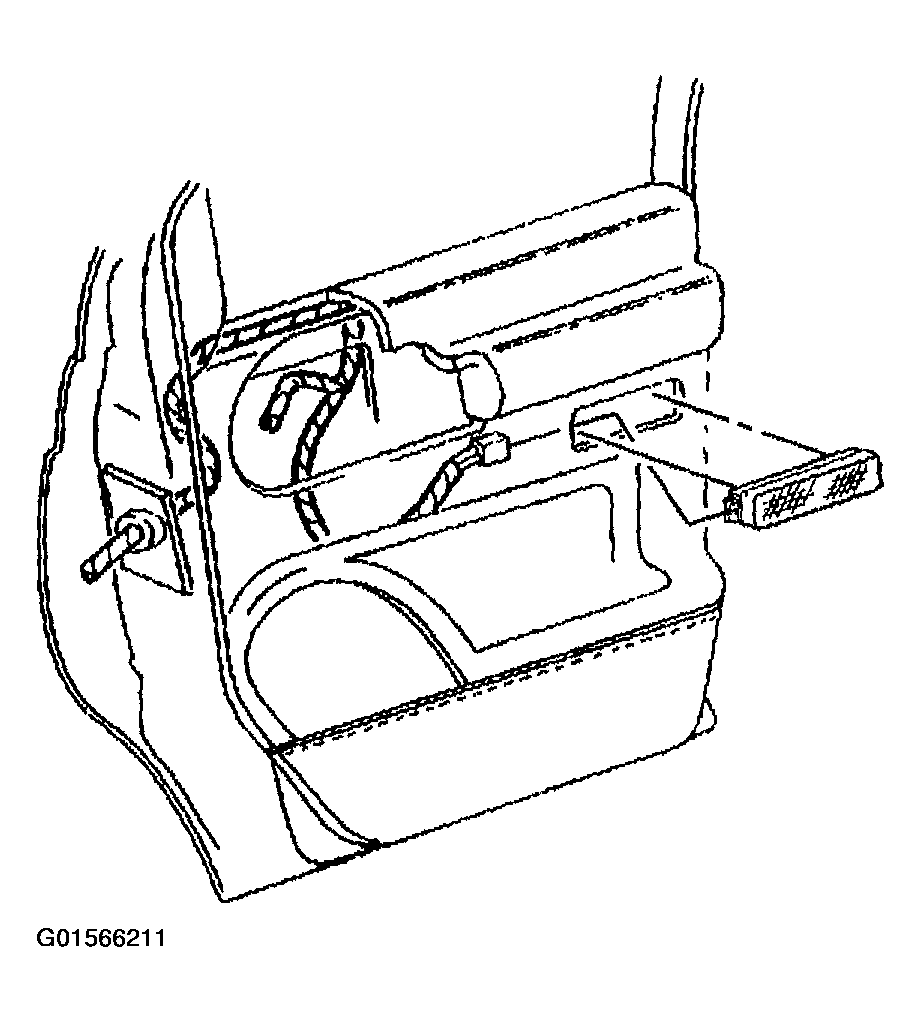

    Fig 1: Removing Courtesy Lamp/Reflector
    G01566211Courtesy of GENERAL MOTORS CORP.
