Removal Procedure

  1. Unscrew the center of the lamp lens with a suitable flat bladed tool while pressing up on the lamp assembly.
  2. Remove the lamp assembly.
  3. Remove the bulb from the socket.

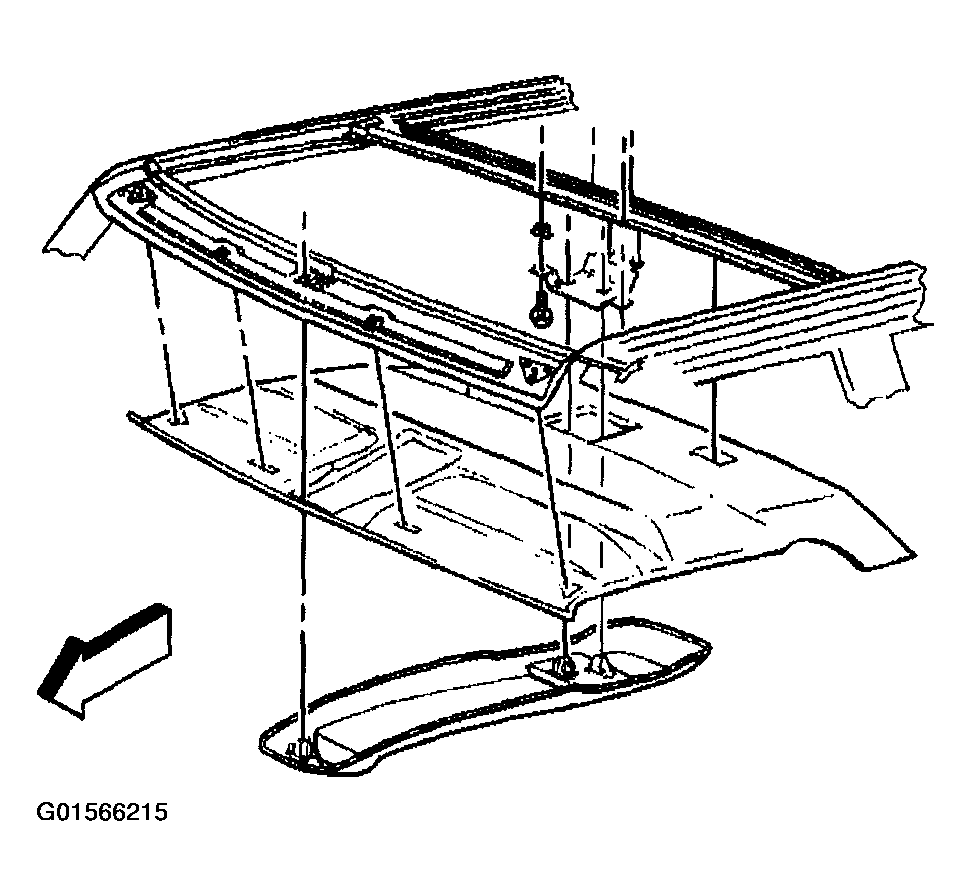

    Fig 1: Removing Courtesy Lamp (Overhead Console)
    G01566215Courtesy of GENERAL MOTORS CORP.
