Installation Procedure

  1. Install the new lamp in the assembly.
  2. Install the lamp assembly into the cavity.
  3. Turn the lamp assembly in order to latch the assembly into place.

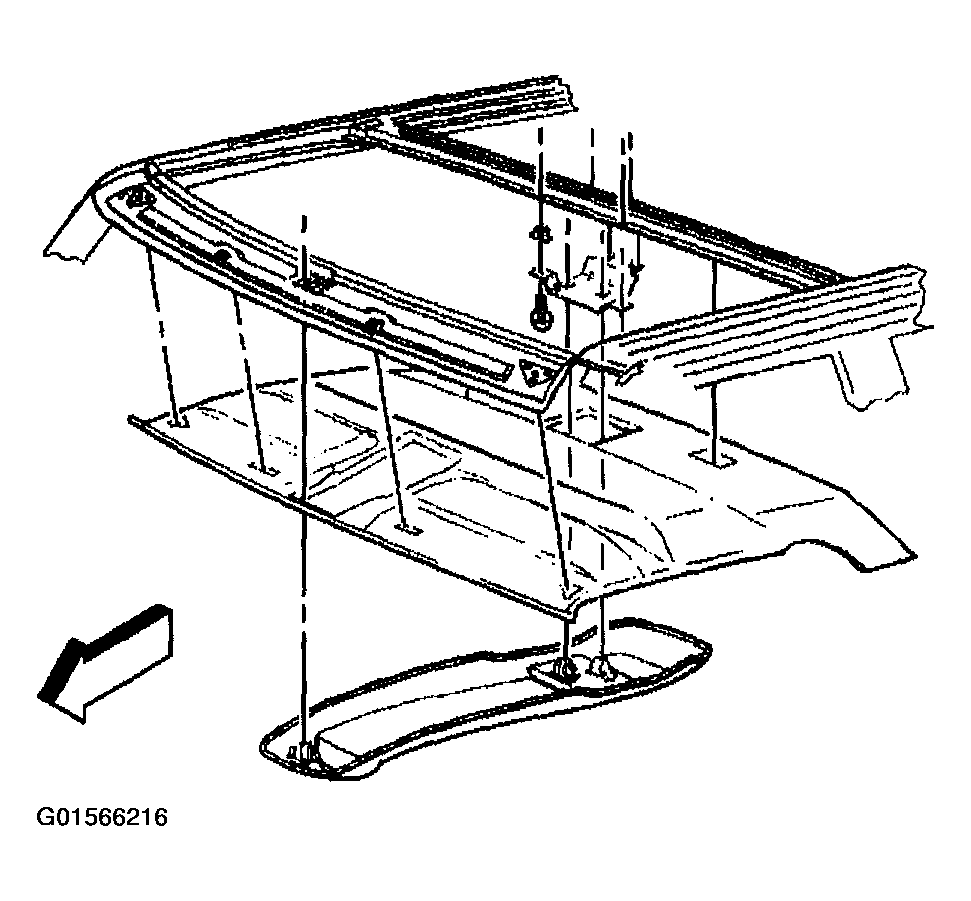

    Fig 1: Installing Courtesy Lamp (Overhead Console)
    G01566216Courtesy of GENERAL MOTORS CORP.
