Tail, Marker, and License Lamps Always On

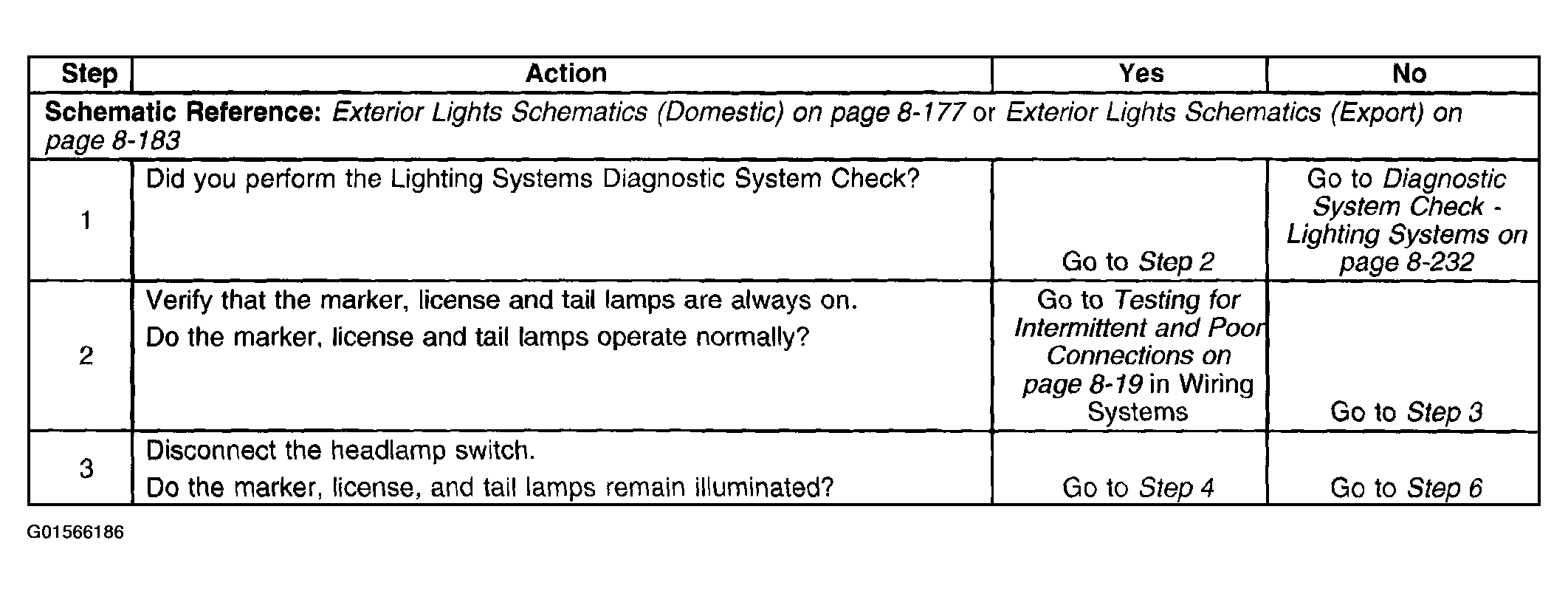

Fig 1: Tail, Marker, And License Lamps Always On (1 Of 2)
G01566186Courtesy of GENERAL MOTORS CORP.

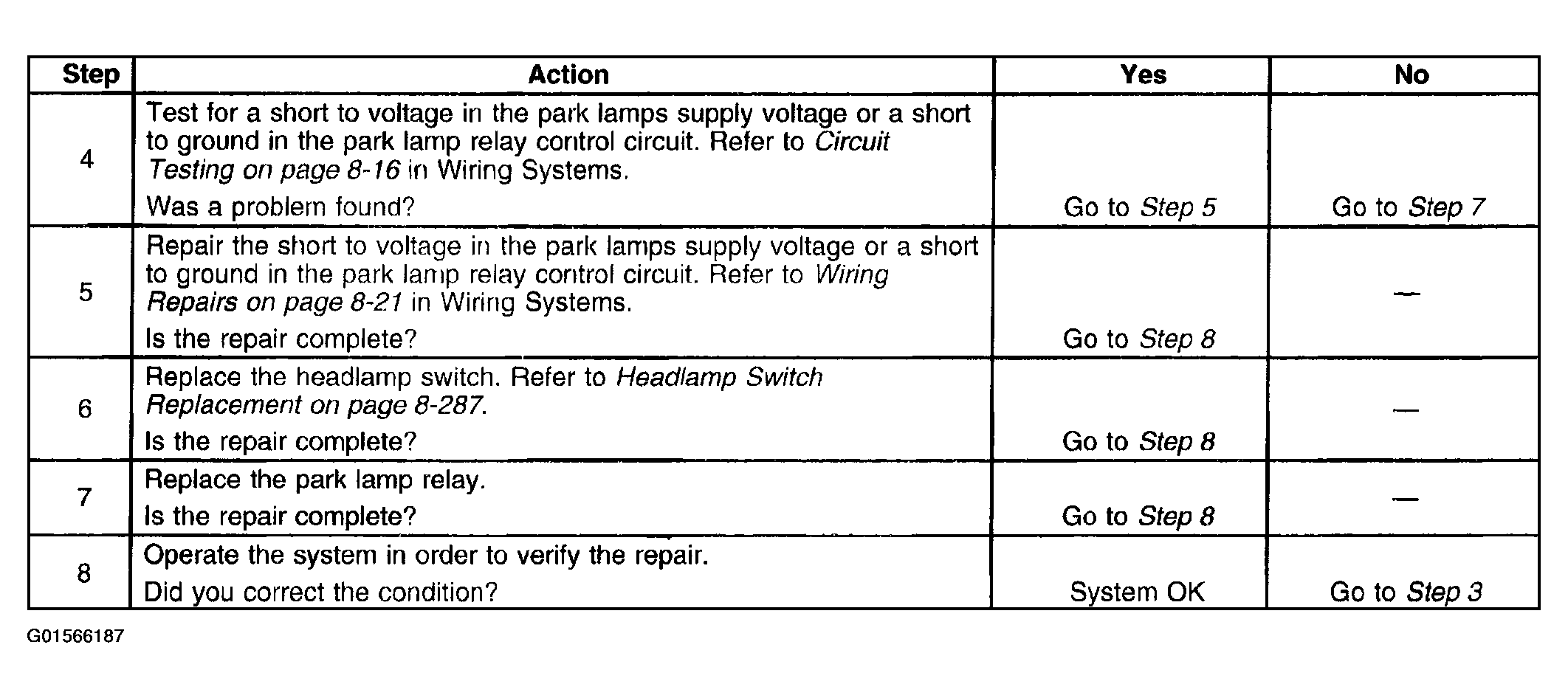

Fig 2: Tail, Marker, And License Lamps Always On (2 Of 2)
G01566187Courtesy of GENERAL MOTORS CORP.
