Courtesy Lamps Inoperative

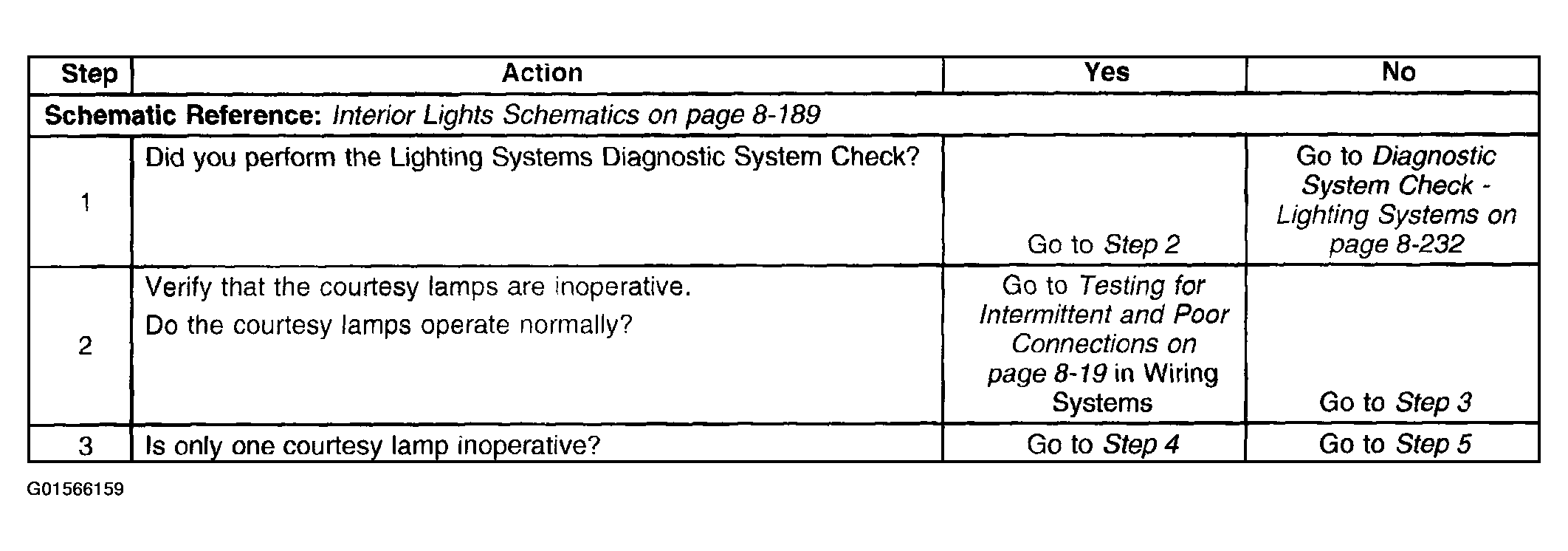

Fig 1: Courtesy Lamps Inoperative (1 Of 3)
G01566159Courtesy of GENERAL MOTORS CORP.

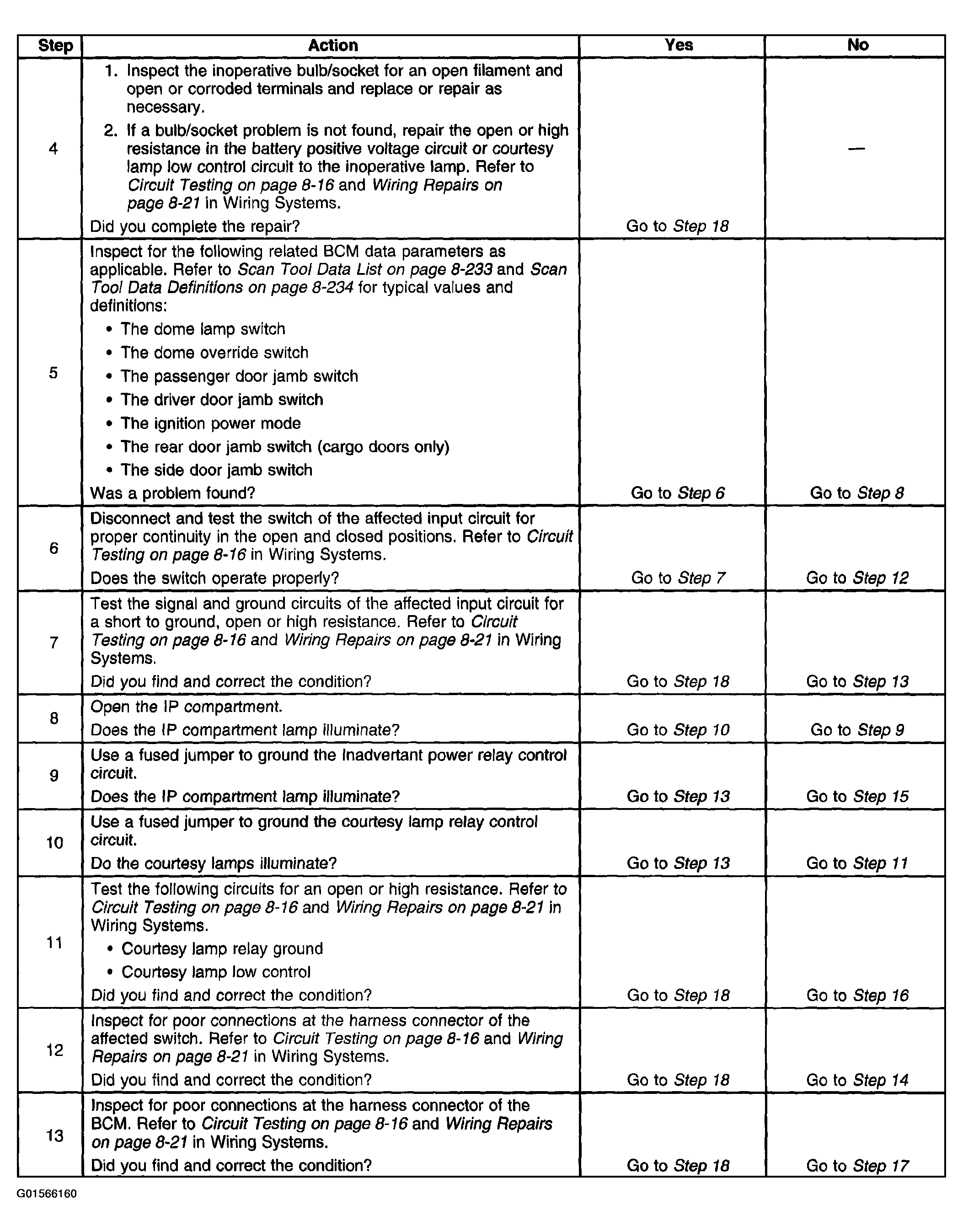

Fig 2: Courtesy Lamps Inoperative (2 Of 3)
G01566160Courtesy of GENERAL MOTORS CORP.

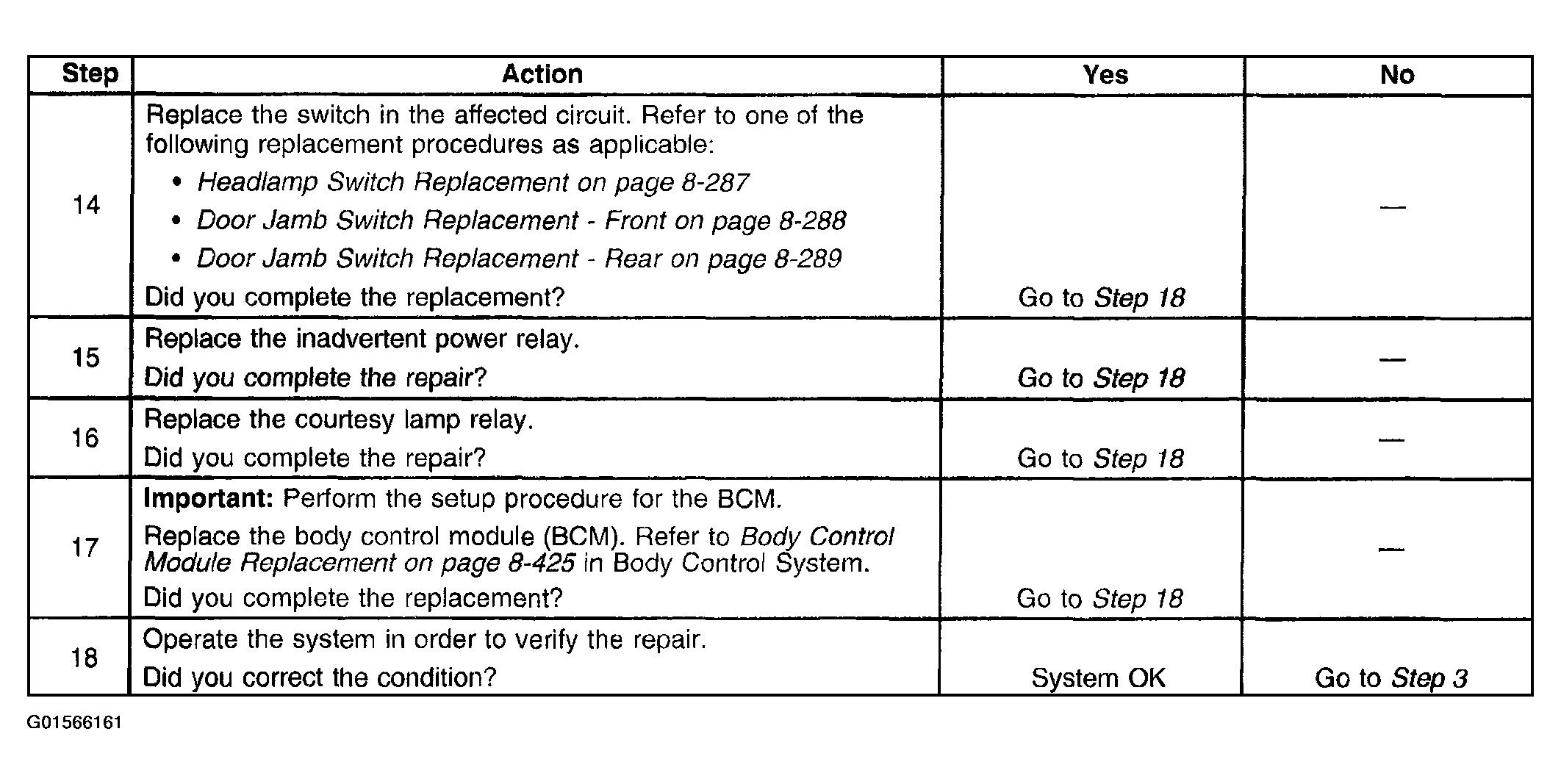

Fig 3: Courtesy Lamps Inoperative (3 Of 3)
G01566161Courtesy of GENERAL MOTORS CORP.
