Courtesy Lamps Always On

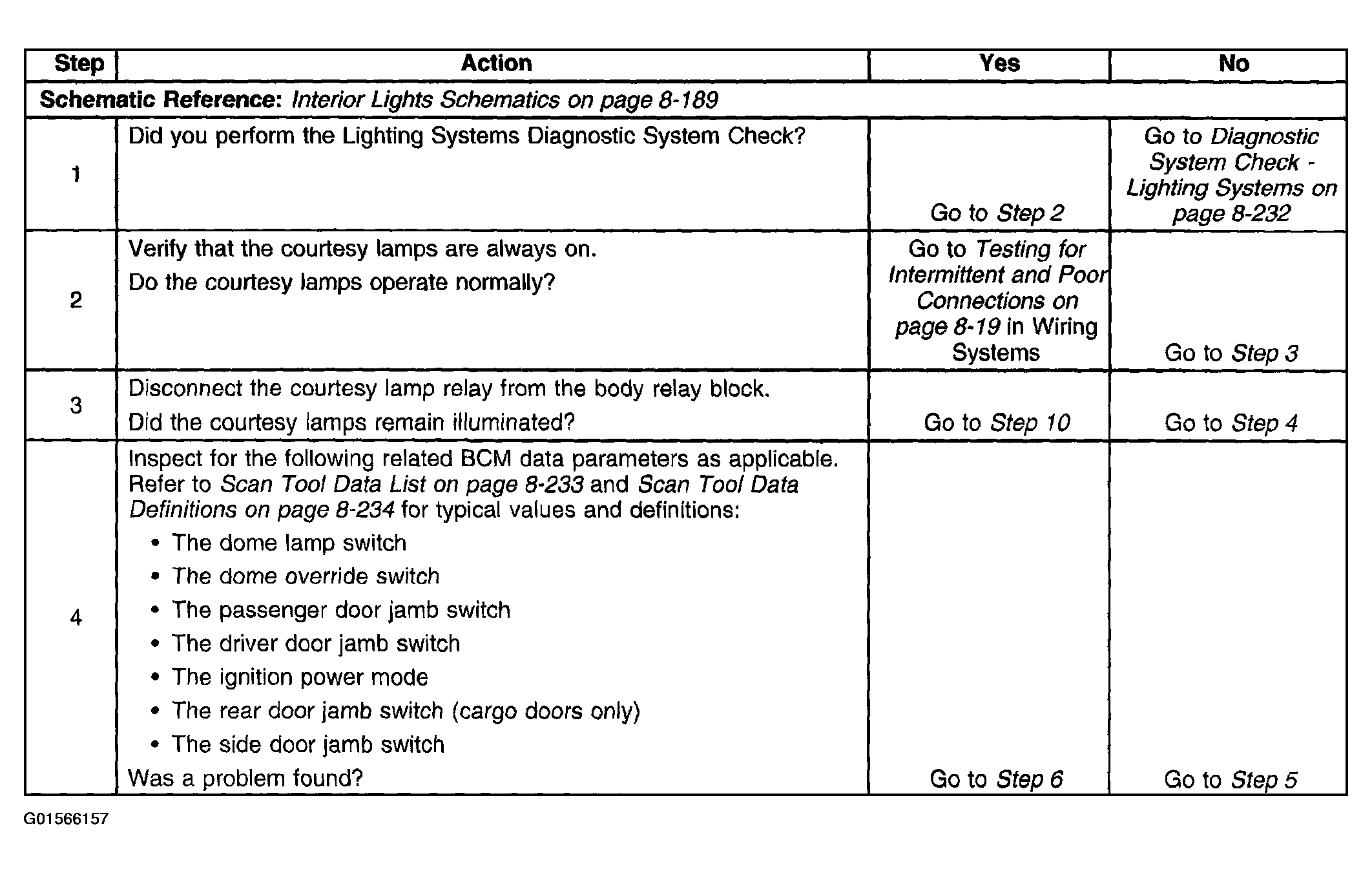

Fig 1: Courtesy Lamps Always On (1 Of 2)

G01566157

Courtesy of GENERAL MOTORS CORP.

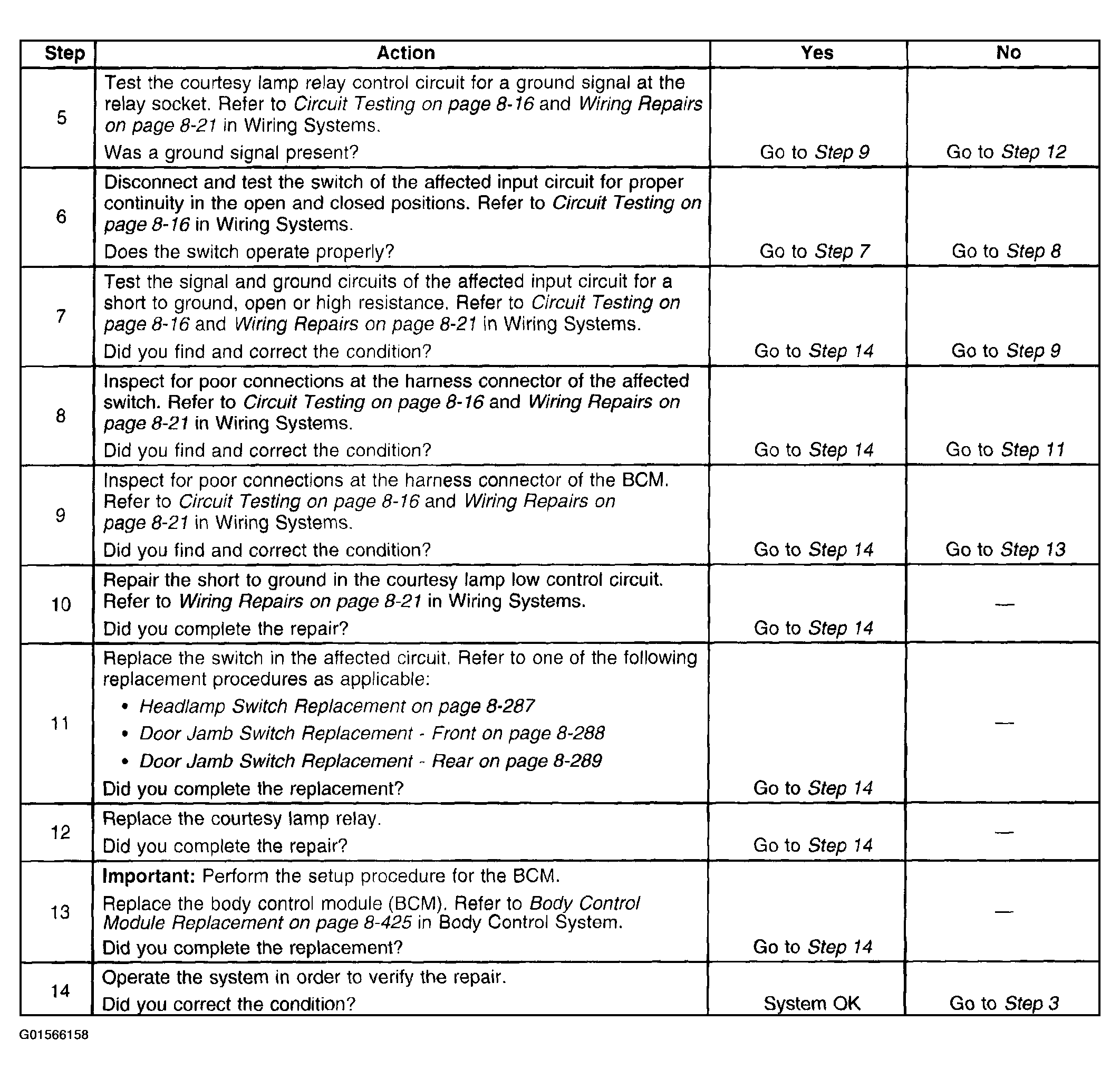

Fig 2: Courtesy Lamps Always On (2 Of 2)

G01566158

Courtesy of GENERAL MOTORS CORP.
