Radio/Audio System Schematics

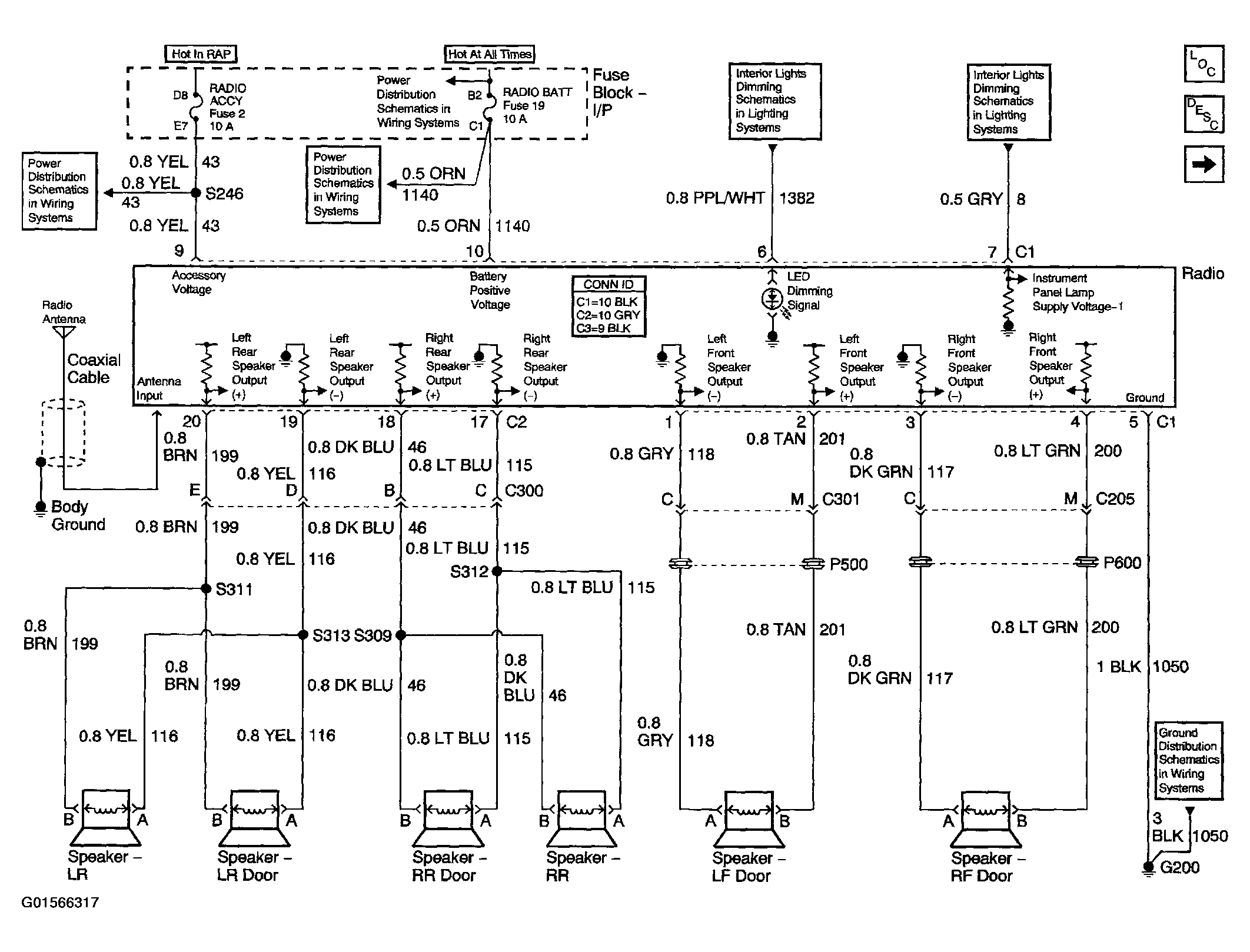

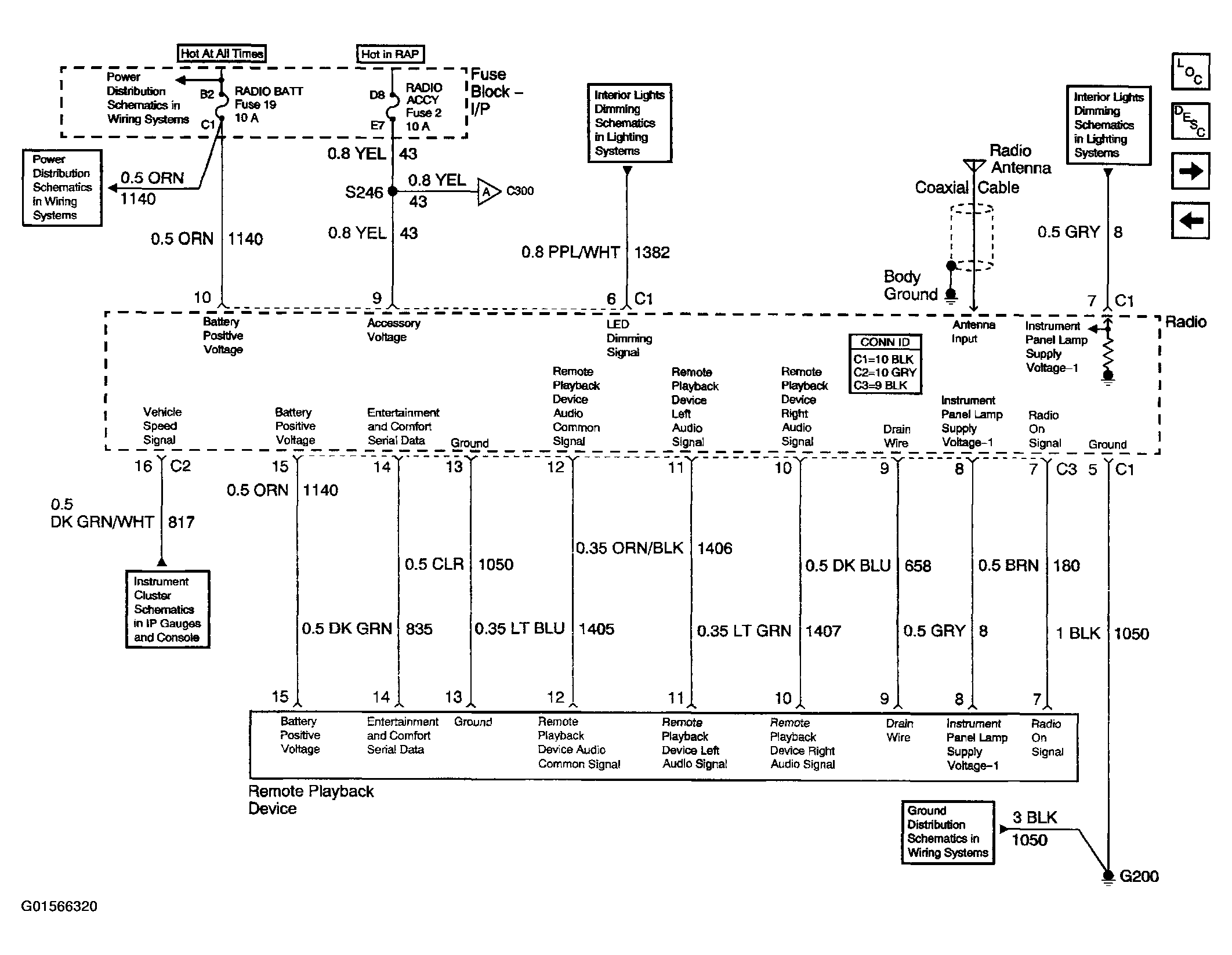

Fig 1: Base Radio

Courtesy of GENERAL MOTORS CORP.

Fig 2: Power And Ground (Premium W/O RSA)

Courtesy of GENERAL MOTORS CORP.

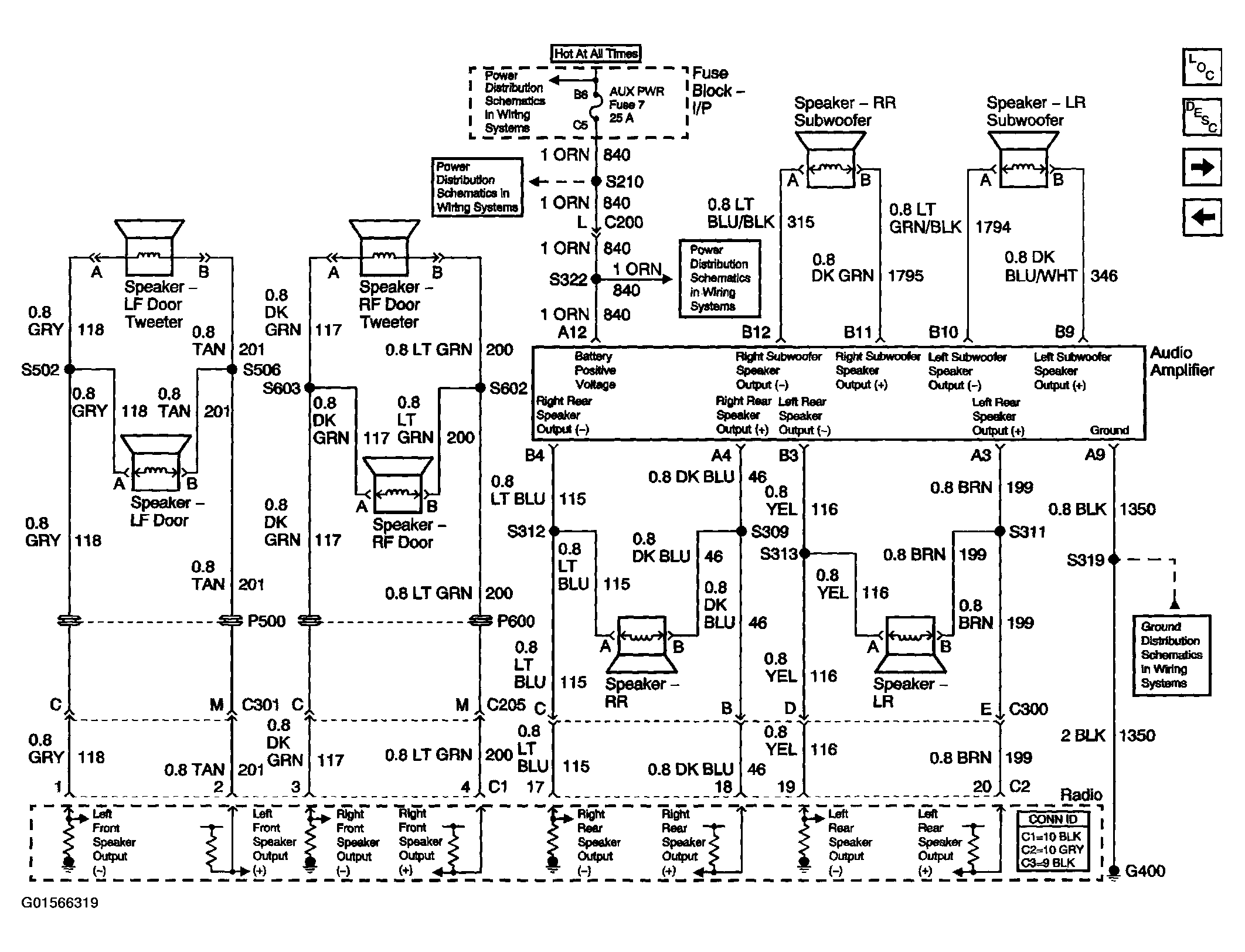

Fig 3: Speakers And Sub-Woofers (Premium W/O RSA)

Courtesy of GENERAL MOTORS CORP.

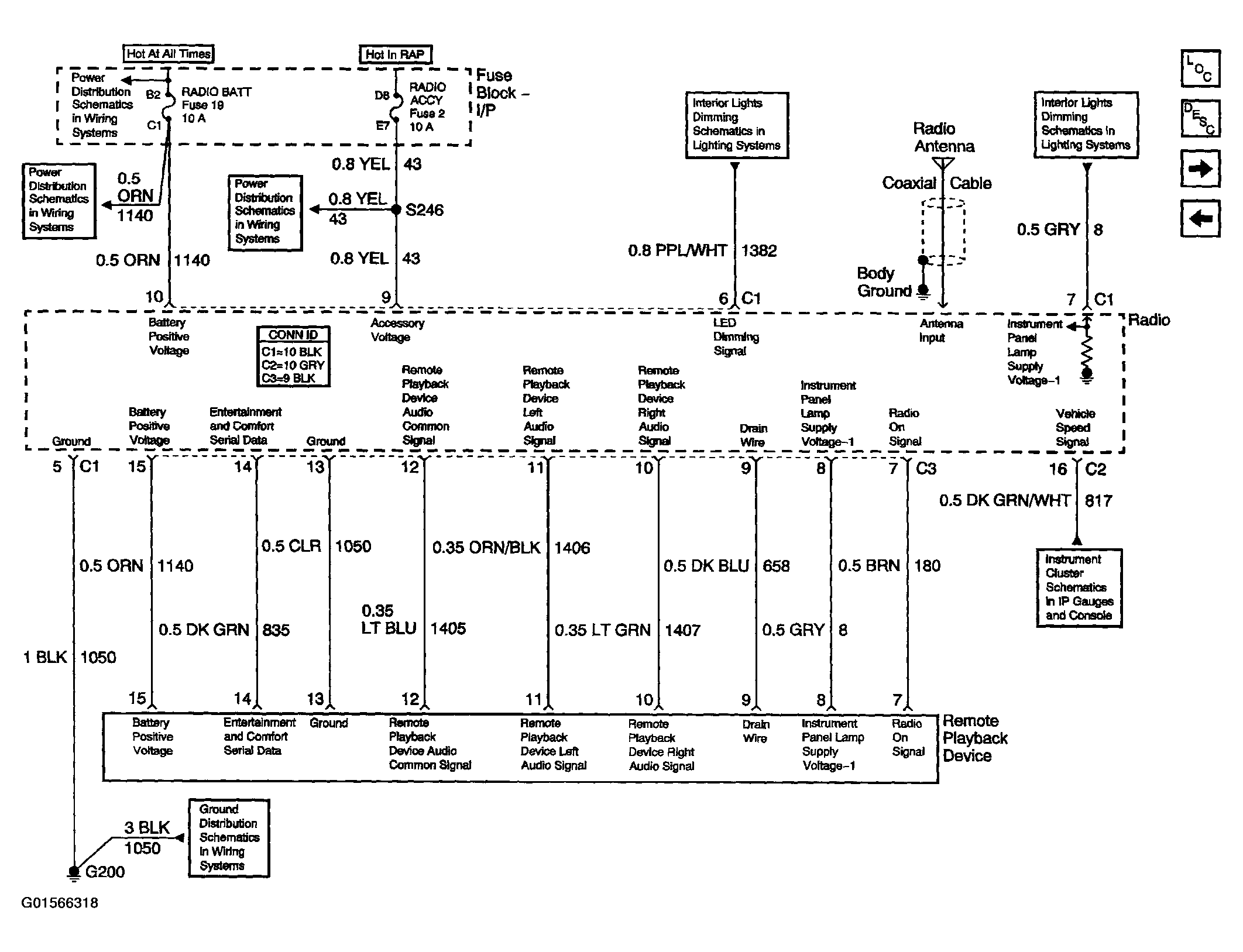

Fig 4: Power And Ground, Remote Playback Device (Premium W/ RSA)

Courtesy of GENERAL MOTORS CORP.

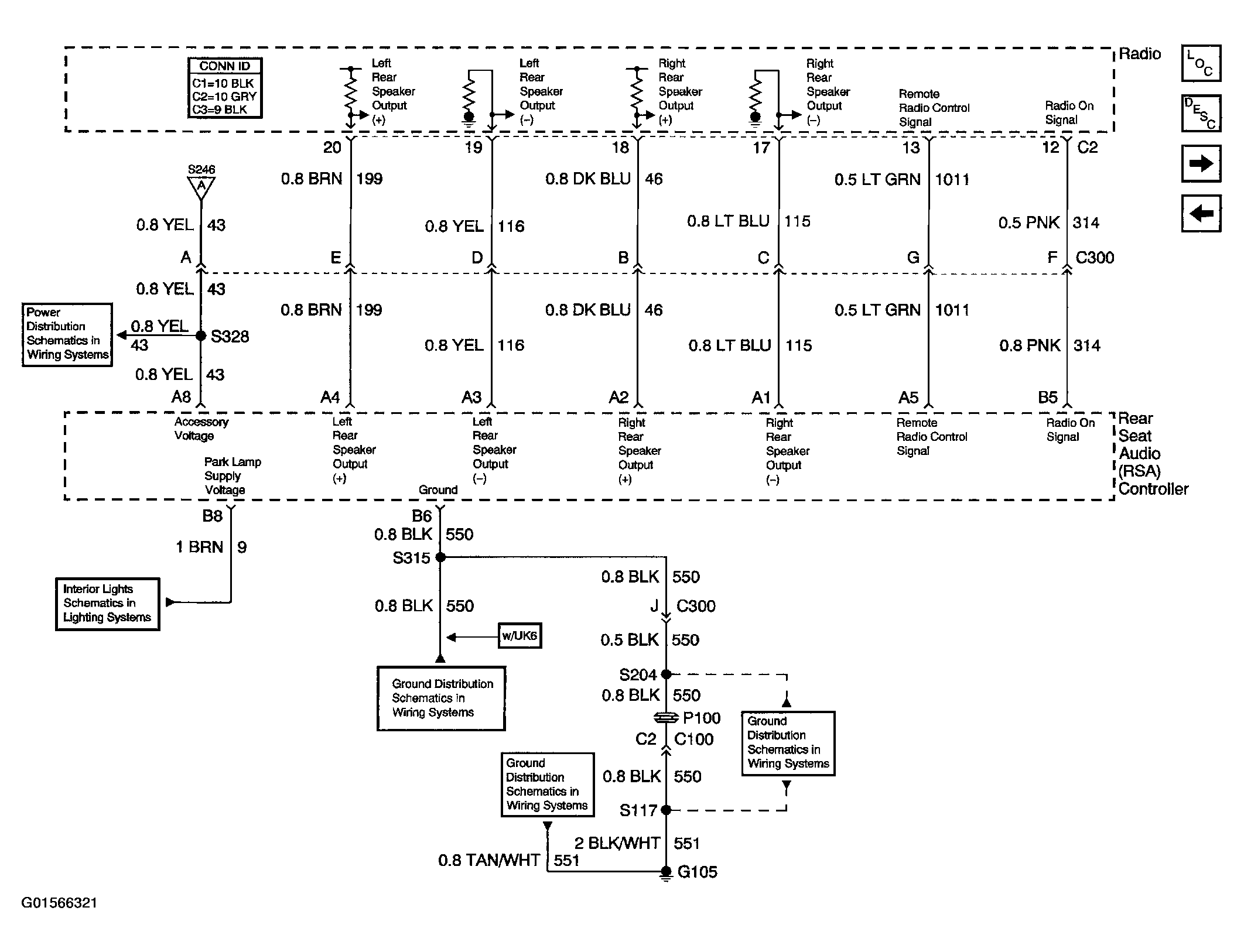

Fig 5: Rear Radio Control Module (Premium W/ RSA)

Courtesy of GENERAL MOTORS CORP.

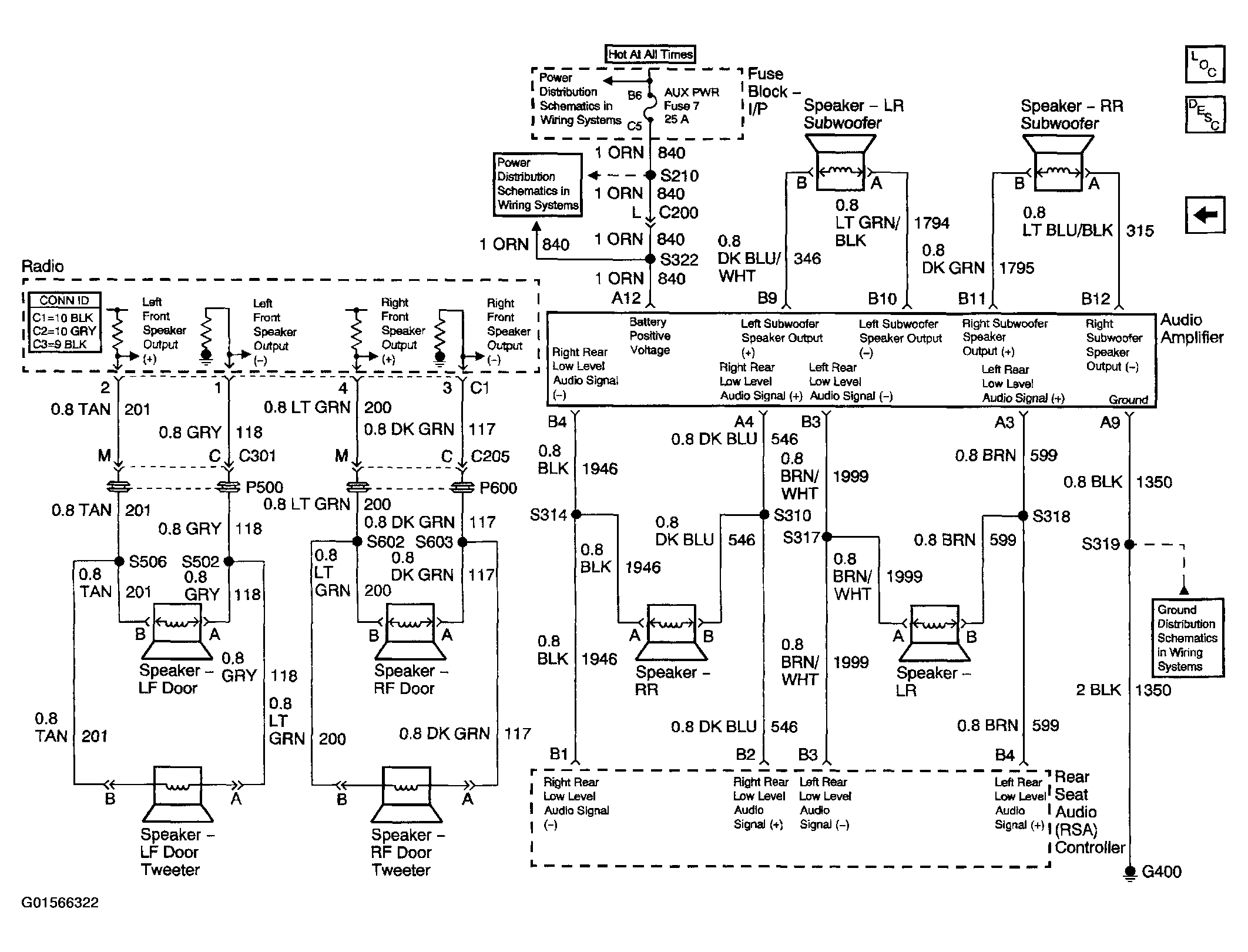

Fig 6: Speaker And Sub-Woofer (Premium W/ RSA)

Courtesy of GENERAL MOTORS CORP.
