Removal Procedure

  1. Gently pry the rear speaker grille from the trim panel using a suitable flat-bladed tool.
  2. Remove the speaker mounting screws.
  3. Remove the rear speaker from the panel.
  4. Disconnect the electrical connector.

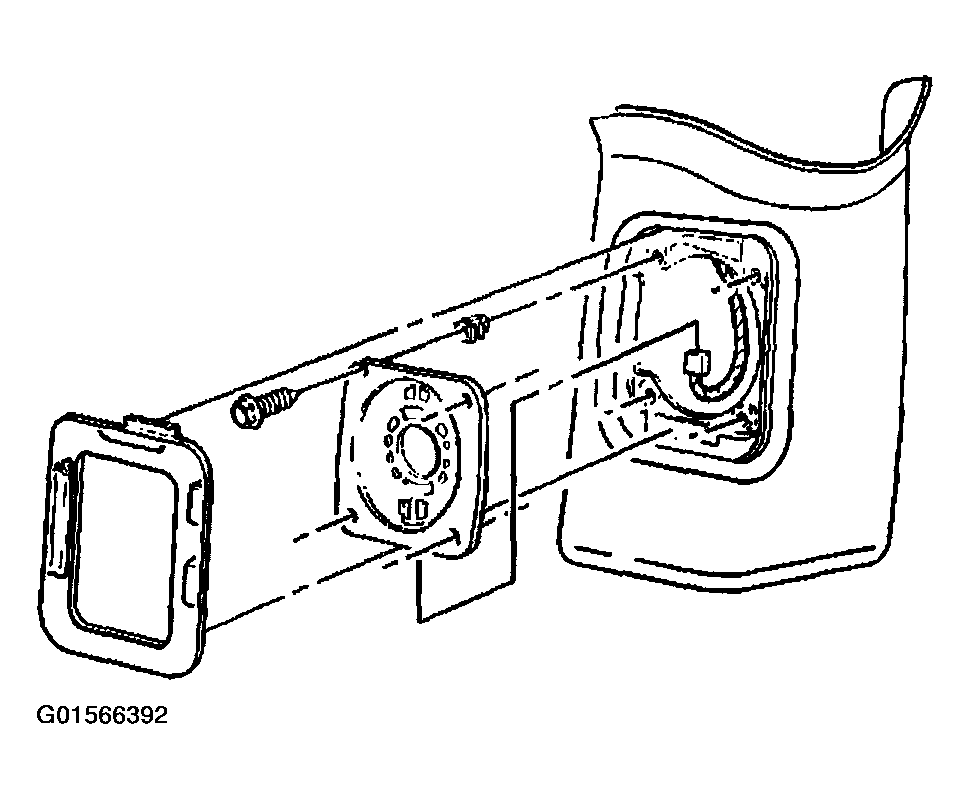

    Fig 1: Removing Speaker - Rear Pillar
    G01566392Courtesy of GENERAL MOTORS CORP.
