Installation Procedure

  1. Connect the electrical connector.
  2. Install the rear speaker to the trim panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the speaker mounting screws.

    Tighten

    Tighten the speaker mounting screws to 2 N.m (18 lb in).

  4. Verify component operation.
  5. Install the rear speaker grille to the trim panel.

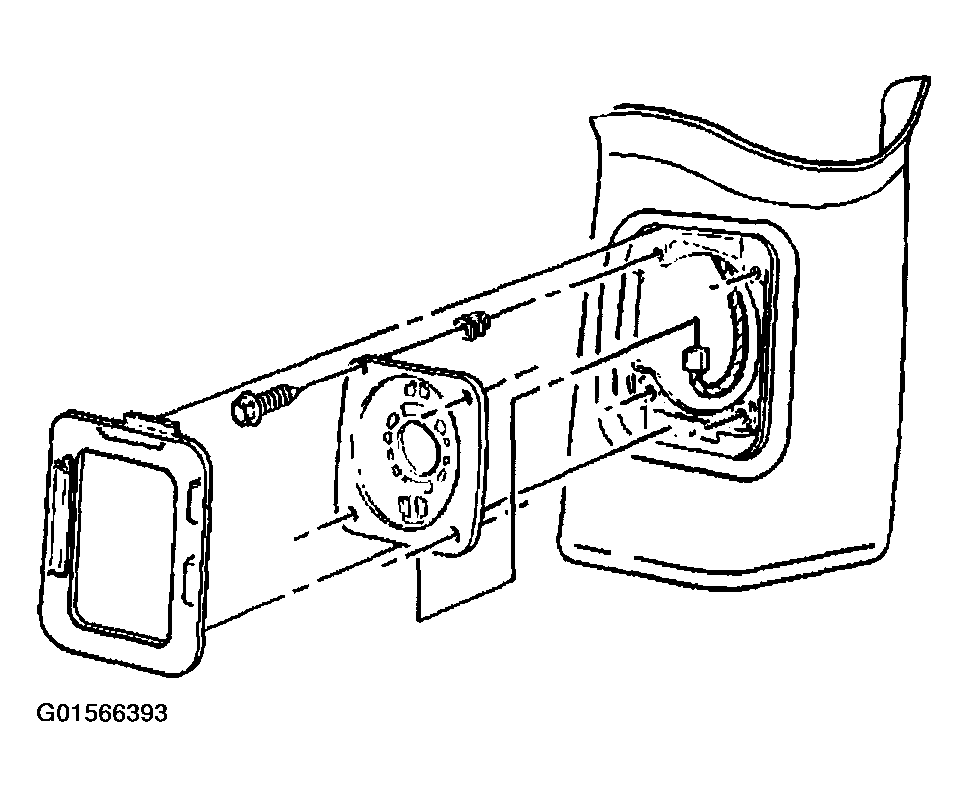

    Fig 1: Installing Speaker - Rear Pillar
    G01566393Courtesy of GENERAL MOTORS CORP.
