Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS) or TRIM PANEL REPLACEMENT - REAR DOOR (E54) in Body Rear End.
  2. Remove the rivets that retain the speaker to the door.
  3. Disconnect the electrical connector from the speaker.
  4. Remove the speaker from the door.

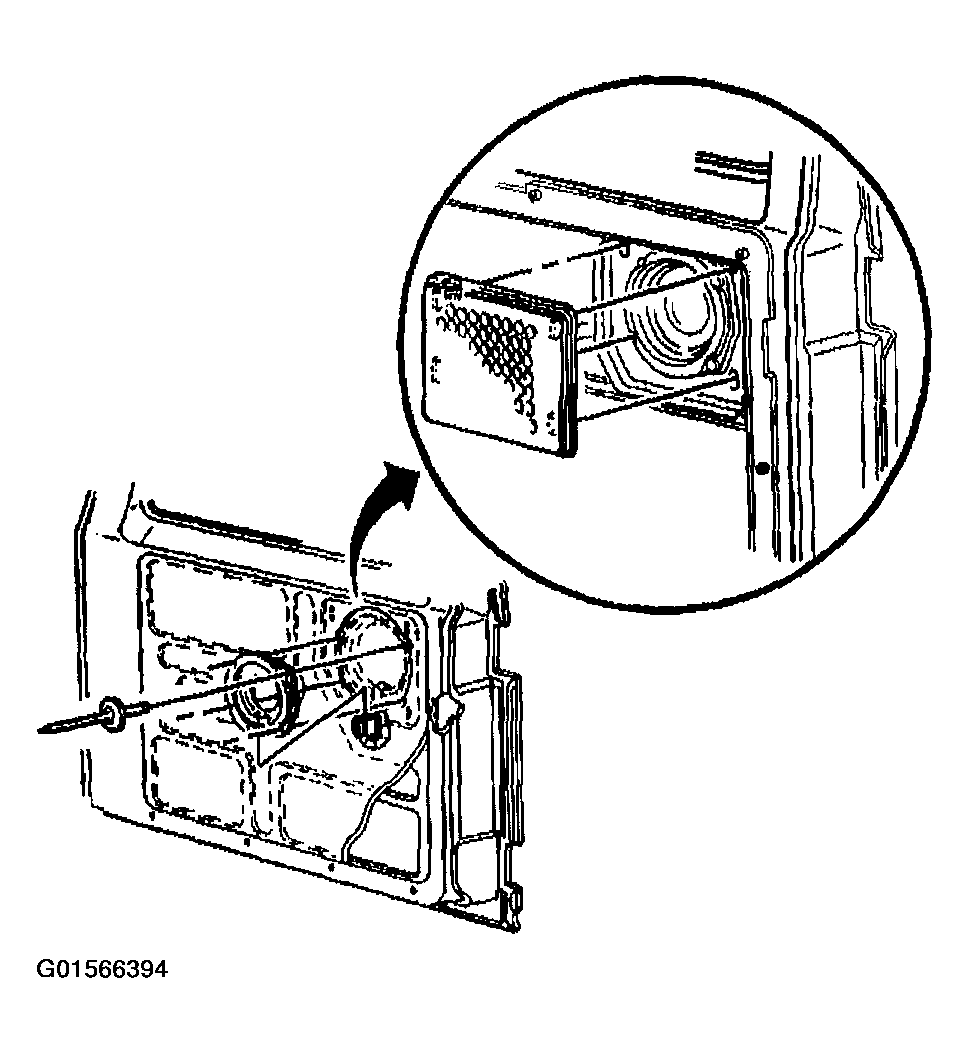

    Fig 1: Removing Speaker - Rear Door
    G01566394Courtesy of GENERAL MOTORS CORP.
